2015 home appliance 1pole 3 way rotary switch
- 0 per Month
- Shenzhen
You May Like
-
26mm rotary switch band switch heavy torque
-
High rotation torque 17mm position current selector rotary switch
-
3 Speed fan digital rotary selector switch
-
26mm Rotary switch for oven/ stove/ cooker and home appliance
-
RS17 17mm 4 positions 2 poles rotary switch
-
26mm 6 position rotary electric household switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | USE | |
| Model Number | RS1702-H7.7E2-13.5F5.5-1D8 | Max. Current | 0.3A | |
| Max. Voltage | DC 16V | Mechanical Life | 30,000 cycles |
Product Description

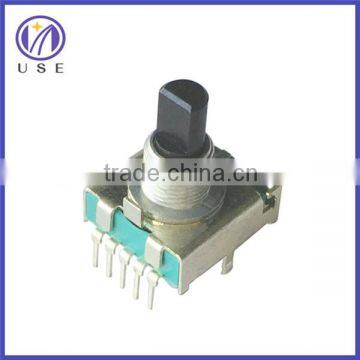

2015 home appliance 1pole 3 way rotary switch
| Feature | Rectangular-shaped,automatic mounting type; | |
| High tactile feedback,various type with bushing avilable; | ||
| Insulated shaft or metal shaft type are available; | ||
| Thin type encoder with vertical push on switch; | ||
| Recommended application | Audio equipments; | |
| Video equipments; | ||
| Household equipments; | ||
| Mode selection for measurement instruments; | ||
| Part number: | RS17 | |
| Type: | Rotary; | |
| Mounting direction: | Horizontal type,Vertical Type | |
| Shaft types: | Plastic; | |
| Length of the shaft: | 10mm,12mm,15mm,20mm. | |
| Sections: | available: 2.3.4.5.5.7.8; | |
| MOQ: | 1000pcs. | |
| Electrical Performance | Rated power: | DC16V 0.3A Max. |
| Poles: | 1, 2 ; | |
| Contact resistance : | 100mΩ Max. | |
| Insulation resistance: | 100MΩ min. 250V DC | |
| Voltageproof: | 300V AC for 1 minute | |
| Mechanical Performance | Changeover angle: | 30±3° |
| Rotational torque: | 200 to 700 gf.cm | |
| Stopper strength: | 5.0 kgf.cm Min | |
| Push-pull strength: | 7.0 kgf.m at 10 sec | |
| Solder heat resistance | Manual soldering: | 300°C max. 3s max. |
| Dip soldering: | 260±5°C, 5±1s | |
| Durability | Operating life: | 20,000 cycles |
| Storage temperature: | -40°C to +85°C | |
| Operating temperature range : | -30°C to +80°C | |
250 pcs in a styrofoam box, 2000 pcs in a carton.
FOB Shenzhen or Guangzhou
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
Dongguan Unionstar Electronic Co., Ltd was established in 2001 in Dongguan City, Guangdong Province, China. Specialized in encoders, rotary encoders, rotary encoder switches, multi-way rotary switches, tact switches, potentiometers, etc. They are widly used in loudspeckers, DVD player, car audio and vedio, GPS, radio, coffee machine, cooker, medical equipment, sport equipment, etc. In order to keep improving the quality of our products, we have been awarded the certificate of ISO9001:2008, and will offer our customers the best quality products and services.
