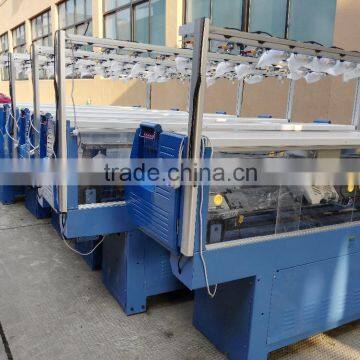

52 Inches Single System Automatic Sweater Knitting Machine

Machine details:

1. single carriage single system

2. 52 inches

3. 7G 9G 12G 14G 15G

4. motors control cam

5. Ruineng & Hengqiang system

Product Specification :

Knitting Gauge: 7G 9G 12G 14G 15G

Knitting Range: 44,52,60,80 (Inches)

Knitting Speed: Controlled by servo motor, 32 sections speed optional, max 1.2M/S.varies according to gauge and knitting condition

Knitting System: Single carriage with single systems

Knitting Function: Knit,miss,tuck,transfer,pointel,intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns

Racking: Controlled by servo motor racking within 2 inches and with fine adjusting function.

Protection: The machine will automatically alarm if yarn-breaking, knots ,floating yarn, rewinding of knitting, fail of racking needle, breakage error and programming occur.

Encoder: Advanced encoder is used to observe the needle.

Transfer: motors control cams to work.single system can achieve to transfer,miss,tuck and knit.

Stitch system: Controlled by stepping motor, 32 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.

Sinker system: Controlled by stepping motor, adjustable to different knitwear, have various results of shapping and patterns.

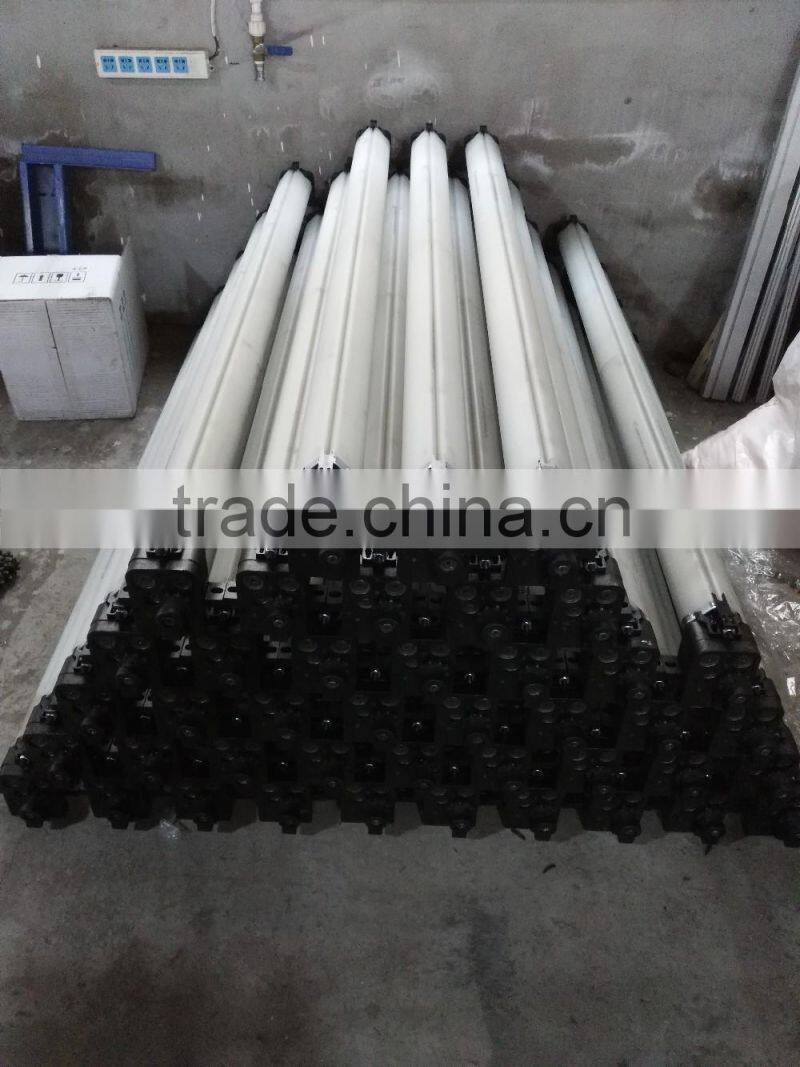

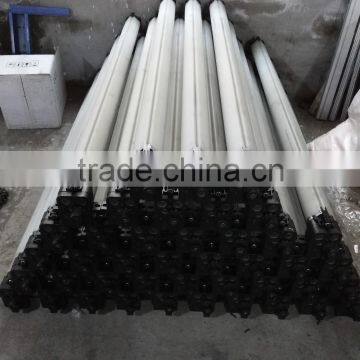

Takedown roller: Programmed instruction,controlled by marching motor, changeable 32 levels and selectable scope: 0-99.

Yam feeders: 6 Yarn carriers on each side of 3 guide rails, shiftable on any needle
