used for audio incremental rotary encoder 11mm encoder with switch
- 100000 Piece / Pieces per Month
- Shenzhen port
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | USE | |
| Model Number | EC11 | Max. Current | A,B lead 5mA Max,C lead 10mA Max | |
| Max. Voltage | 5V | Mechanical Life | 30,000 ± 200 cycles |
Product Description

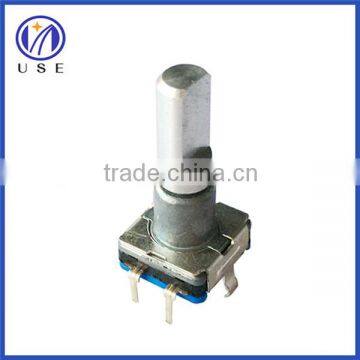

used for audio incremental rotary encoder 11mm encoder with switch
Mechanical characteristics | |
| ITEM | SPECIFICATIONS |
| Total rotational angle | 360° |
| Click Torque | 30~150gf.cm |
| Push-Pull Strength of Shaft | Pull:8.0kgf Push:8.0kgf for 10s |
| Shaft Wobble | 0.7xL/30mm P-P Max L:shaft length |
| Bushing Nut Tighten Strength | 8.0kgf.cm Min |
| Shaft play in axial direction | 0.4mm |
| Shaft play in rotational wobble | 5° Max |
| Travel of switch | 0.5 0.3mm |
| Operation | 400~600gf.cm |
| Electrical characteristics | |
| ITEM | SPECIFICATIONS |
| Rated Power | DC 5V; A,B lead 5mA Max; C lead 10mA Max |
| Output signal | 2 signals: A ,B |
| Resolution | 15/20pulses/360° |
| Resistance between terminals | 1Ω Max |
| Phase difference | T1,T2,T3,T4 more than 4ms |
| Sliding noise | t1,t3≤5ms;t2≤3ms |
| Insulation resistance | 100MΩ Min at DC250V |
| Dielectric strength | 1minute at AC 300V |
| Endurance characteristics | |
| ITEM | SPECIFICATIONS |
| Rotational Life | Workable after 30,000 cycles |
| Push-life | Workable after 20,000 times |
| Storage Temperature Range | -40℃~+85℃ |
| Operating Temperature Range | -10℃~+70℃ |
| Relative humidity/RH | 25 %~85% |
( Ultra-small size precision encoders,incremental and absolute type is available. Apply to handheld walkie-talkie,a small intercom system center,car stereo,etc.)
Packaging: 250 pcs in a polyfoam, 2000 pcs in a carton
Shippment: By Air, express or by sea.
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
| Q: | What is your MOQ of this item? |
| A: | 500pcs. |
| Q: | Where is your loading port? |
| A: | Shenzhen port |
| Q: | What is your payment term? |
| A: | TT in advance |
| Q: | What is the lead time? |
| A: | Normally 10-15 days. |
| Q: | What is your company’s available production capacity? |
| A: | 30,000pcs/day. |
| Q: | Could you provide sample? |
| A: | Of course,we are glad to provide free sample to you. |
