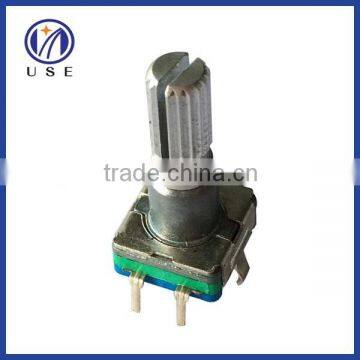

11mm DVD audio rotary encoder switch

Specifications

11mm DVD audio rotary encoder switch

11mm DVD audio rotary encoder switch.Universal encoder switch, metal and plastic shaft is available, pin type, can be screwed,SMD type is available with key switch encoder, the structure is more reliable and better quality.

Application: multimedia car audio control,CD/DVD stereo control,household appliances control,etc..

_{Detailed Description:}

Insulated shart rotary encoder series with 360°rotational angle.

1.General

1.1 Scope>This specification applies to 11mm size low-profile rotary encoder(incremental type) for microscopic current circuits,used in electronic equipment

1.2Standard atmospheric conditions>Unless otherwise specified,the standard range of atmospheric conditions for making measurements and test  is as following limits:

Ambient temperature:    15°C      to  35°C

Relative humidity       :    25%       to   85%

Air pressure                 :    86kpa   to  106kpa

1.3>Operating temperature range:    -10°C      to   70°C

1.4> Storage temperature range    :    -40°C     to    +85°C

2.Construction

2.1>Dimensions Refer to attached drawing

3.Rating

3.1>Rated voltage: DC 5V

3.2>Maximum operating current (resistive load); Each lead: 0.5mA(MAX 5mA; MIN 0.5mA);Common lead:lmA(MAX  10mA; MIN 0.5mA)

4.Application  Nots

4.1>Avoid storing the products in a place at high temperature,high humidity and in Corrosive gases.Please use this product as soon as possible with 6 months limitation.If any rimainder left after packing is opened,please store it with proper moistureprooting,gasproofing etc.

4.2>  The encoder pulses count method should be designed with taking operating speed,sampling time and design  of the microcomputer softwae into cosideration.

4.3>With this products the detent position output consnlt fig.5--1.Therefore make the A phase the reference at the soft ware design stage.

4.4> At design of the pulse count process.Using the C/R filter circuit is Recommended.(fig.1)

4.5> Care must be taken not to expose this product to water or dew to prevent possible problem in pluses output waveform

 Styrofoam protected, 2000 pcs in a carton box.

FOB Shenzhen

1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.

2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.

3>Quick and exact lead time.

4>We have QC team for every procedure and 100% satisfaction guaranteed.

5>OEM and ODM is welcome

6>Any questions and requirements ,we will reply you within 24 hours.
