2015 High Speed Stainless Steel Carbon Steel 300W 500W 1000W Fiber Laser Cutting Machine
- Shanghai/Shenzhen
- T/T Credit Card
You May Like
-
Laser Machine for Metal Cutting/Stainless Steel,aluminum,carbon Steel Fiber Laser 1000w Cutting Machine
-
Huahai Laser 500w 1000w Stainless Steel Aluminum Carbon Steel Galvanized Plate Fiber Laser Cutting Machine For Metal Quality Choice
-
500w / 1000w/2000w Fiber Metal Laser Cutting Machine/laser Cutting Equipment
-
500W 1KW 2KW 3KW Sheet Metal Laser Cutting Machine | Fiber Laser Cutting Machine Price
-
Huahai High Efficiency Fiber Laser Metal Cutting Machine
-
500W Fiber Laser Cutting Engraving Machine for 6mm SS
Product Details
| Condition | New | Laser Type | Fiber Laser | |
| Applicable Material | Metal, Other, Metal, stainless steel/silver/gold/brass | Cutting Thickness | 0.2-8mm Stainless steel | |
| Cutting Area | 1300*2500mm | Cutting Speed | 8m/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | CNC | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Hubei, China | Brand Name | HUAHAI | |
| Model Number | HB-500W 1000W | Certification | CE, ISO, Other, CE, ISO, FDA | |
| After-sales Service Provided | Overseas service center available |
Product Description

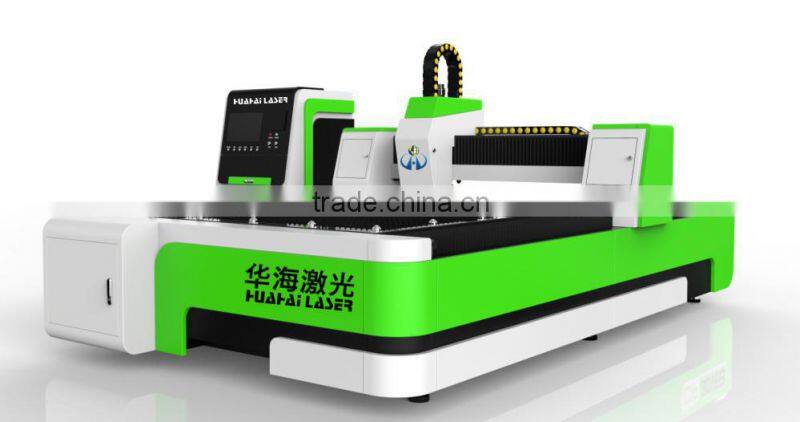

High speed stainless steel carbon steel 300W 500W 1000W fiber laser cutting machine
Fiber Laser Metal Cutting application:
It has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, metal pipe,spectacle frame, etc, which have brought customers a high ratio of interest.
Glasses,jewelry,chassis and cabinet,lamp&lanterns,metal ware,hardware,precision machinery,auto parts, elevator,nameplate,advertisement,electronics,toys and other industries.
Fiber Laser Metal Cutting apilicaple material
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe.
Technical Parameters
Model | HB3015-300 | HB3015-500 | HB3015-1000 |
Laser Source | FL Fiber Laser Source | ||
Laser Power Output | 300W | 500W | 1000W |
Max.Positioning Speed | 15m/min. | 18m/min | 24m/min. |
Working Area
| 3000*1500mm(Optional) | ||
Laser wave length | 1070nm | ||
Laser input power | 1.2KW | 2KW | 5KW |
Min line width | ≤0.1mm | ≤0.1mm | ≤0.125mm |
Cutting depth(up to materials) | 0.2--3mm | 0.2--5mm | 0.2-8mm |
Driving way | Imported servo motor | ||
Repeated Positioning Accuracy | ±0.01mm | ||
Vertical Length of X&Y Axis | 0.03mm | ||
Transmission Way | Gear Racking Transmission | ||
Linear Length of X&Y Axis | 0.02mm, 0.04mm | ||
Z Axis Floating Accuracy | ±0.05mm | ||
Machine Noise | <75db | ||
Cooling way | Water cooling | ||
Beam Quality | Base Mode | ||
Environment temperature | 5—35 °C | ||
Power Supply | 3 Phase/380V/50Hz | ||
Function Advantage
1. World top imported fiber laser,stable performance,the service life of key parts can reach up to 100 hours.
2. Distinguished laser beam quality, which made cutting line more precise,working efficiency higher,processing quality better.
3. Adopt fully enclosed constant temperature laser working enviroment, makig sure the stable work more effective.
4. Particular corner energy following technology,making the cutting effect of sharp corner more good.
5. Owned the Japaness advanced cutting head controlling technology, and the automatic failure alarming protective display function for cutting head, using more safely, more convenient for adjustment, an cutting more good.
6. Particular punching gas controlling technology, solving punching problem for thick plate.
7. Equiped with high precision, high responsive driver, which is suitable for fast precision cutting.
8. Equiped with automatic fuel loading system, which let the machine tool running more stable.

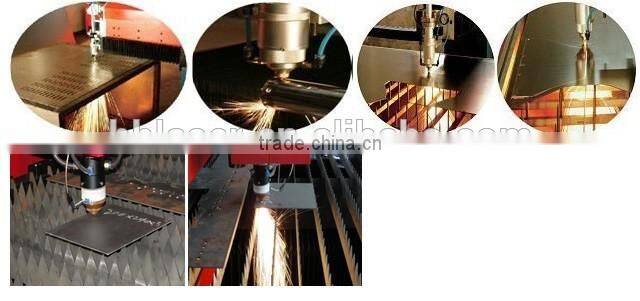

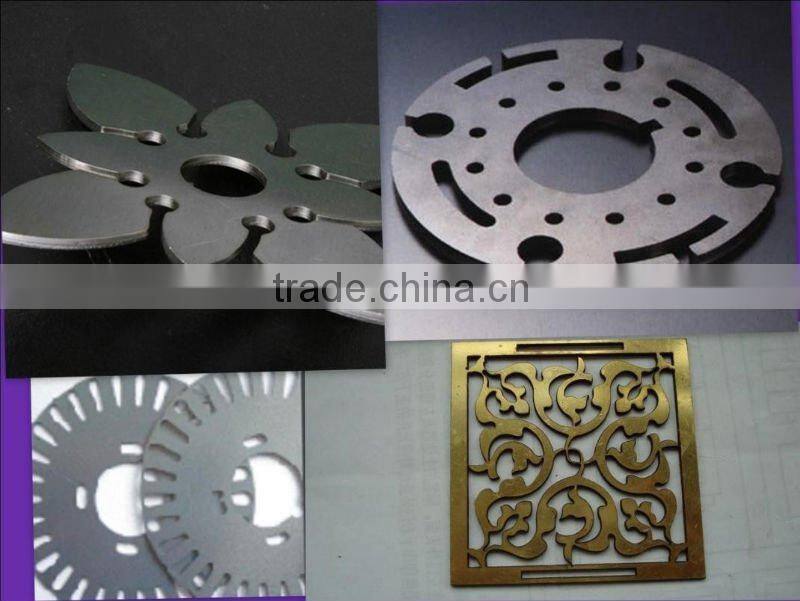

Cutting Samples
Company profile:
Wuhan Huahai Century Laser Co., Ltd. is a professional manufacturer, and a high-tech enterprise engaged in the
development and manufacture of laser engraving machines, laser cutting machines, laser marking machines,
pneumatic marking machines, complete sets of laser processing equipment, as well as bamboo & craft gifts.
We have been Export machine to USA, Brazil, Peru, Mexico, Germany, Poland, Turkey, Czechoslovakia, Ukraine,
Morocco, Syria, Iran, Pakistan, India, Indonesia etc. And all of customers are satisfying the quality and after sales
service. We win good reputation throughout the world by our service.
