Exported to Dubai Vertical Rotary Parking System

PCX TYPE vertical rotary car parking System Description

 Vertical cycle series cubic parking garage which is a mechanical vehicle parking equipment that adopt parking system doing vertical cycle movement equipment.

 Which working principle is the motor drive the transmission mechanism through gear.In the traction chain,install a parking car frame each certain distance,when the motor starts,the car parking frame doing cycle movement along with the chain.which achieve car parking purpose.

Advantage of PCX TYPE vertical rotary car parking System

1 Flexible, vertical cycle series parking system covers small area, flexible, and can be set up independently,

also can be attached into building, also can be more than one combination,small vertical cycle series parking equipment can be Installed in the living area, beside the building, save the land space.
2) Rapidly, parking car and  taking car out in short time.

3)Economically,build vertical type parking system can save the considerable cost of purchasing land, conductive to the rational planning and optimize the design,improve the comprehensive economic benefit.
4) Save electric power, vertical circulating mechanical parking system typically does not require forced ventilation, no large-area lighting, power consumption only 35% of the common underground parking garage.

Structure and sizes

Photo of vertical parking system

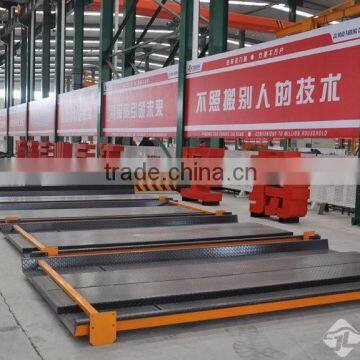

Workshop in factory

Safety Feature

 1. Photoelectric detection device for car over height and accidentally entrance of the people and cars.

 2. Fixed style anti-falling frame device

 3. Sound and light warning device

 4. Electromagnetic style anti-falling device

 5. Safety warning plate

 6. Oil cylinder top limit switch device

 7. Car blocking device on platform

 8. Phase order protection device

 9. Limit switch device

10.Sudden stop device

11.Grounding protection device of over currency,over loading, over or under voltage.

12.Lifting and sliding combined locking device

13.Hydraulic protection device

The Elevator System:

The elevator is in charged of the lifting movement of the vehicles,which mainly composed by steel structure,carriage,counter weight,drive system,guide devices,safety protection devices.

The Entrance & Exit System:

It mainly includes turn table, scanning device, voice prompts etc, that ensure the safety of users and cars, and fast accurately find the vehicle.

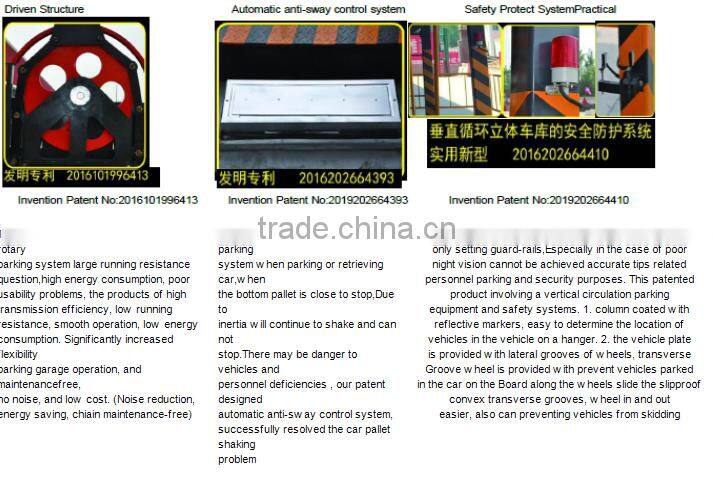

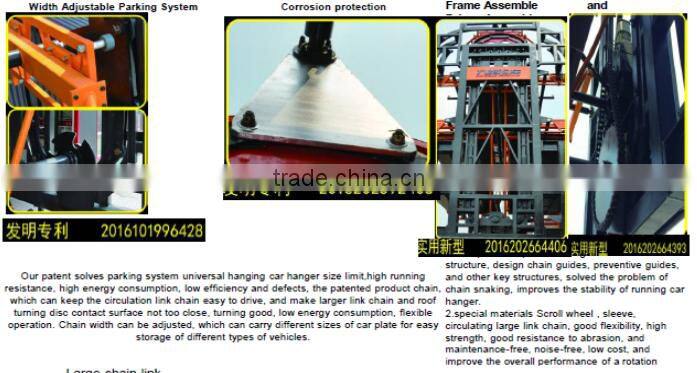

Some parts for vertical parking equipments.

Vertical cycle series parking testing

  Shipping:With 1-2monthes after deposit

  Packaging:steel frame with plastic wrap cover

Warranty:2years

Within 2years,we will send the spare parts to u for free once sothing wrong with parking system.

Service Features
I-"Complete & Integrated park solutions"
1.Excellent before-sales services
2.Flexiable garage design
3.Customized solutions
4.Manufacturing reliable products
5.Fast delivery-quick installation-final test
6.Trustworthy support and maintenance
II- "One to one lifetime close service"
1. "One to one"--Provide every customer 1 service consultant, through 12 service stations.
2. "Lifetime"--To the equipments, to the customers.
3. "Close"--Besides the related affairs, concerned about lives of customers,to form "close friend"
relationship.
III-"Long term win-win corporation"
1.With exceptional quality,win the customer's credit & reliablity.
2.Offer customers all-around tailor-made solutions to satisfy user's diverse requirements, build
long-term corporation,accumulate rich experience.

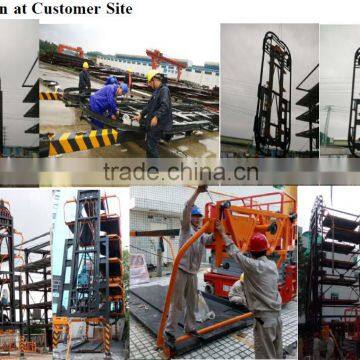

Installation
If necessary,we will send our engineer oversea to help you install.You need pay for the round
trip ticket fee,and also need to pay USD50/man/day for the engineer as labour fee.

Shandong Jiulu Parking Equipment Co.,ltd. Company Introduction

Shandong Jiulu Parking Equipment Co.,ltd.Mainly engaged in:”QTZ series  tower crane,SC construction elevator,

passenger elevator,material hoist,Intelligent cubic parking garage, ZLP series suspended platform as well as

other construction machinery products,include R & D, manufacturing, sales and service.
