Polyester Needle dust collector filter bag

FOB Price

USD $1 - $2 / Piece

100 Pieces(Min.Order)

Supply Ability 300000 Piece / Pieces per Month
Port Shanghai port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	EAST
Model Number	PP-PE (01-05)	Type	Pocket Filter
Usage	Dust Filter	Material Of Bag	Other, PP,PE,PO,NMO,PEM,PES

Product Description

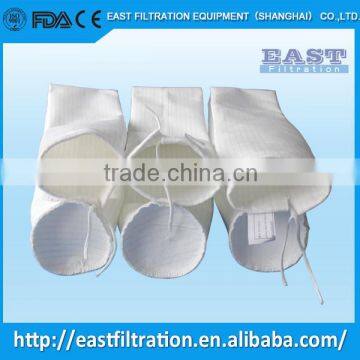

Polyester Needle Dust Filter Bag For Power or Coal Industry

Polyester needled felt non-woven filter media using acupuncture techniques, and by the heat-setting and other treatment methods are made widely used industrial catch dust, dust control and so on. Polyester needled felt has good air permeability and after heat treatment, surface smooth, it is not easy deformation, easy cleaning.

The technical data of Polyester needled felt

Article Name		Polyester needled felt
Ingredients	Fiber	100%PET
Ingredients	Scrim	100%PET
Weight	g/m²	500
Thickness	mm	1.7
Density	g/m³	0.29
Permeability	L/dm².min	130
Tensile breaking strength(N/5cm)	Warp	≥1200
Tensile breaking strength(N/5cm)	Weft	≥1500
Elongation @200N/5cm	Warp	≤5
Elongation @200N/5cm	Weft	≤5
Maximum shrink of 90 mins	Temperature(°C)	150
Maximum shrink of 90 mins	%	≤1
Service Temperature(°C)	Continuous	130
Service Temperature(°C)	Instant	150
Finishing		Heat setting, Singeing, calendaring

Polyester Needle Dust Filter Bag For Power or Coal Industry

Techical Specificati

Type	Dia		length		Max flow M3/Hr	Filter area M2	Volume (L)
Type	inch	mm	inch	mm	Max flow M3/Hr	Filter area M2	Volume (L)
1#	7	177.8	17	431.8	20	0.25	8
2#	7	177.8	32	812.8	40	0.50	17
3#	4	101.6	9	228.6	6	0.09	1.3
4#	4	101.6	15	355	12	0.16	2.5
5#	6	152.4	20	508	18	0.20	3.8

APPLICATION

Chemicals Industry: plastics industry,dry,paints,packing,tonner,etc

Minerals industry:flour ,cement industry,coal mill,dryer system

Metals industry: iron and steel industry,coal-fired power,etc

Power generation and incineration: ferroalloy,Coal-fires power boilers,incinerator etc
