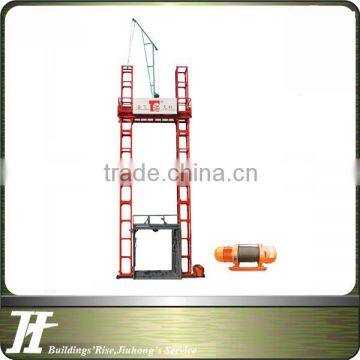

Sse160 Self-propelled Jack Gantry Lift For Short Building
- 2000 Set / Sets per Month
- Tianjin China
- T/T
You May Like
-
SSE160 Construction Elevator
-
SSE160 Construction Elevator/Self-propelled Jack Gantry lift for Building Cargo
-
SSE160 Self-propelled jack gantry lift supplier
-
Driven By Eelectric Hoist Sse160 Construction Equipment/jack Gantry Lift
-
SSE 160 Jack Gantry Lifter/ Material Lifting Elevator
-
1.5ton SSE 160 Jack Gantry Lifter For Material
Product Details
| Place of Origin | Shandong, China | Brand Name | JIUHONG | |
| Model Number | SSE160 | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Electric Motor | Rated Loading Capacity | 160kg | |
| Min. Lifting Height | 21m | Max. Lifting Height | 78m | |
| Table Size | 3.5*1.7m | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. Equipped with self-lifting system;2. Adopting the attached rod instead of wind rope;
3. Stop device is available on reques
Designed Items | Parameter | ||||||
Installation Height(m) | 81 | 63 | 54 | 45 | 36 | 27 | 24 |
Lifting Height(m) | 78 | 60 | 51 | 42 | 33 | 24 | 21 |
Max. Lifting Capacity(t) | 1.2 | 1.5 | |||||
Bottom Dimension of Cage(m) | 3.3×1.75 | ||||||
Winch/Hoist Model | JK1.5 | ||||||
Motor Power(KW) | 11 | ||||||
Lifting Speed(m/min) | ≈22 | ||||||
Working Temp.(°C) | -20~40 | ||||||
Competitive Advantage:
1. Equipped with self-lifting system; Self-erection and removal; Height adjusts with the building; Labor-saving and economic.
2. Adopting the attached rod instead of wind rope; improved construction conditions.
3. Two vertical posts unite whenever mounting or dismounting; safe and reliable.
4. Labor saving with manual winch for lifting stage and derrick for mounting standard sections.
5. Adopting rope protection device; the jam boards on both sides of the cage would lock the cage and prevent it from crash once the rope breaks.
6. Stop device is available on request for floor parking.
7. Adopting separate lifting navigation to avoid direct friction between wheels and basket body, thus prolongs the service time.
8. Adopting Overload Limiter to avoid overload accidents.
9. Equipped with a bi-way travel limiter supporting the use of winch, which can efficiently prevent punch and crash accidents.
10. The hanging basket is completely closed with protection screen and floor to prevent material slide and guarantees the personn
el.
SSE160 Mast Section
