Home > Products > Jack Gantry Lift > SSE160 Self-Propelled Jack Gantry Lift for Building Construction

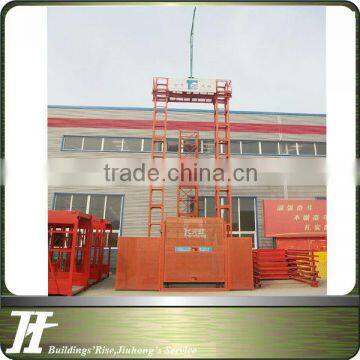

SSE160 Self-Propelled Jack Gantry Lift for Building Construction

FOB Price

USD $4,000 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port Tianjin China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	JIUHONG
Model Number	SSE160	Lift Mechanism	Lift Chain
Lift Drive / Actuation	Electric Motor	Rated Loading Capacity	160kg
Min. Lifting Height	21m	Max. Lifting Height	78m
Table Size	3.5*1.7m	Certification	ISO
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. Equipped with self-lifting system;
2. Adopting the attached rod instead of wind rope;
3. Stop device is available on reques

SSE160 Self-Propelled Jack Gantry Lift for Building Construction

Product Description

SSE160 Self-propelled Jack Gantry Lift is a new type of vertical transportation machinery widely applied in building construction, overall decoration and housing maintenance, etc. It improved the security system of lift, effectively preventing recoil and overload, which would lead to material fall-off during the travel of basket, conforming to the requirements of Security Inspection Authorities. The typical height of this machine is 24m, which is adjustable as needed.

Designed Items	Parameter
Installation Height(m)	81	63	54	45	36	27	24
Lifting Height(m)	78	60	51	42	33	24	21
Max. Lifting Capacity(t)	1.2				1.5
Bottom Dimension of Cage(m)	3.3×1.75
Winch/Hoist Model	JK1.5
Motor Power(KW)	11
Lifting Speed(m/min)	≈22
Working Temp.(°C)	-20~40

Competitive Advantage:

1. Equipped with self-lifting system; Self-erection and removal; Height adjusts with the building; Labor-saving and economic.

2. Adopting the attached rod instead of wind rope; improved construction conditions.

3. Two vertical posts unite whenever mounting or dismounting; safe and reliable.

4. Labor saving with manual winch for lifting stage and derrick for mounting standard sections.

5. Adopting rope protection device; the jam boards on both sides of the cage would lock the cage and prevent it from crash once the rope breaks.

6. Stop device is available on request for floor parking.

7. Adopting separate lifting navigation to avoid direct friction between wheels and basket body, thus prolongs the service time.

8. Adopting Overload Limiter to avoid overload accidents.

9. Equipped with a bi-way travel limiter supporting the use of winch, which can efficiently prevent punch and crash accidents.

10. The hanging basket is completely closed with protection screen and floor to prevent material slide and guarantees the personn

el.

SSE160 Mast Section
