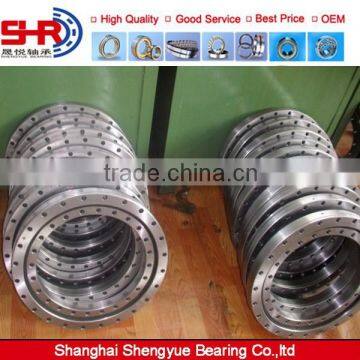

Hot Sale and High Precision Axial/Radial Bearings YRT260

Specifications

Product Features of YRT Rotary Bearing

YRT rotary bearing is composed of a thrust/radial seat ring, a thrust/radial shaft ring, a thrust washer, two needle roller cage assemblies and a group composed of concentric cylindrical roller.

Seat ring and shaft installation ring with uniformly distributed holes with screws. This type of bearing with high axial and radial load capacity. High tilt stiffness and high accuracy. Applies to rotary table, chuck and iron cutter head, as well as measurement and experiment bearing configuration. This type of bearing right with the equipment to match the requirements of parts is higher.

Required to control the installation of the installation of the screw tightening torque.

Designation and Installation

Refer to the following table 3

Retention screws with self-retaining thread inserts secure the bearing components during transport: loosen the retention screws during fitting in order to facilitate centring of the bearing; retighten or remove the retention screws after fitting of the bearing.

The L-section ring(inner ring) of YRT bearings can be fitted either with or without additional support(Figue 2)

a)L-section ring without support – bearing designation YRT

b)L-section ring with support – bearing designation YRT.. VSP. The entire end face of the

L-shaped ring must be supported.

The L-section ring and support ring must be fixed with the same screw connection. The support ring(e.g. worm wheel) must be ordered separately.

When dimensioning the drive for YRT bearings it should be noted that the frictional torque can increase by a factor of between 2 and 2.5 with increasing speed.

Shanghai Shengyue Bearing Co.,ltd is a professional bearing manufacturer and dealer in china.We have been engaged in bearing industry for 12 years and made international trade of bearing import and export for more than 5 years.We attend international bearing fairs, put in many B2B website and achieve many customers all over the world also bulid up good reputation from our customers.

Our company is specialized in deep groove ball bearing,angular contact ball bearing,spherical roller bearing,taper roller bearing and cylindrical roller bearing.Also we can customize various large non-standard products such as the most competitive products according to customers' demands.

Meanwhile we also offer and bearing.Depend on top bearing quality ensures us to have many clients in the world like America,Europe,Africa and the Middle East.We have complete bearing in stock which makes the delivery time fastly.

Our company is located in International city of World Shanghai,there have Convenient transportation of sea and air shipment.It is a powerful assurance for short delivery time and customer good service.

By ceaselessly improve our quality and after-sale service,we have confidence in cooperating with every potential customer.
