High Quality and safety KD-3368AM Automated Microtome

  High Quality and safety KD-3368AM Automated Microtome

Category: Computer automatic slicer

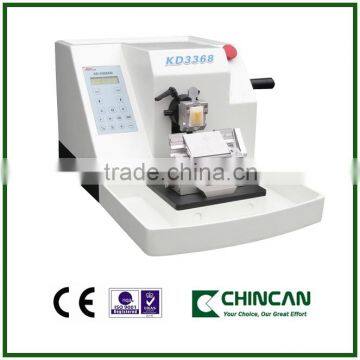

product description:KD-3368AM Automated Microtome

This model is developed based on semi-automatic microtome,it combine advanced and patented technology,and it's very good choice for histopathology research.

This model adopt streamline design,advanced function,stable performance,user-friendly.Specimen feed drive is controlled by intelligent control system.Manual and automated sectioning mode.Speed of sectioning can be adjusted;emergency Stop(E-stop).Precise electrical mechanical design,Ergonomic concept.

Features:

*Advanced driving systems,functions of section,trimming,fast forward,backward etc

*LCD screen shows section and trimming thickness range,numbers of section and trimming

*Section and trimming mode can be finished by controlling systems

*Handwheel can be locked at any position to assure user's safety

*Large waste tray,easy to unload

*Universal cassette clamp and standard specimen clamp;emergency stop systems

*Manual or fully automated section mode

*Fully-automated section has two modes: single and continuous;speed of section can be adjusted

*Section and trimming mode can be exchanged easily

*Emergency stop system,overload protection function,sleep mode protection

*Emergency brake system

Technical Specifications:

*Section thickness range: 0.5~100μm

0.5~2μm increment 0.5μm

2~10μm increment 1μm

10~20μm increment 2μm

20~100μm increment 5μm

*Trimming thickness range: 1~600μm

1~10μm increment 1μm

10~20μm increment 2μm

20~100μm increment 10μm

100~600μm increment 50μm

* Minimum setting value: 0.5μm

*Object feed: 28mm

*Vertical stroke: 60mm

*Specimen retraction range: 20μm

*Specimen clamp rotated at an angle of 360 degrees.

*Maximum specimen size: 50 x 50mm

*Precision error: ±5%

*Working Voltage: AC220V 50Hz / AC110V 60Hz

*Power Draw: 150VA

*Dimension: 580x360x310mm

*Net weight: 35kg

As one part of Chincan Sales Group, each factory has technical support staffs available offering repair and maintenance of the products exported by Chincan. We promise that all of our products will be easily accessible to technical support and manufacturer's representatives who are always ready and able to assist when needed.

Q: What after-sales service can be provided by CHINCAN ?

A: The after-sales service of CHINCAN is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?

A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users

   can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’

    experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would

    like to provide spare parts for free.

Q: How to solve the disputes between CHINCAN and customers during the after-sales maintenance?

A: We will be customer oriented,and make concessions in some principles , we will properly handle the disputes to maximize

    customer's satisfaction.

Normally all CHINCAN products are supplied with a warranty of 12 Months from the date of shipment. This warranty is entirely dependent on the following conditions:

1.The following circumstance don't belong to the warranty policy which is Man-made damages caused by improper operations.

2.The instruments must be operated in accordance with our operating guidelines; serviced and maintained on a regular basis

    in accordance with the terms specified in the relevant user manual.

3. Only approved spare parts should be used in the instruments which bought from CHINCAN and these should be changed on

    a regular basis as specified in the relevant user manual. Details of the approved spare parts and accessories for each

    instrument are shown in the user manual or alternatively this information can be obtained from CHINCAN.
