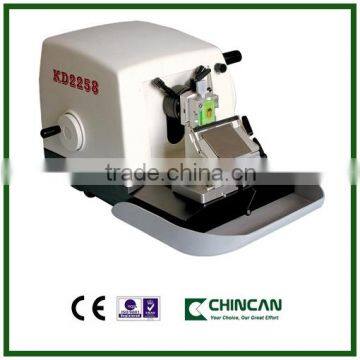

High Quality KD-2258 Manual Rotary Microtome

   High Quality KD-2258 Manual Rotary Microtome

 Model:KD-2258

KD-2258 rotary microtome is a new generation microtome especially designed to meet the demand of the modern histopathology analysis and research. With imported ball guide and high precesion ball screw , it is ideal selection for tissue sectioning on histopathology for its rational design, compact structure,high degree of accuracy and stability  .

Features:

·Ergonomical mechanism structure internal; Free of fatigue

·Both of steel knife and disposable blade can be used.

·Specimen clamp can be fixed flexible in 3 dimensional axis ,convenient to adjust the cutting angle.

·Hand-wheel can be locked in any position.

·Specimen retraction, changeable specimen clamp system

·Blade holder can slide to and fro, lateral without touch blade

·Compatible with steel knife holder type N and disposable blade holder type E

·Easy clean encloser

·Easy clean  litter groove.

Technical specifications:

Range of the thickness of slice: 0.5~60 μm.

Setting thickness of slice ranges:

                                0.5~2 μm     increment       0.5 μm

                                2~20 μm    increment       1 μm

                                20~60 μm    increment       5 μm

Tolerance : ±1%

Minimum setting value:  0.5μm

Specimen Horizontal feeding: 28 mm.

Specimen Stroke Length:   60 mm.

Maximum section of slice: 60 x 50 mm

Mechanized advance/return range: 0 - 28 mm.

Trimming thickness of slice ranges:1-60μm

Dimension :Length x Width x Height: 500 x 460 x 300 mm

Weight:27 kg.

This year Shipping shows:

As one part of Chincan Sales Group, each factory has technical support staffs available offering repair and maintenance of the products exported by Chincan. We promise that all of our products will be easily accessible to technical support and manufacturer's representatives who are always ready and able to assist when needed.

Established in 2004, Hangzhou Chincan Trading Co., Ltd. is a foreign trading company authorized by Chinese State Department of Foreign Economy & Trade and General Administration of Chinese Customs, which located in Hangzhou city, Zhejiang province, China.

We are a specialist company committed to exporting laboratory instruments, educational apparatus, medical & hospital equipments. With its superior performance, Chincan instruments are sold well throughout the Americas, Asia Pacific, the Middle East, Africa and Europe. With our excellent service, Chincan Trading has won a good reputation from the market.

Cooperative factories which qualified by Chincan come from many provinces and cities across China. All of them need to be ISO certified, Some products have CE.

Our customers spread all over the world, most products are very popular in Asia Pacific, Africa, Europe and South America,such as microscopes, autoclaves, shakers, incubators, baths, pH meters, spectrophotometers, pure water systems, balances, pipettes, centrifuges, viscometers, hardness testers, biological safety cabinets, etc.

We are doing our best to meet various needs of clients from different countries.

Our company website:

Q: What after-sales service can be provided by CHINCAN ?
A: The after-sales service of CHINCAN is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.

Q: How to solve the disputes between CHINCAN and customers during the after-sales maintenance?
A: We will be customer oriented,and make concessions in some principles , we will properly handle the disputes to maximize customer's satisfaction.

Normally all CHINCAN products are supplied with a warranty of 12 Months from the date of shipment. This warranty is entirely dependent on the following conditions:

1.The following circumstance don't belong to the warranty policy which is Man-made damages caused by improper operations.

2.The instruments must be operated in accordance with our operating guidelines; serviced and maintained on a regular basis in accordance with the terms specified in the relevant user manual.

3. Only approved spare parts should be used in the instruments which bought from CHINCAN and these should be changed on a regular basis as specified in the relevant user manual. Details of the approved spare parts and accessories for each instrument are shown in the user manual or alternatively this information can be obtained from CHINCAN.
