High Precision NAST Series Yoke Type Track Roller Bearing NAST15ZZUUR
- Shanghai Qingdao
- T/T Credit Card
You May Like
-

                        IRT NAF NAU NAX NAG NAST NTB CRB NA Flat Inch Size Needle Roller Bearing
-

                        Japan Brand IKO NTN Bearing NAST8ZZ Needle Roller Bearings
-

                        Japan NTN Cam Follower Track Roller Bearing NAST10ZZ
-

                        Japan Original Needle Roller Bearing With Inner Ring NA4905
-

                        NA Series NA4904 Chrome Steel Cage Needle Roller Bearing Chinese Manufacturer
-

                        Famous Brand NA4903 17*30*13 Needle Roller Bearing Price
Product Details
| Brand Name | IKO | Bore Size | 0.1, 30 | |
| Outside Diameter | 0.1, 45 | Model Number | NAST15ZZ | |
| Precision Rating | P0 P5 P6 P4 P2 | Seals Type | Open | |
| Number of Row | Single Row | Place of Origin | Shanghai, China |
Product Description

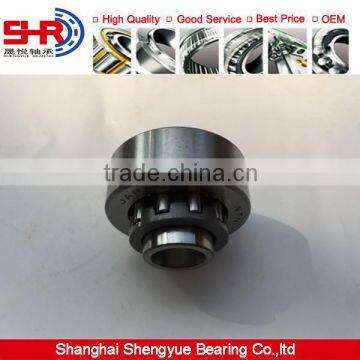

High precision NAST series yoke type track roller bearing NAST15ZZUUR
Description
IKO roller followers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick walled outer ring. Both crowned and cylindrical outer rings are available. The outer rings run directly on mating track surfaces, and the crowned outer ring is effective in relieving the edge load caused by mounting errors. The cylindrical outer ring, on the other hand, has a large contact area with the mating track surface and is suitable for applications involving large loads or low track surface hardness.
Features: Thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross section.
Benefits: Optimum speed and lubrication-retention capability.
Needle Roller Bearings series:
Needle Roller Bearing (Series NK,NKS, RNA49, RNA48, NKI, NKIS, NA49, NA48, RNA69, NA69, RNA49..RS, RNA49..2RS, NA49..RS, NA49..2RS, RNAO, NAO, IR, LR, RNAV, NAV, RPNA, PNA etc.)
Stud Type Track Roller (Series KR, KRE, KR..PP, KRE..PP, KRV, KRVE, KRV..PP, KRVE..PP, NUKR, NUKRE etc.)
Yoke Type Track Roller Bearing (Series RSTO, RSTO..X, STO, STO..X, RNA22..2RS, RNA22..2RSX, NA22..2RS, NA22..2RSX, NATR, NATV, NUTR, NUTR..X etc.)
Axial Bearing (Series AXK, AXW, K811, K812, K893, K874, K894, K/KS, KK/KKS, KZK, KBK, KNL etc.)
Drawn Cup Needle Roller Bearing (Series HK SCE SCH, BK BCE BCH, HK..RS, HK..2RS, BK..RS etc.)
| YFFBP Bearing NO. | Principal Dimensions | Basic Load Ratings | weight | |||||
| Cylindrical | d | D | B | C | a | C | Co | g |
| outer ring | mm | N | ||||||
| NAST6ZZ | 6 | 19 | 14 | 13.8 | 14 | 4160 | 4550 | 24.5 |
| NAST8ZZ | 8 | 24 | 14 | 13.8 | 17.5 | 5650 | 5890 | 39 |
| NAST10ZZ | 10 | 30 | 16 | 15.8 | 23.5 | 9790 | 9680 | 65 |
| NAST12ZZ | 12 | 32 | 16 | 15.8 | 25.5 | 10500 | 10900 | 75 |
| NAST15ZZ | 15 | 35 | 16 | 15.8 | 29 | 12400 | 14300 | 83 |
| NAST17ZZ | 17 | 40 | 20 | 19.8 | 32.5 | 17600 | 20900 | 135 |
| NAST20ZZ | 20 | 47 | 20 | 19.8 | 38 | 19400 | 24500 | 195 |
| NAST25ZZ | 25 | 52 | 20 | 19.8 | 43 | 20800 | 28400 | 225 |
| NAST30ZZ | 30 | 62 | 25 | 24.8 | 50.5 | 30500 | 45400 | 400 |
| NAST35ZZ | 35 | 72 | 25 | 24.8 | 53.5 | 32400 | 50600 | 550 |
| NAST40ZZ | 40 | 80 | 26 | 25.8 | 61.5 | 35900 | 61100 | 710 |
| NAST45ZZ | 45 | 85 | 26 | 25.8 | 66.5 | 37400 | 66400 | 760 |
| NAST50ZZ | 50 | 90 | 26 | 25.8 | 76 | 38900 | 71700 | 830 |

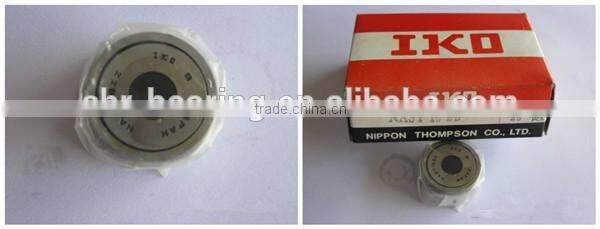

Pictures of NAST needle roller bearings
IKO brand needle roller bearings
KR series needle roller bearings
| Bearing number | Dimensions(mm) | Bearing number | Dimensions(mm) |
| KR13/CF5 | M5*0.8 | KR40/CF18 | M18*1.5 |
| KR16/CF6 | M6*1 | KR47/CF20 | M20*1.5 |
| KR19/CF8 | M8*1.25 | KR52/CF20-1 | M20*1.5 |
| KR22/CF10 | M10*1.25 | KR62/CF24 | M24*1.5 |
| KR26/CF10-1 | M10*1.25 | KR72/CF24-1 | M24*1.5 |
| KR30/CF12 | M12*1.5 | KR80/CF30 | M30*1.5 |
| KR32/CF12-1 | M12*1.5 | KR85/CF30-1 | M30*1.5 |
| KR35/CF16 | M16*1.5 | KR90/CF30-1 | M30*1.5 |

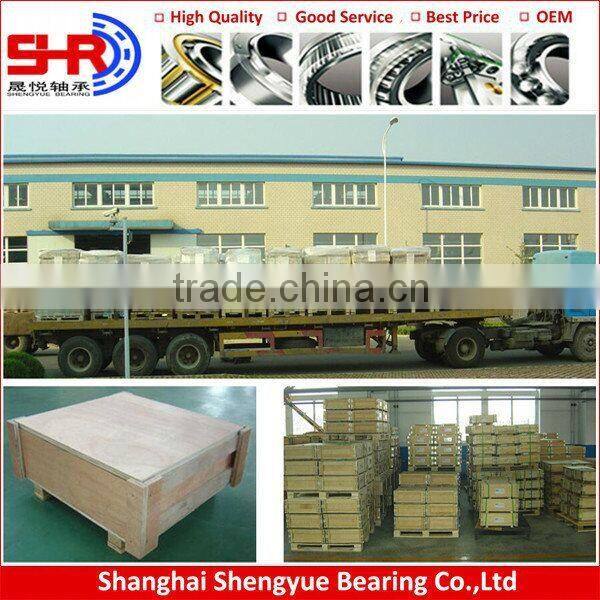

1. For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box
2. For big ones:anti-rust oil+waterproof belt+professional belt+wooden box
Payment Terms:
L/C ,T/T ,western Union
1. 30% deposit By T/T, Western Union, Paypal, 70% before delivery.
2. 100% L/C at sight
Other information:
Production Lead time: 7~25days; If we have this item in stock , 2days delivery.
Delivery Date: within 3-5days after your payment.
Sample: Free, but we don't bear the freight of sample
MOQ: 1 set Supply Ablility:100000 pcs/Month

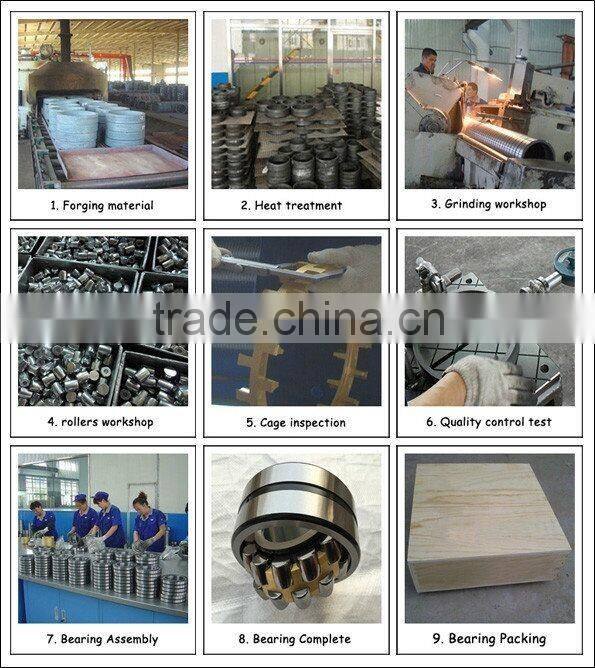

Production process
Application

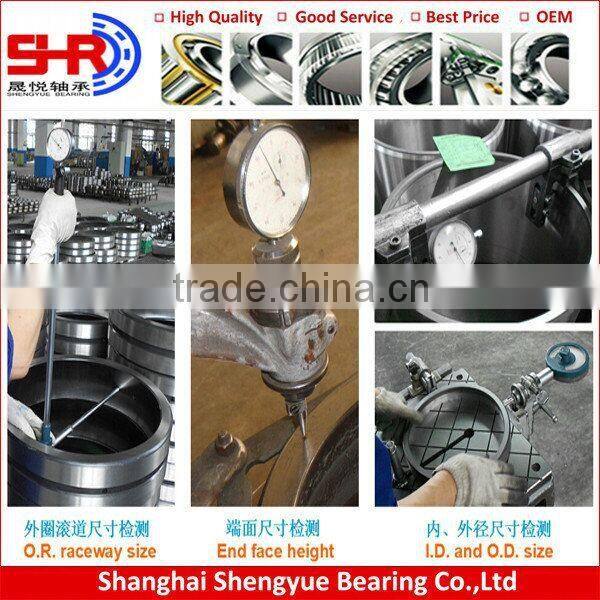

Test details

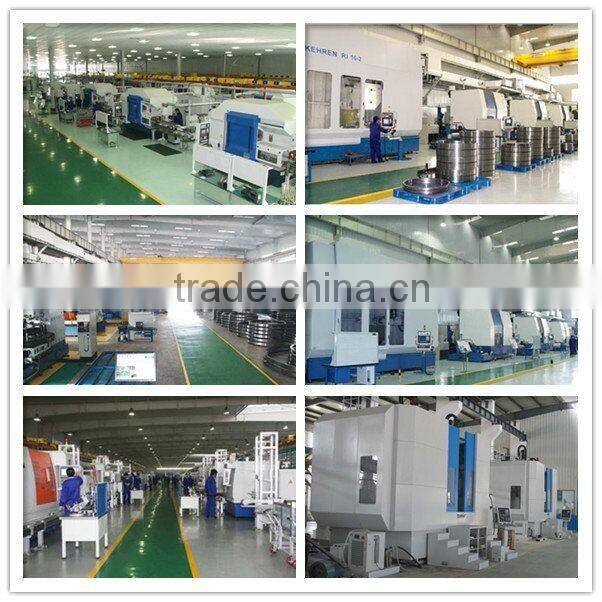

  Shanghai Shengyue Bearing Co., Ltd. is a professional bearing manufacturer and dealer in China. We have been engaged in bearing industry for 15 years and worked on bearing import and export for more than 8 years.We have our own factory brand "SYBR" and applied ISO9001:2000 certificate for certification authority. We attend international bearing fairs, put in many B2B websites and achieve many customers all over the world, building up a good reputation from our customers.
Our company is specialized in deep groove ball bearings, angular contact ball bearings, spherical roller bearings, taper roller bearings and cylindrical roller bearings. In addition, we can customize various large non-standard products, such as the most competitive products according to customers' demands.
In 2008, we become the authorized agent of Japan NSK and ASAHI.
In 2009, we become the authorized agent of Japan NTN.
In 2011, we become the authorized agent of Japan IKO.
Meanwhile, we also offer KOYO URB KG DKF DPI bearings. Depending on top bearing quality ensures us to have many clients in such as countries and regions like America, Europe, Africa and the Middle East. We have complete bearing in stock which makes delivery fast.
