Product Details
Brand Name | SHR | Bore Size | 0, 4 | |
Outside Diameter | 0, 8 | Model Number | HK0408 | |
Precision Rating | P0 P4 P5 P6 | Seals Type | OPEN RS 2RS | |
Number of Row | Single Row | Place of Origin | Shandong, China |
Product Description
HK Needle roller bearings size chart
( wholesale price)
Needle Bearings Description:
Needle roller bearings (needle bearing) is a cylindrical roller with roller bearings, relative to its diameter, roller both thin and long. This is called needle roller. Despite having a smaller cross-section, has a higher load bearing capacity, thin and long needle bearing mounted roller (roller diameter D≤5mm, L / D≥2.5, L is the length of the roller), so radial structure is compact, the diameter size and load capacity of the other types of bearings, minimum diameter, especially for limited radial dimensions of the support structure.With thin and long needle bearing roller (roller length of 3 to 10 times the diameter, the diameter of the generally small 5mm), so the radial structure is compact, its diameter size and load bearing capacity and other types are the same, the outer the minimum diameter, especially for radial mounting dimensions restricted support structure. needle roller bearings based on the use of different occasions, machining accuracy and surface quality should be bearing rings, use combinations. Needle roller bearings are bearing unit consists of radial and thrust needle roller bearings bearing component combinations.
Name | Needle Roller Bearing | ||
Model | Drawn cup needle roller bearings, Inner Rings, Needle Thrust Bearings | ||
Needle Roller Bearings (machined), Needle Roller and Cage Assemblies | |||
Roller Clutches, Aligning Needle Roller Bearings, | |||
Bore Size: | 3mm-200mm | Outside diameter | 6mm-300mm |
Clearance | C0,C1,C2,C3,C4,C5 etc. | ||
Cage Type | Brass cage or Stainless cage | ||
Features | High load-carrying capacity Suitable for high speeds Particularly easy to install | ||
Application | Gear pumps Sheaves Automotive transmissions Two-cycle engines | ||
Package | pallet, wooden case,industrial package or as customers' requirement |
HK series needle bearing sizes:
Bearing Designation and Mass Approx | Boudary Dimensions | Basic Load Rating | Limiting Speed | |||||||
Shaft Diameter | Open | Mass | Closed | Mass | d | D | Length | Dynamic | Cor Static | Oil |
mm | Current | g | Current | g | mm | N | rpm | |||
4 | HK0408TN | 1.6 | BK0408TN | 1.8 | 4 | 8 | 8 | 1540 | 1070 | 40000 |
5 | HK0509 | 2 | BK0509 | 2.1 | 5 | 9 | 9 | 2200 | 1790 | 36000 |
6 | HK0607 | 1.8 | - | - | 6 | 10 | 7 | 1600 | 1400 | 30000 |
HK0608 | 2.1 | BK0608 | 2.2 | 6 | 10 | 8 | 1830 | 1550 | 32000 | |
HK0609 | 2.2 | BK0609 | 2.6 | 6 | 10 | 98 | 2650 | 2400 | 30000 | |
HK061208 | 2.5 | - | - | 6 | 12 | 8 | 2230 | 2010 | 33000 | |
7 | HK0709 | 2.3 | BK0709 | 2.9 | 7 | 11 | 9 | 2800 | 2150 | 27000 |
8 | HK0808 | 2.7 | BK0808 | 3 | 8 | 12 | 8 | 2550 | 2400 | 21000 |
HK0810 | 3 | BK0810 | 3.4 | 8 | 12 | 10 | 3700 | 3450 | 21000 | |
HK081410 | 5.35 | BK081410 | 5.8 | 8 | 14 | 10 | 3800 | 3950 | 25000 | |
HK081412 | 6.6 | - | - | 8 | 14 | 12 | 4100 | 4320 | 25000 | |
9 | HK0908 | 3 | BK0908 | 3.4 | 9 | 13 | 8 | 3650 | 4050 | 25000 |
HK0910 | 4 | BK0910 | 4.3 | 9 | 13 | 10 | 4050 | 4250 | 25000 | |
HK0912 | 4.6 | BK0912 | 4.9 | 9 | 13 | 12 | 5000 | 6000 | 25000 | |
HK091510 | 5.6 | - | - | 9 | 15 | 10 | 5300 | 6300 | 25000 | |
10 | HK1010 | 4.1 | BK1010 | 4.3 | 10 | 14 | 10 | 3900 | 4800 | 19000 |
HK1012 | 4.8 | BK1012 | 5 | 10 | 14 | 12 | 5000 | 6300 | 19000 | |
HK1015 | 6 | BK1015 | 6.2 | 10 | 14 | 15 | 6700 | 7800 | 19000 | |
12 | HK1208 | 3.3 | - | - | 12 | 16 | 8 | 7200 | 8000 | 19000 |
HK1210 | 4.6 | BK1210 | 5.2 | 12 | 16 | 10 | 4150 | 5800 | 19000 | |
HK1212 | 5.6 | BK1212 | 6.2 | 12 | 16 | 12 | 3800 | 5100 | 15000 | |
13 | HK1312 | 8.9 | BK1312 | 11.2 | 13 | 19 | 12 | 6200 | 7100 | 17000 |
14 | HK1410 | 8.3 | BK1412 | 12.1 | 14 | 20 | 10 | 6700 | 7000 | 16000 |
HK1412 | 10.5 | - | 12.2 | 14 | 20 | 12 | 6800 | 7500 | 16000 | |
HK1416 | 13.9 | - | 12.5 | 14 | 20 | 16 | 7300 | 9000 | 14000 | |
15 | HK152012 | 8.4 | - | - | 15 | 20 | 12 | 5800 | 6000 | 14000 |
HK152016 | 11.4 | - | - | 15 | 20 | 16 | 6000 | 6200 | 14000 | |
HK152020 | 13.8 | - | - | 15 | 20 | 20 | 6100 | 6400 | 14000 | |
HK1512 | 11.1 | BK1512 | 12.7 | 15 | 21 | 12 | 7000 | 8400 | 14000 | |
HK1514 | 12.7 | - | 12.9 | 15 | 21 | 14 | 8500 | 10400 | 13000 | |
HK1515 | 14.2 | - | 13 | 15 | 21 | 15 | 9100 | 11400 | 13000 | |
HK1516 | 15 | BK1516 | 16.5 | 15 | 21 | 16 | 9800 | 11400 | 14000 | |
HK1522 | 20.4 | BK1522 | 22 | 15 | 21 | 22 | 10400 | 16500 | 14000 | |
HK152212 | 12.5 | - | - | 15 | 22 | 12 | 14300 | 18400 | 13000 | |
16 | HK162109 | 7.5 | - | - | 16 | 21 | 9 | 4400 | 5600 | 12000 |
HK1612 | 11.7 | BK1612 | 13.8 | 16 | 22 | 12 | 7100 | 9200 | 14000 | |
HK1614 | 14.4 | - | - | 16 | 22 | 14 | 8800 | 9900 | 12000 | |
HK1616 | 15.8 | BK1616 | 17.6 | 16 | 22 | 16 | 10100 | 14300 | 14000 | |
HK1617 | 18 | - | - | 16 | 22 | 17 | 12900 | 17200 | 12000 | |
HK1622 | 21.7 | BK1622 | 23.4 | 16 | 22 | 22 | 11100 | 17400 | 14000 |

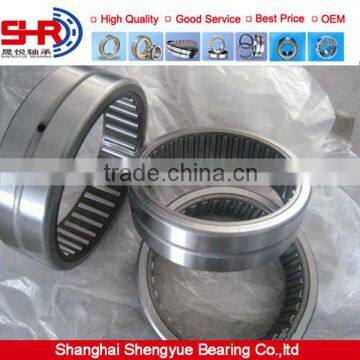

HK series needle bearing sizes Pictures:
Bearings Package: HK needle bearing sizes
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others HK needle bearing sizes
Shipping & delivery time: HK needle bearing sizes
1) Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
Note:We will offer the best freight for you to save the shipping cost.Besides we provide all needed documents for your Customs clearance.Of course,your forwarder will be also welcome!
Payment terms: HK needle bearing sizes
We accept T/T, Western Union,Paypal,Visa.
1) T/T or WU (we undertake the bank fees):
A:100% payment.
B:30% deposit ,70% before transportation.
2)PayPal (we undertake the transaction fees) :
A:100% payment.
B:30% deposit ,70% before transportation.
3) L/C at sight. HK needle bearing sizes
Note :We will take some pictures of your bearings before transportation.
Price terms | FOB,CNF,CFR, CIF,EXW,C&F |
Shipping Airport | Shanghai Pudong International Airport Shanghai Hongqiao International Airport |
Shipping Port | Shanghai ,China |
HK needle bearing sizes
