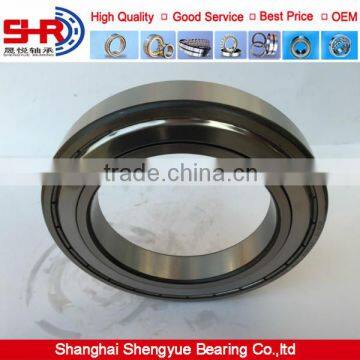

Large size 6024 6024ZZ 6024RS deep groove ball bearing
- Shanghai China
- T/T Credit Card PayPal
You May Like
-
deep groove ball bearing 6013, 6013zz, 6013-2rs
-
High quality shower door bearing wheels rubber coated bearing
-
Excellent quality and reasonable price ! TBI SFU10020-T4 ball screw
-
High precision CNC machine bearing SFU01204-4T SFU Ball screw lead bearing
-
SD/BD Sereis 16*10R Ball Screw
-
Wholesale price ball screws sfu03205-t4 with high precision made in china factory
Product Details
| Brand Name | OEM | Bore Size | 0, 120 | |
| Outside Diameter | 0, 180 | Model Number | 6024 6024ZZ 6024RS | |
| Precision Rating | Standard | Seals Type | ZZ 2RS OPEN | |
| Number of Row | Single Row | Place of Origin | China |
Product Description
Large size 6024 6024ZZ 6024RS deep groove ball bearing
The Brief Description of Bearings:
6000 series deep groove ball bearing have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accomodate radial and axial loads in both directions. These bearings are particularly versatile.Deep groove ball bearings are the most widely used bearing type. Consequently, they are available in many designs, variants, series and sizes.
(1) miniature bearings -- Nominal outside diameter size in the range ofbearing under 26mm;
(2) bearing small bearings -- Nominal outside diameter size in the range of 28-55mm;
(3) bearing small bearings -- Nominal outside diameter size in the range of 60-115mm;
(4) bearing large bearings -- Nominal outside diameter size in the range of 120-190mm
(5) bearing large bearings -- Nominal outside diameter size in the range of 200-430mm;
(6) large bearings -- Nominal outside diameter size in the range ofbearing more than 440mm.
| Model Number | Deep Groove Ball Bearing 6024 6024ZZ 6024RS |
| Own Brand | SYBR,OEM |
| Rings Material | Chrome steel-GCr15, high Carbon steel-GCR11,Stainless steel-440C,304 316 |
| Cages Material | steel,brass,nylon |
| ID size | 120*180*28mm |
| Quality standard | ISO9001:2008 SASO CE PVOC |
| Precsion | P0,P6,P5,P4 ABEC-1,ABEC-3,ABEC-5 etc. |
| Clearance | C0,C1,C2,C3,C4,C5 |
| Noise | Z1,Z2,Z3 |
| Vibration | V1,V2,V3 |
| HRC | 58-62HRC |
| Tolerance Grade | GB/T307.1-205 |
| Services | OEM,ODM,OBM Services |
Main Market
| Asia,Europe,America,Africa,Middle East,Australia etc. |
More often deep groove ball bearing specification:
| Bearing Number | Boundary Dimensions(mm) | Basic Load Ratings(kN) | Limiting Speeds(rpm) | Mass(Kg) | |||||
| SYBR | d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 29,000 | 34,000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 26,000 | 30,000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 22,000 | 26,000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 20,000 | 24,000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 18,000 | 21,000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15,000 | 18,000 | 0.08 |
| 6006 | 30 | 55 | 13 | 1 | 13.2 | 8.3 | 13,000 | 15,000 | 0.116 |
| 6007 | 35 | 62 | 14 | 1 | 16 | 10.3 | 12,000 | 14,000 | 0.155 |
| 6008 | 40 | 68 | 15 | 1 | 16.8 | 11.5 | 10,000 | 12,000 | 0.19 |
| 6009 | 45 | 75 | 16 | 1 | 21 | 15.1 | 9,200 | 11,000 | 0.237 |
| 6010 | 50 | 80 | 16 | 1 | 21.8 | 16.6 | 8,400 | 9,800 | 0.261 |
| 6011 | 55 | 90 | 18 | 1.1 | 28.3 | 21.2 | 7,700 | 9,000 | 0.388 |
| 6012 | 60 | 95 | 18 | 1.1 | 29.5 | 23.2 | 7,000 | 8,300 | 0.414 |
| 6013 | 65 | 100 | 18 | 1.1 | 30.5 | 25.2 | 6,500 | 7,700 | 0.421 |
| 6014 | 70 | 110 | 20 | 1.1 | 38 | 31 | 6,100 | 7,100 | 0.604 |
| 6015 | 75 | 115 | 20 | 1.1 | 39.5 | 33.5 | 5,700 | 6,700 | 0.649 |
| 6016 | 80 | 125 | 22 | 1.1 | 47.5 | 40 | 5,300 | 6,200 | 0.854 |
| 6017 | 85 | 130 | 22 | 1.1 | 49.5 | 43 | 5,000 | 5,900 | 0.89 |
| 6018 | 90 | 140 | 24 | 1.5 | 58 | 49.5 | 4,700 | 5,600 | 1.02 |
| 6019 | 95 | 145 | 24 | 1.5 | 60.5 | 54 | 4,500 | 5,300 | 1.08 |
| 6020 | 100 | 150 | 24 | 1.5 | 60 | 54 | 4,200 | 5,000 | 1.15 |
| 6021 | 105 | 160 | 26 | 2 | 72.5 | 65.5 | 4,000 | 4,700 | 1.59 |
Pictures Shows of Bearings: d
eep groove ball bearing specificatio
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time:
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
Note:We will offer the best freight for you to save the shipping cost.Besides we provide all needed documents for your Customs clearance.Of course,your forwarder will be also welcome!
Payment terms: deep groove ball bearing specification
We accept T/T, Western Union,Paypal,Visa.
1) T/T or WU (we undertake the bank fees):
A:100% payment.
B:30% deposit ,70% before transportation.
2)PayPal (we undertake the transaction fees) :
A:100% payment.
B:30% deposit ,70% before transportation.
3) L/C at sight.
Note :We will take some pictures of your bearings before transportation.
| Price terms | Door to door,FOB,CNF,CFR,CIF,EXW,C&F |
| Shipping Airport | Shanghai Pudong International Airport Shanghai Hongqiao International Airport |
| Shipping Port | Shanghai,Guangzhou |
Our service :
1. Price --Highest quality and most competitive price.
2. Warranty----- We provide 1year warranty for all bearings.
3. Delivery fast -----Goods will be sent out within 3 to 5 days for ex-stock.
4. Professional----- We are special in source and sales, as development, methods,
conjugations, and handling ,for more than 7 years.
5. Best service-----Answering e-mails or solving questions quickly.We are 24 hours online.
6.Save freight.---we have many cooperative forwarders to help you choose the best shipping ways.
Shanghai Shengyue Bearing Co., Ltd. is a professional bearing manufacturer and dealer in China. We have been engaged in bearing industry for 15 years and worked on bearing import and export for more than 8 years. We attend international bearing fairs, put in many B2B websites and achieve many customers all over the world, building up a good reputation from our customers.
We are here:
Our company Information:
| Company name | Shanghai Shengyue Bearing Co.,Ltd |
| Business type | Bearings Supplier & Bearing manufacturer |
| Location | Shanghai City,China |
| Experience | 7 years |
| Supply | Famous brands & Chinese brands bearings |
| OEM service | Providing |
| Our advantages |
1.Most Competitive Price. 2.Help you to choose the best freight. 3.Provide all document for your Customs Clearance. 4.We will undertake the responsibility if there is any problems.
Trustworthiness is the basis of great bussiness.And we have the powerful ability to support your business! |
Our Factory Pictures:
If you are interested in our products,please feel free to send an inquiry or chat with us online.
We will warmly reply you immediately!---SHR Bearing
