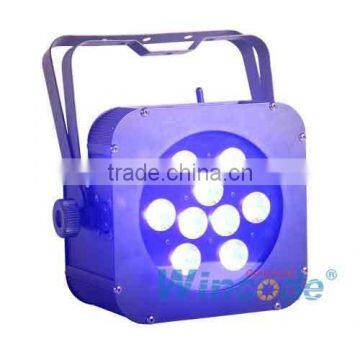

RGBW/A DMX wireless battery led uplights / wireless led uplights / battery led uplights

TECHNICAL INFO

9 RGBW / 9 RGBA

Name: WiFREE MagiCube Q9
With Built- in 2.4G Wireless DMX 512 Receiver
With Battery indicator, 4 show grids on the light
RF Remote controller for optional
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 95W
Light source: 9pcs 10W high brightness 4 in 1 leds
Lamp life: 6-10 ten thousand hrs
LED angle: 30(5) degree
Color: 16.7 million kinds of color change
Lux: 7.000@1m
Control channels: 4/7 chs
Control mode: DMX512, master/slave, auto, sound active (can order wireless DMX512 also)
Automatic model(by function button) : color change, color strobe, color dimmer,color gradual change/color jump change
Operation menu: 4 digit digital LED display
Packing size: 260*175*290mm
N. W: 4kg
G. W: 4.5kg
Master carton: 590*370*300mm ( 4 PCS/carton)

9 RGBWA


Name: WiFREE MagiCube F9
With Built- in 2.4G Wireless DMX 512 Receiver
With Battery indicator, 4 show grids on the light
RF Remote controller for optional
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption:135W
Light source: 9pcs 15W high brightness 5 in 1 leds
Lamp life: 6-10 ten thousand hrs
LED angle: 30(5) degree
Color: 16.7 million kinds of color change
Lux: 9.000@1m
Control channels: 5/9 chs
Control mode: DMX512, master/slave, auto, sound active (can order wireless DMX512 also)
Automatic model(by function button) : color change, color strobe, color dimmer,color gradual change/color jump change
Operation menu: 4 digit digital LED display
Packing size: 260*175*290mm
N. W: 4kg
G. W: 4.5kg
Master carton: 590*370*300mm ( 4 PCS/carton)

9 RGBAW+UV 6 in 1

Name: WiFREE MagiCube X9
With Built- in 2.4G Wireless DMX 512 Receiver
With Battery indicator, 4 show grids on the light
RF Remote controller for optional.
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 165W
Light source: 9pcs 18W high brightness tri-color leds
Lamp life: 6-10 ten thousand hrs
LED angle: 30(5) degree
Color: 16.7 million kinds of color change
Lux: 7.000@1m
Control channels: 6/11
Control mode: DMX512, master/slave, auto, sound active (can order wireless DMX512 also)
Automatic model(by function button) : color change, color strobe, color dimmer,color gradual change/color jump change
Operation menu: 4 digit digital LED display
Packing size: 260*175*290mm
N. W: 4kg
G. W: 4.5kg
Master carton: 590*370*300mm ( 4 PCS/carton)

Battery powered (rechargeable), With Battery indicator, 4 show grids on the light To have the portable light connected to house power by the power cord, it can be charged fully after continuously charging for 4 hours once fully charged, the battery supports continuous up to 10 hours with AUTO mode combination of colors; about 12-14 hours if single color

Application:
Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers

Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.

"Wincode Optronics Co., Limited" is a professional OEM,ODM,OBM manufacturer and exporter which specialize in manufacturing and marketing variety stage lights, PRO Lights, Architectural Lights, Commercial Lights. With much experience and strict ISO9001 approved international standards. We are running our own brand "Wincode" in the global market for lighting. "Wincode" products are suitable for various entertainment and recreation place, such as theatre, TV showroom, multimedia hall, square show, organ hall, recreational city, Disco club, Bar, KTV and so on.

Main products: LED moving head lights, led par light, led Wedding Up Light,Architectural lights, Commercial Lights, moving head light, a variety of DMX512 consoles and various ancillary stage equipment. Wincode depend on advanced technology, excellent quality, stable performance and first-class service, to win praise from various sectors and broad market space. Our self-developed battery wireless lighting series has been widely used in a variety of wedding, party, events ... mainly in France, the United States, Canada and other markets.

Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.

1. Q: The real Current used for 3in1/4in1/5in1/6in1 LEDs?

A: 3in1 LED is 3W; 4in1 LED is 8W; 5in1 LED is 10W; 6in1 LED is 12W

2. Q: Lithium Battery Powered LED Up Lighting Warranty?

A: We provide 1 year limited warranty for each parts.

3. Q: Delivery time for Moving Head Beam 5R/7R/15R?

A: For sample order 2-3 days, order more than 50pcs 7-10 days

4. Q: Wireless DMX512 Transceiver and Receiver Compatible?

A: Our wireless dmx system can be compatible with other ones on the market.

5. Q: Tpye of Power Connectors?

A: IEC, Powercon for choice.

6. Q: Type of DMX Connectors?

A: 3pin/5pin/IP65-3pin/IP65-5pin.

7. Q: Colours of Fixture Housing?

A: Black or White Colours.

8. Q: Flight case ODM available?

A: You can ODM the flight case as your request .

9. Q: Brand and Logo on fixture and carton?

A: Nature Brand; Wincode Optronics' Brand; Yours Brand.

The warranty and return policy is only applied to units which are directly purchased from us. Any after sales issues with the units which bought out of trading channels, please contact your direct seller.

By ordering from us, you indicate that you have read and agreed to the following warranty and return policy and conditions listed below. If any question, you can contact your sales person.

WARRANTY:

1) 1 Year Factory Warranty

All of our items come with 1 Year Warranty from the date of dispatch. Accessories orders, which have three months’ warranty period. A replacement item, if sent, does not restart, or in any way extend the warranty period.

2) Spare parts support

Resellers can buy spare parts for repair with the order and return back the faulty ones to get refunded for the amount of the spare parts. Please note: A: The LEDs or Bulb light sources are not be covered by warranty. B: Parts return for refund must be got within 1 month after reporting faulty. C: the faulty unit which the parts bought used must be in warranty.

3) OEM orders can get 1% free spare parts support.

4) Extended warranty or no warranty terms are negotiable. You can consult your sales person.

5) Third party QC and QC methods are acceptable. Please consult your sales person.

6) Authorized after sales video and training support provided
Resellers can enjoy the training with our professional tech team for the after sales and get instructed by the online videos and instructions.

RETURN :

All Product returns require an RMA (Return Merchandise Authorization) Form. You are requested to fill out and attach RMA form with the return item. Or you can get the Form from the sales person directly. Returns without return form will get delayed for the process or get rejected.

• Normally we don’t do refund, but if we do, please note that shipping fees are not refundable.
• Product returns for replacement and refund must be reported to us within 7 days from the date that your product originally shipped out. Returns for refund must be got within 14 days from date that your product originally shipped out. For product replacement or refund requests, please return the entire item package including all accessories. Package contents will be verified for completeness before a replacement / refund is issued
• Return units with no faulty are not acceptable and the buyer will be solely responsible for sending back.
• Return units out of warranty must be got notified and authorized before return. The cost for repairing will get quoted by the customer service.
• The customer is solely responsible for sending returned products to Wincode, and Wincode will cover the cost of returning the repaired item back to Customers.
• All return will get processed within 14 days once got return. Customers will get informed when got return and arranged redelivery.
• Normally Only China repair center accept return for refurbish. For refurbish cost, please inquiry the customer service.
• Normally only China Repair Centre accept return for refund.
• Warranty and return terms made between resellers and their own clients are not applicable with Wincode policy.

The above warranty does not apply to damage or failure resulting from

• Accident, neglect, abuse or acts of force majeure
• Unauthorized repair or modification or upgrade of the unit
• Failure to install or improper installation or not use the product in accordance with the instruction or use of this product other than for its intended purpose
• Artificial /physically damage
• Operation Error
• The warranty stickers or serial number are not easy to identify, damaged, torn and altered, etc.
• Improper packing when return
