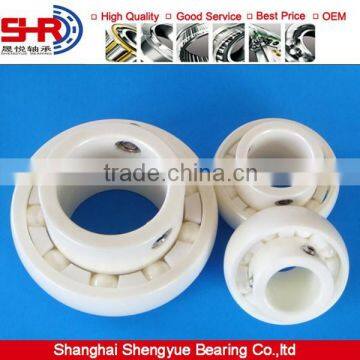

Ceramic insert bearing UC203CE uc series bearings
- Shanghai / Qingdao
- T/T Credit Card PayPal
You May Like
-
Square bore bearing agricultural bearing W211PPB3
-
Square bore Farm Machinery Bearing agricultural bearing W209PPB5
-
AG bearing Farm Machinery Bearing W211PPB8 bearing nomenclature
-
AG bearing Farm Machinery Bearing W210PPB9
-
AG bearing Farm Machinery Bearing W210PPB2 durable replacement bearing
-
AG bearing agricultural crawler tractors bearing W208PPB23
Product Details
| Brand Name | SHR | Bore Size | 17, | |
| Outside Diameter | 47, | Model Number | insert bearing UC203CE | |
| Precision Rating | p5 | Seals Type | open | |
| Number of Row | Single Row | Place of Origin | Shanghai, China |
Product Description
Ceramic insert bearing UC203CE uc series bearings
1,anti-corrosion long life
2,High speed, precision
3,Acid, alkali, salt corrosion
4,3% discount
ceramic insert bearings have the characteristics of anti-magnetic insulation, abrasion resistant, oil-free self-lubricating and enduring extreme high or low temperature, so they can be used for harsh environment and even under some special condition. The material of rings and roller is jargonia(ZrO2) and the holder uses poly back fluoride(PTFE) as standard configuration. Generally, we can use the reinforced nylon made of glass fiber 66(GRPA66-25),special engineering plastics(PEEK,PI),nonrust steel(AISI SUS316.SUS304), brass(Cu) and so on. ceramic deep groove ball bearings are made entirely of ceramic material and are superior to common Steel Angular Contact Bearings in many ways. Ceramic is the perfect material for any application seeking to achieve higher RPM's, reduce overall weight or for extremely harsh environments where high temperatures and corrosive substances are present.
ceramic insert bearing uc series bearings UC203CE specification :
| Model name : UC203CE bearing |
Brand : SHR
|
| Size : 17*47*31 mm | Weight :0.14 KG
|
Seal : open
| Type : insert bearing |
| Material of cage : PTFE | Clearance : C0
|
| Precision : P6 degree | H.S code : 69091100
|
Ceramic insert Bearing uc series bearings UC203 CE Benefits :
- Will not corrode or rust
- 2/3 the weight of steel
- Resistant to resist acids, alkali, blood, salt and water
- Extremely low coefficient of friction and thermal expansion
- Lower friction results in less energy consumed
- Operating Temperature from as low as (-85°C) up to (+ 900°C)
Ceramic insert bearing uc series bearings UC203CE model series
| model | dimension (mm) | |||||||
| d | D | B | S | C | r/min | G | ds | |
| UC201CE | 12 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6 x 1 |
| UC202CE | 15 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6 x 1 |
| UC203CE | 17 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6 x 1 |
| UC204CE | 20 | 47 | 31 | 12.7 | 17 | 1 | 4.5 | M6 x 1 |
| UC205CE | 25 | 52 | 34.1 | 14.3 | 17V | 1 | 5 | M6 x 1 |
| UC206CE | 30 | 62 | 38.1 | 15.9 | 19 | 1 | 5 | M6 x 1 |
| UC207CE | 35 | 72 | 42.9 | 17.5 | 20 | 1.1 | 6 | M8 x 1 |
| UC208CE | 40 | 80 | 49.2 | 19 | 21 | 1.1 | 8 | M8 x 1 |
| UC209CE | 45 | 85 | 49.2 | 19 | 22 | 1.1 | 8 | M8 x 1 |
| UC210CE | 50 | 90 | 51.6 | 19 | 24 | 1.1 | 9 | M10 x 1 |
| UC211CE | 55 | 100 | 55.6 | 22.2 | 25 | 1.5 | 9 | M10 x 1 |
| UC212CE | 60 | 110 | 65.1 | 25.4 | 27 | 1.5 | 10 | M10 x 1 |
| UC213CE | 65 | 120 | 65.1 | 25.4 | 27 | 1.5 | 10 | M10 x 1 |
Ceramic insert bearing uc series bearings UC203CE pictures series :
Ceramic insert bearing features :
1)essentially increased life time
2)high stiffness because of high Young’s modulus,lower vibration
3)wear resistance and cost effective lubrication
4)electrical insulation and non-magnetism
5)high temperature resistance up to 1000oC
6)high corrosion resistance to most acids and alkalies
Comparision for ceramic bearing VS Chrome steel bearing :
| CERAMIC VS. STEEL | |||
| Item | Bearing Steel | Ceramics (SI3N4) | Characteristics of Ceramic Bearings |
| Density (g/m?) | 7.8 | 3.2 | Higher Speed Decreased centrifugal force Reduced Ball Skidding Lower Operating Temperature Less wear Less Friction |
| Heat Resistance (ºC) | 180 | 800 | Maintains stability at high temperatures |
| Coefficient of linear thermal expansion (1/ºC) | 12.5 X 10?6 | 3.2 X 10?6 | Minimal Ball Deformation Lower operating Temperature Stable Running Preload Reduced Contact Angle Change |
| Vicker's Hardness (HV) | 700~800 | 1400~1700 | Reduced Ball/Race Contact Area Minimum Ball Deformation Less Friction More Rigid Less Wear Lower Operating Temperature |
| Young's Modulus (Gpa) | 206 | 314 | |
| Poisson's Ratio | .30 | .29 | |
| Magnetism | Ferromagnetic | Non-Magnetic | Reduced Torque in Strong Magnetic Field |
| Conductivity | Conductive | Non-Conductive | No Electrical Arcing Through Balls Less Wear Reduced Race Way Pitting and Fluting |
| Corrosion Resistance | Not Good | Excellent | Less Wear Harsh Environment Durability Longer Life |
Ceramic Bearing Applications :
Full Ceramic ball bearings are used in specialty applications like chemical baths, vacuum environments, semiconductor manufacturing, food processing industries and more. Any extreme environment that requires non-corrosive, non-conductive or non-magnetic bearings is ideal for full ceramic bearings.
Our company information :
| Company name | shanghai shengyue bearing Co.,Ltd |
| Business type | manufacturer |
| Established year | 2012 |
| Business product | all kinds of bearings |
| OWN Brand | SHR |
| Export range | 81%-90% |
| OEM service | offer |
| Our advantages | 1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. To respect customers, you can choose the loading port. 5. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading information :
| Price terms | EXW FOB CNF CFR, CIF |
| Payment terms | L/C ,T/T ,Western Union, Paypal |
| Express way | DHL FEDEX TNT UPS |
| Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
| Packing | 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
Bearing other series product range :
1. Deep Groove Ball Bearings 1600, 623, 607, 6000
2. Deep Groove Ball Bearings (Single) 6200 Series
3. Deep Groove Ball Bearings (Single) 6300, 6400 Series
4. Angular Contact Ball Bearings (Duplex) 3200, 3300, 5200, 5300 Series
5. Deep Groove Ball Bearings (Double) 4200, 4300
6. Angular Contact Ball Bearings (Single) 7200, 7300 Series
7. Self Aligning Ball Bearings 1200, 1300, 2200, 2300 Series
8. Spherical Roller Bearings 21300, 22200 Series
9. Spherical Roller Bearings 22300, 23200 Series
10. Trust Ball Bearings 5110, 51200 Series
11. Taper Roller Bearings 302 Series
12. Taper Roller Bearings 303 Series
13. Taper Roller Bearings 313 Series
14. Taper Roller Bearings 320 Series
15. Taper Roller Bearings 322 Series
16. Taper Roller Bearings 323 Series
17. Taper Roller Bearings (Imperial Sizes Supplied Separately)
18. Pillow Blocks (Normal Duty) UCP 200 Series
19. Pillow Blocks (Medium Duty) UCP X00 Series
20. Flange Units (Normal Duty) UCF 200 Series
21. Flange Units (Medium Duty) UCF X00 Series
22. Flange Units (Normal Duty) UCFL 200 Series
23. Pillow Blocks (Light Duty Pressed Steel Housing) SBP - SAP Series
24. Flange Units (Light Duty Pressed Steel Housing) SBFL, SAFL Series
25. Flange Units (Light Duty Pressed Steel Housing) SBF - SAF Series
26. Ball Bearings UC200, CUC 200 Series
27. Ball Bearings (With Eccentric Locking Collar) SA200, CSA200 Series
28. Ball Bearings SB200, CSB200 Series
29. Disc Harrow Bearings W 200 Series
30. Ball Bearings Units (Load Rating Data)
31. Take-up Units (Normal Duty) UCT 200, UCST 200 Series
32. Plumber Blocks SN/SSN500, SN/SSN600 Series
33. Plumber Blocks (Sealing Arrangements)
