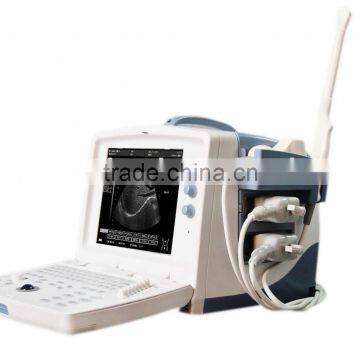

Ultrasonic Diagnostic Equipment HS--3000D2

Specifications

HS-3000D2 Ultrasonic Diagnostic Equipment

Applicable fields

l      Suitable for the diagnosis of Abdomen, Cardiac, Gynecology, Obstetrics, Thyroid Gland, Small Organs, Urology and so on.

l      Widely used for clinical examination and diagnosis. They are the ideal equipments to meet the needs of various kinds of hospitals and clinics.

Leading Digital Technologies

l      DBF: Digital Beam Forming

l      RDA: Real-time dynamic aperture imaging

l      DRA: Dynamic real-time acoustic apodizer

l      DRF: Dynamic receiving focus

l      DFS: Dynamic frequency scanning, frequency range: 2.0-12.0MHz, 4 kinds of scaning frequencies

Advantages

l      Embedded computer platform is adopted in the ultrasonic master system

l      THI

l      DFC Dynamic frequency scanning

l      Histogram, Sectionl drawing, Puncture guide

l      Save hundreds of thousands of images and cine loop permanently

l      Dynamic real-time PIP local zoom functions

l      Double connectors

l      Double USB ports

l      Multiple kinds of OB. measurement reports, fetus physiological grades and reports and

fetus growth curve

l      Auto-create report systems of Gyn., small organs, cardiac, urology and other      sections

l      Compatible of jet printer, laser printer, video printer and video recorder

Image Processing

l      Display mode: B, 2B, 4B, B/M, M

l      Image precess technologies: controllable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation

l      Dynamic Range: 100Db, 4 steps of switches

l      Image magnification, stepless magnification, dynamic real-time PIP local zoom functions

l      Cine loop: 256 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode

l      Image management system: the functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode.

Software Functions

l      Measurement and calculation: measure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic.

l      Assist tools: puncture guide, histogram, sectionl drawing

l      Menu manage interface, real time online support and navigation clew system, image fore-set and one-key optimization functions

l      Auto-measure software of OB., Gyn., small organs, cardiac, urology and others:

l        OB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, FI, LIMP, BBT, FBP

l        Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine

l        Small organs: thyroid gland, hip joint

l        Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP,  CA/CE, MVCF, CO, CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV

l        Urology: remained urine sample, prostate,PSAD

l      Presetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.

l      Patient cases database systems. All the data could be saved, searched and managed

l      Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve

l      Auto-create report systems of Gyn., small organs, cardiac, urology and other      sections

Standard Configuration

l      Main unit

l      10.4 inches SVGA high resolution non-interlaced monitor

l      256 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode

l      Two probe connectors

l      Two USB ports

l      3.5MHz R60/R50 electronic convex transducer(2.0/5.0MHz)

Optional

l      7.5MHz L40 linear probe (5.0/10.0MHz, multi-frequency)

l      6.5MHz R10/R13 trans-vaginal probe (5.0/8.0MHz, multi-frequency)

l      3.5MHz R20 cardiac probe (2.0/5.0MHz, multi-frequency)

l      Trolley

l      Jet printer, Laser printer, Video printer and video recorder

Relative extended ports

l        VGA, S-Video, TV video port

l        USB2.0 port, 2G saving card

l        RJ-45 network port

l        Multiple kinds of saving modes are all supported, containing soft disk, hard disk, falsh disk, CF card, SD card and others.

l        Compatible of jet printer, laser printer, video printer and video recorder
