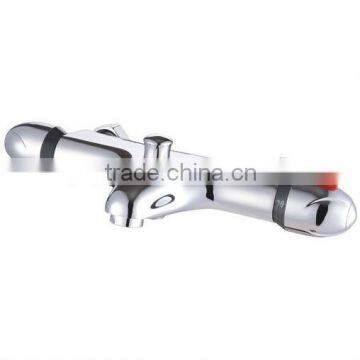

High Quality & Luxury Brass Thermostate Bath Faucet, Chrome Finish and Wall Mounted

1 x Mixer

1 x Wall Mounted Fitting Parts

Hand Shower and Hose can be add after requeted and confirmed

PACKING

(1) HUMANITY: Control the mixing water from 20°c-50°c, the good temperature is 38°c for shower.

(2) SAFE: If the Cold water break off suddenly, Thermostatic Mixer will close automatically, Avoid Scald.

(3) Easy: good for younger and older, there is a safe lock button on the right handle(temperature adjust handle), if adjust the mixing water higher 38C, Thermostatic Mixer system request to press the button, prevent mistake adjust from scald user.

(1) In usually left for cold water, right for hot water, there is a marker on the body also, Blue for Cold, Red for Hot.

(2) If the inlet water temperature or pressure was varietied, the mixing water temperature will variation in ±2°c, adjust the termperature again.

(3) If the inlet cold and hot water pressure ratio is 8:1, please install the pressure-limiting valve.

Repair or Replace the faucet that won’t stop leaking with the help of the articles found in this section. With the detailed step-by-step guides, you’ll be able to install a new faucet in any of the room of your house. Now you can save both your time and money by saying goodbye to waiting around for high priced plumbers.

First of all, you need know the basics of your faucet. Read following tips and find out your fauct type, then, you will know how to repair your kitchen or bathroom faucet.

• Usually combination style, where hot and cold mix in a single arm.
• Available in different patterns, they can be built into the wall or flush mounted on the wall above the bathtub.
• In three-valve bath and shower faucets, two valves control water and a third diverts water either through the spout or to the showerhead.
• Two-valve tub and shower faucets have an automatic device on the spout that, when activated, diverts water to the showerhead.
• Two-valve tub fillers and shower fittings fill either the tub or control water in the shower, as do the tub and shower faucets

• The Wall-Mounted unit is connected to pipes coming through the wall above the sink. It is mounted vertically.
• The most common size in kitchen sink faucets is 8″ center, but 6″ and 4″ are also available.
• Concealed faucets are mounted underneath the sink, with only handle flanges and spout visible.
• Exposed faucets are mounted on top of the sink, with or without sprays.
• A mixing faucet, known generally as single lever, is produced by a number of manufacturers as swing spout kitchen faucets, lavatory faucets and bath faucets. They ordinarily operate by pushing the upright lever straight backward for a 50-50 opening of hot and cold water, back and to the right for cold, and back and to the left for hot water. They have the advantage of being quick-opening and closing, and nearly all have complete repair kits.
• An Over-The-Counter faucet is easier to install because there is no need to crawl under the sink and reach behind the basin to secure the faucet. It comes with factory-installed flexible supply lines and a spring-loaded toggle, with the screw head concealed by the escutcheon.

• When repairing a faucet, line the sink with a towel to keep tools from damaging the basin. This will also keep small parts from sliding down the drain.
