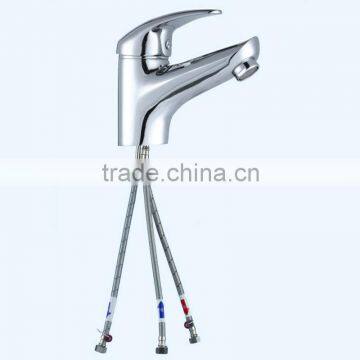

| DESCRIPTION | | Item No.: | X8691B | | Material: | Solid Brass (Cu≥59%, Pb<1.8%, Fe<0.3%), Zinc Handle | | Color: | Polished, Chrome, Shining Permanently | | Assembly Parts: | Brass Faucet + Zinc Handle + Ornament Cover + Cartridge Cover + Ceramic Cartridge + Aerator + 3 PCS Steel Braided Hose | | Usage: | Wash Basin or Heater | | Accessories: | 1 x Faucet 1 x Set of Deck Mounted Fittings 3 x Knitting Hose (A, B, C) 3 x Seal Rubber Ring 2 x Reducer for Pressure | | Packing: | 1PCS / Box, 8PCS / Carton |
| | PARAMETER | | Water Pressure: | Recommend Pressure: 1-5 Bar, if the hydraulic pressure more than 6 bar, it requeted to use pressure reducer | | Temperature: | ≤90°c | | Cartridge: | Ø35MM or Ø40MM Ceramic Cartridge, ≥500,000 Times Open & Close | | Aerator: | ABS Aerator with Brass Shell, Water Saving | | Plating: | Nickle (3.5-12um), Chrome (0.1-0.3um). Shining permanently | | Weight: | 1076G | | Installation Type: | Deck Mounted, Ø32-Ø40MM Single Hole | | Warranty: | 5 years |
|
|
| PRESSURE & FLOW RATE | | Water Pressure | 5 Liter Restrictor | 8-10 Liter Restrictor | Small in Stand | | 2 bar | Without Restrictor | Without Restrictor | Without Restrictor | | 4 bar | Short Restrictor | Short Restrictor | Without Restrictor | | 6 bar | Long Restrictor additional on angle valve regulated to 5 liter / minute | Long Restrictor additional on angle valve regulated to 10 liter / minute | Without Restrictor |
|
|
| |
| TERMS & SHIPPMENT | | Payment: | (1)Escrew, (2)Western Union, (3)Paypal, (4)T/T {30% Deposit in Advance, 70% Balance before Shipping} | | Terms: | (1)FOB Ningbo or Shanghai, (2)CFR, (3)CIF | | Shipping: | (1)Express Air Mail {5-10days}, (2)Airfreight {7-15days}, (3)Sea {25-50days} |
|
|
| F A Q | | Q: | Why we call this item Mixer? | | A: | It Mix the Hot and cold water, turn the handle left for hot water, right for cold water, you can adjust the mixing water for use. | | Q: | Why choice Xinli Mixer? Is it any advantage? | | A: | The answer is Yes. There is 5 advanatages. (1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in same quality. (2) CUSTOMIZE: We can make the product as your want, Shap and Quality can be meet your request. (3) OEM: (1)Laser Print your Logo (100PCS). (2)Design your packing box(1000PCS). (4) MIX ORDER: We accept mix order, different model and small quantity order. (5) AFTER SERVICE: (1)5 Years Guarantee. (2)If some parts was broken, our will send new parts to repair after confirmed. | | Q: | Can i order one piece for sample to test the quality? | | A: | Yes, We recommend to check the sample before order. Please order the sample in our online store. | | Q: | May i have your catalogue and price list for trial order in MOQ quantity? | | A: | Our all products were showed on alibaba, please have a detail looking and choice the interesting models in our site. MOQ price was marked the above, please find it on the top of this page. | | Q: | If i want cheaper quality, can you produce? | | A: | Yes, Just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price. | | Q: | If i order big quantity, what's the good price? | | A: | Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Price Term, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible. | | Q: | Can i order in alibaba and pay by escrow for safe trial business? | | A: | Yes, Absolutely. |
|
|
| WARM SUGGESTION | | 1. | Laser print logo if quantity more than 100 pieces | | 2. | Free design color box if quantity more than 1000 pieces | | 3. | Free design new mould if quantity more than 5000 pieces |
|
| | PROCESS SCHEME | | 1. | Making Iron Mold - Sand Mold - Raw Brass Mateiral - Feed - Casting - Examination I | | 2. | Machinery Processing - Examination II - Polishing - Examination III - Plate Chrome - Examination IV | | 3. | Assembling - Water & Air Testing Examination V - Packing - Delivery |
|
|
|
| |
| CLASSIFICATION | | 1. | Material. (1)Brass Mixer. (2)Stainless Steel Mixer. (3)Glass Mixer. (4)Zinc Alloy Mixer. (5)Plastic Mixer. | | 2. | Usage. (1)Basin Mixer. (2)Kitchen Mixer. (3)Bath-Shower Mixer. (4)Shower Mixer. (5)Bidet Mixer. (6)Shower Set. (7)Bathtub Mixer. | | 3. | Installation. (1)Deck Mounted Mixer. (2)Wall Mounted Mixer. (3)In Wall Conceal Mixer. (4)Floor Mixer. | | 4. | Handle. (1)Single Handle Mixer. (2)Double Handle Mixer. (3)Triple Handle Mixer. | | 5. | Function. (1)Normal Mixer. (2)Thermostatic Mixer. (3)Automatic Sensor Mixer. (4)Low Pressure Mixer. (5)Led Light Mixer. (6)Self-closing Delay Mixer. (7)Electrocity Heater Mixer. (8)2 Way Outlet Water Mixer. | | 6. | Color. (1)Chrome Mixer. (2)Nickel Brushed Mixer. (3)Bronze Mixer. (4)Black Mixer. (5)White Mixer. (6)Painting Mixer. | | 7. | Water. (1)Hot and Cold Water Faucet. (2)Cold Water Faucet. (3)Purifying Water Tap. |
|
|
| INSTRUCTION | | 1. | Tools. (1)Spanner. (2)Screwdriver. (3)Flashlight. (4)Teflon Seal Tape. (5)Drill. (6)Lever Ruler. (7)Roll Ruler. | | 2. | Installation. (1)Please set the water flush pipe before install the faucet, clear the dirty and impurity inside of pipe, to prevent the faucet block in working. (2)Faucet Left coming in Hot Water, Right in Cold Water. (3)Please don't make the faucet touch any hard things, keep the surface shine. (4)After installed the faucet, please loose the aerator and open the faucet to let the water clear out the dirty and impurity again, and then faten the aerator. (5)Chek and fixed all connection part tight and seal. | | 3. | How to use? (1)Pull the handle upward, the faucet was open, the upper the more water flow. In opposition, the flow slower to stop. (2)Open faucet turn left or right to adjust the mixing water temperature, turn left for hot water, right for cold water. (3)As for the bath-shower faucet, if pull upward the diverter, the water will change out from hand shower, and push down, the water will come out from spout aerater. | | 4. | Maintenance? (1)Clear the faucet surface in time, with clear water and soft cloth, you can choice faucet cleanser to clean the dirty if possible, to keep the faucet shine. (2)After clean the faucet with cleanser, use cloth to dry the faucet. (3)If the water flow going small, please open more the angle valve. (4)If aerater water is splashed, please loose the aerator and clean the dirty or impurity, and then fasten it back. (5)If the faucet was leaking or cannot close after used a long time, please change the cartridge, loose the handle and Hex Nut, change the new cartridge, and fasten all parts back. |
|  |
|
| FAUCET ACCESSORIES | | 1. | Angle Valve. (1)Size: M1/2-M1/2and M1/2-M3/8. (2)Material: Brass Angle Valve and Zinc Angle Valve. (3)Function: Open and Close the Water. (4)Usage: Install under the faucet, control the water to faucet. | | 2. | Drainer. (1)Material: Brass Waste and Zinc Waste. (2)Style: Pop Up Waste, Pull Waste, Universal Waste. (3)Function: With Overflow Hole (Ceramic Washbasin), Without Overflow Hole (Glass Basin). (4)Size: 11/4. (5)Usage: For Basin Faucet and Bidet Faucet. | | 3. | Hand Shower. (1)Material: ABS Hand Shower, Brass Hand Shower, Stainless Steel Hand Shower. (2)Shape: Round Hand Shower, Square Hand Shower. (3)Sprayer: 1 Function Hand Shower, 3 Function Hand Shower, 5 Function Hand Shower. (4)Size: Connection Screw size is M1/2. (5)Usage: Use for Bath-shower Mixer, Shower Mixer, Shower Set, In Wall Conceal Mixer, Bathtub Mixer, Floor Mixer. | | 4. | Shower Hose. (1)Material: Stainless Steel Hose, Brass Nipple. (2)Inner Pipe: EPDM and PVC. (3): Nut: Brass Nut and Zinc Nut. (4)Size: F1/2 x F1/2 - 150CM, F1/2 x F1/2 - 200CM. (5): Lock: Double Lock and Single Lock. (6)Plate: Chrome and Electro. (7)Usage: Use for Bath-shower Mixer, Shower Mixer, Shower Set, In Wall Conceal Mixer, Bathtub Mixer, Floor Mixer. | | 5. | Shower Holder. Installed in Wall, use for holder the hand shower. | | 6. | Teflon Seal Tape. It was used for screw nut, to seal the water no leaking. | | 7. | Change Valve. This Valve can make the Hot and Cold mixer installed in only cold water, change the water supply coming in. |
|
|
| REPAIR AND REPLACEMENT | Repair or Replace the faucet that won’t stop leaking with the help of the articles found in this section. With the detailed step-by-step guides, you’ll be able to install a new faucet in any of the room of your house. Now you can save both your time and money by saying goodbye to waiting around for high priced plumbers. First of all, you need know the basics of your faucet. Read following tips and find out your fauct type, then, you will know how to repair your kitchen or bathroom faucet. | | Compression Faucet | - Also known as a washer-type or stem faucet.
- When the spindle is turned down, the washer or disk attached to its lower end is pressed tightly against a smoothly finished ring or ground-seat that surrounds the flow opening to shut off the water flow. If the washer and seat do not make a firm contact at all points, water will leak. This usually happens when the washer becomes worn.
- Seats in faucets that are not removable may be reground with reseating tools.
| | Faucet Repair Tips | - When repairing a faucet, line the sink with a towel to keep tools from damaging the basin. This will also keep small parts from sliding down the drain.
|
|
|
