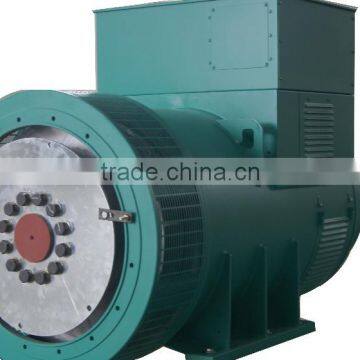

1800 Rmp 240V Three Phase Brushless Dynamo

1.Electrical Character
Excitation system: The main stator supplies power to exciter stator via Automatic Voltage Regulator (AVR).The output of exciter rotor is fed to the main rotor through a three phase full wave rectifier. There are varistors at the both ends of the rectifier for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss. Exciter stator is equipped with permanent magnetic steel in order to start up the alternator smoothly in any occasion.

2.Windings and electric features
Standard 2/3 pitch windings design can eliminate the triple frequency harmonics on the voltage waveform which is the optimum design for trouble-free supply of non-linear loads.

3.Shaft & key
All generator rotors are dynamically balanced to better than BS6861: Part 1 Grade 2.5 for minimum vibration in operation. Two bearing generators are balanced with a half key.

Material Feature

1. Magnetic alternator---- provide invariable excitation in any situation.

2.100% copper wire---- The material is Essex 800 international   standards.

3.Cold rolled silicon----Wugang Brand, 800 Series

Our products are used in different kinds of fields. Such as hotel’s standby power; Mine Generator;Marine generator and so on

Trade Information

We are ISO 9002,CE, its certified for leadership in quality, environment and safety management systems.

Packaging Detail:

Shipping the products by sea after receiving the order

Using plywood case packaging

Using packaging film to dust

     Wuxi Frand Generator Technology Co., Ltd. is engaged in the research, development, design, production,sale and services of brushless alternators and generators. Our factory covers an area of about 5,000 square meters, with more than 30 sets of advanced production equipment. The factory has 5 years experiences of production. Our products are designed in accordance with international standards. We can offer all kinds of engines with famous brands, such as Cummins, Deutz, MTU, Perkins, Volvo, etc.

    Now our company has strong technical strength and advanced production equipment. We have a professional team. With rigorous and humane management, we aim to establish a sound sales and service network. We are committed to building famous brands in the field. In the future, we will provide new and old customers with the first-class products and the first-class service.

     Our company participate Meddle East Electricity Exhibition in Dubai in April 2013 and 12th China (Shanghai) International Power and Generating Sets Exhibition in February 2013.Our company’s partners are covered in Africa; Europe and Asia. Our products are very popular with customers.

Wuxi Frand Generator Technology Co., Ltd.

Fax: 86-0510-88895688

TEL: 86-0510-88878802

Address:No. 78, Danshan Road, Anzhen Street, Xishan District, Wuxi City China

Q1: Is your business a manufacturer or just a supplier?

A: We are a specialized manufacturer of alternator from Jiangsu, mainly are providing OEM and ODM service for some big brands

Q2: What is the quality of your components?

A: 100% Essex pure copper wire, cold rolled silicon (Wugang Brand, 800 Series)

Q3: Could you also supply spare parts for all alternator for repairs?

A: Of course spare parts will be provided

Q4: Can you provide OEM brand service on product and packaging?

A: Of course we could, we have rich experience in providing OEM service for some brands from all over the world.

Q5: What kind of payment method you could do?

A: PayPal, Western Union, T/T ,L/C are accepted. And welcome to place order to us by Alibaba trade assurance.
