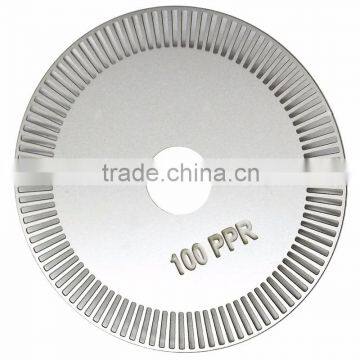

Etching transmissive Rotary Codewheel

Etching transmissive Rotary Codewheel

Custom absolute rotary encoder disk wheers manufacture

Advantages:

1.Competitive pricing and most importantly quality control.

2.Modifications for machining flat Complex metal parts would incur no tooling or set-up costs.

3. High Precision Metal Etching Process.

4. All the holes are clean, sharp, and burr-free with no heat affect zone.

5. Pass the audit from SGS.

6. Quality guarantee (ISO management).

7. No harmful to people, environment friendly products.

8. Strict inspection before despatch.

9. RoHS and CE compliant.

10. OEM and ODM welcome.

Short Lead Time - Standard lead time within 8-12 days.

Photo Chemical Etching Products:

• EMI/RFI shielding
• Encoder wheels
• Linear encoders
• Components
• Shim mask

• Etching craft

• Ornaments

• Precison machinary parts
• Screened meshes / filters

Photo Chemcial Etching Materials - Stainless steel 201, 202, 301, 304L, 304, 316, 316L, Iron 430, Aluminum, Copper, Brass etc.

Material Thickness - Between 0.01" and 1.97"

Tolerances - Tolerances can be held to +/-0.0002 of an inch (0.005 mm) depending on thickness of material.

Low Tooling Cost -  Photo-tools are produced using AI or CAD design with film to transfer image.

Tool Modification - Photo Chemical Machining allows the designer to make tooling changes in a matter of hours.
