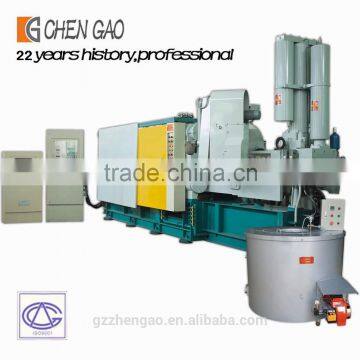

22 years brand CHEN GAO 650T high pressure automatic aluminium alloy die casting machine
- 30 Set / Sets per Month
- Guangzhou
- T/T
You May Like
-
22 years CHEN GAO brand 300T high pressure automatic cold chamber die casting machine
-
22 years history CHEN GAO brand 400T cold chamber die casting machine
-
22 years history CHEN GAO brand 180T cold chamber die casting machine
-
22 years history CHEN GAO brand 650T cold chamber die casting machine
-
22 years history CHEN GAO brand 180T aluminium metal injection machine
-
22 years history CHEN GAO brand 300T aluminium alloy die casting machine
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | CHEN GAO | Model Number | ZG-650 | |
| Power(W) | 37kw | Dimension(L*W*H) | 8300*2020*2950 mm | |
| Weight | 28ton | Certification | CE ,ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Company brief :
Guangzhou Chen Gao Die-Casting Machinery Co., Ltd. was established in 1993,and located in Guangzhou city ,China .Major in manufacturing high pressure automatic zinc alloy die casting machine (30ton—280ton)and high pressure automatic aluminium alloy die casting machine(130ton---1,000ton) . Good quality and favorable price .
high pressure automatic aluminium alloy die casting machine
Model :ZG-650
1 Computer controled
2 Double pump and double proportional pressure folw rate control adopted for hydraulic system .
3 Cabin type structure is adopted for front and secondary platens with high rigidity and comparable lighter weight .
4 Enhanced ribs are adopted for tail platen and C type frame ,more stong .
5 Design with especially large die height ,and larger than similar type of machine .
6 Mould adjustment gear wheel with hydraulic type has stable transmission ,convenient operation and precisely durable .
7 The automatic lubrication system with type of integrated capacity has made every rotating pairs of machine hinge obtain good lubrication .
8 The machine is even symmetric and beautiful in configuration ,firm and strong . The safety door structure with unique design is safe and reliable .
9 Water-cooling and plunger lubrication system are equipped along with the machine ,and to assist the whole machine to achieve reliable and safety production .
10 Our patent :furnace can save above 30% energy .
3. Specification of high pressure automatic aluminium die casting machine :
| MODEL | ZG-650 | |
| LOCKING FORCE | ton | 650 |
| SPACE BETWEEN TIE | mm | 780×780 |
| MOLD THICKNESS | mm | 350~900 |
| DIE HEIGHT | mm | 160 |
| DIE STROKE | mm | 660 |
| PLATEN SIZE(W×H) | mm | 1296×1448 |
| INJECTION FORCE | ton | 25.6~60 |
| SHOT POSITION | mm | 0 / -200 |
| CASTING STROKE | mm | 600 |
| INJECTION PLUNGER DIAMETER | mm | 80/90/100 |
| CASTING PRESSURE | kg/cm2 | 1198/947/767 |
| CASTING AREA | cm2 | 542/686/847 |
| CASTING WEIHGT | kg | 5.9/7.5/9.2 |
| EJECTION FORCE | ton | 32.8 |
| EJECTION STROKE | mm | 150 |
| WORKING PRESSURE | kg/cm2 | 145 |
| MOTOR RATING | KW | 37 |
| CAPACITY OF OIL TANK | L | 750 |
| WEIGHT OF MACHINE | ton | 28 |
| MACHINE SIZE | mm | L 8300 |
| W 2020 | ||
| H 2950 | ||
