Home > Products > LIFT TABLE > LIFTING TABLE

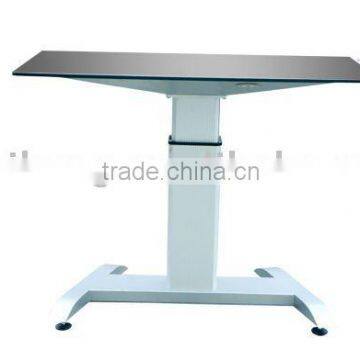

LIFTING TABLE
Negotiable
/ Set
50 Sets(Min.Order)
- 100 Set / Sets per Month
- SHENZHEN
- T/T Credit Card
Product Details
| Place of Origin | Guangdong, China | Brand Name | goodhealth | |
| Model Number | HK-LTDL-D | Lift Mechanism | Screw Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 50W | |
| Rated Loading Capacity | 100KGS | Min. Lifting Height | 200MM+STROKE | |
| Max. Lifting Height | ACCODRING TO CUSTOMER SIZE | Table Size | ACCODRING TO CUSTOMER SIZE | |
| Overall Dimensions | ACCODRING TO CUSTOMER SIZE | Weight | 40KGS | |
| Certification | CE, CE | Warranty | 2 years |
Product Description
Technical specifications
Drive type | DC motor drive |
General table | 1000mm 1200mm 1500mm (optional) |
Corner table | 1200*1200mm 1500*1500mm (optional) |
Basic height | 600-750mm (optional) |
Maximum height | 900-1150mm(optional) |
Stroke | 300-400mm |
Speed | 6mm/s 12mm/s 18mm/s 24mm/s 36mm/s |
Input voltage | AC100-240V |
Motor voltage | DC24V |
Load capacity | 100KG |
Protection type | Overload, shortcutprotection, automatic functional recovery |
Ambient Humidity | -25°C- +40°C |
Relative Humidity | 20%-80% |
Altitude | Not exceeding 1000m |
Protection classification | IP44 |
Operation mode | Intermitten work at 2min.interval |
