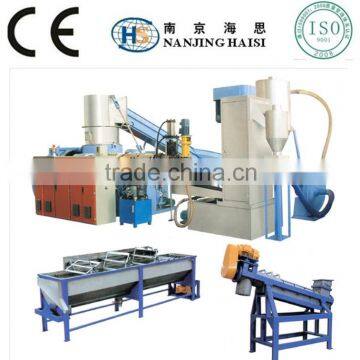

PP/PE Film Washing/crushing / Recycling and drying Line/plastic machines recycling

 Product Description of plastic washing recycling line

 1.Masterbatch

 2.Plastics modification

 3.Fiber glass reinforcement

 4.Cable compounds

 5.Alloy plastics

 6.Powder coating and toners, etc

 Application:

1. Enhanced modification: PE, EVA, etc. with calcium sulfate, talc, titanium dioxide, carbon black;
2. Biodegradable Masterbatch: PE, PS etc. with starch, additives, etc.;
3. Flame retardant masterbatch: PE, EVA, etc. with antimony trioxide, magnesium hydroxide, aluminum hydroxide.

Reference Values

 Mixing modification

PE,PP,PS+SBS,PA+EPDM,PP+NBR,NVA+silicon rubber,etc

PE,PA,PC,CPE+ABS(ALLOY),ABS+TPU,PBT+PET,PE+PP,etc

 Filling modification

/ PE,PP,EVA,etc+Calcium carbonate,talcum power,titanic powder

/ABS,PC,PS,etc+aluminum hydroxide,magnesium hydroxide, antimony oxide

 / PP,PA,ABS+ferrous powder,sulphuric powder,ceramic powder

 Functional masterbatch

 PBT,etc+burning agent and other auxiliary agents: combustion-supporting machine pellets

 PP,PE,PS etc+starch:de-composing machine pellets

 PE+fog-preventing dipper,stabilizer: dual-prevention machine pellets

 PE,EVA,ABS+carbon black:black machine pellets

Colored masterbatch

 PE,PP,ABS,AS,PA,EVA,PET+pigment and auxiliary

Carbon fibers reinforcemen

/PP,PBT,ABS,AS,PA,PC,POM,PPS,PET,etc+long fibers, small fibers,carbon fibers,crystals and so on

 Various cables

/ HDPE,LDPF,LLDPE,MDPE,EVA,PVCetc+Insulating cables,coatings,PE peroxide,silicon alkyl crossing cables

 Special materials

/ EVA heat-melting glue,polyurethane,fluorin rubber,fluorin plastics,PP cigarette filtering material and TPR sole material

 Reaction extruding

 / Polyamide condensate,polyamide melting polymerization,polyamide polyethrne-adding,polycarbonate condensate,etc

 Exhausting and Volatilization

 / Polystyrene oxide,high-absorbing resin,chlorine sulphur polyethylene  Powder paint Polyester,ring oxide,lactide,polyurethane,acrylate

Co-rotating Parallel Twin-screw Extruder Features
1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function,
the new kneading block design effectively avoid the problems of overheating and energy consumption.

2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure, screw array,
venting number and location, feeding method, electrical control methods etc. for rational allocation.

3. Granulation system: water-cooling strand pelletizing, air-cooling die face hot cutting, water ring die face hot cutting,
Eccentric water mist hot cutting, water and underwater die face hot cutting and so on.

4. Application: Filling Modification, glass fiber (carbon fiber) enhance various kinds of master batch,
rubber and plastics compounding, plastic alloys, functional master batch, Various kinds of electric cable material,
reactive extrusion. Devolatilization process, powder coating and so on..

TSE-65

Reference Values

Mode                 mm            L/D              R/MIN            KW             N.m             KG/H

TSE-20               22            32-44              600                5.5                 4                  1-10
TSE-30A            31             32-48              600                15                119                5-40
TSE-40A            41             32-52              600                15                119               65-110
TSE-40B            41             32-52              400                22                263               90-150
TSE-52B          51.5            32-64               600               75                 716             250-300
TSE-75B            71             32-64               600               132              1050            350-550
TSE-75D            71             32-64               600           220-250           1990            500-1000
TSE-95A            93             32-64               500               250              2387            600-1000
TSE-95B            93             32-64                600              315              2506            800-1200
TSE-135            133            32-64                500              750              7162          1500-2250

Security Protection:

upling can effectively protect the reduction gearbox from extrusion unit overload dangers.
2.water-cooling system and lubrication systems are all real-time online monitoring.
3.drive ead pressure and melt temperature are all equipped with alarm systems.

 (Air-cooling hot face pelletizing system / Air-cooling die face pelletizing system)

Air-cooling die face pelletizing mainly used in materials whose moisture can easily result in product poor quality.

Since the material has no contact with water in the whole granulation process, so eliminating the dehydration part,
to avoid the second pollution of cooling water. The die face hot-cutting material particles look round, full and beautiful.

Auxiliary Equipment

(Electric control system)

(crusher )

(vibrating screen with  cooling)
