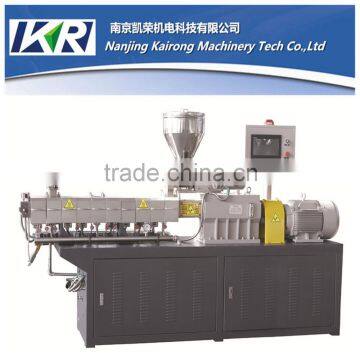

TSE-65B small parallel co-rotating twin screw extruder

Application

special for waste plastic recycling, and convert to PP PE PET PS ABS PA PVC etc granules.

Two stage machine has better performance in recycling pvc.

1. Electric control system for twin screw extruder

Frame structure control cabinet

Imported electrical elements

Imported temperature control system

Imported driving system

Interlock and multi-protection

Adopting imported PLC (OMRON or SIMES ) to achieve optimized process control.Stronger function, steady   performance and much higher accuracy.

It can be also accomplished full-set link-lock protection,trouble safeguard, fault alarm cluing and so on

Operation interface on touching screen is visual and marked, which is brief and easy to use.

2.The Gearbox  for twin screw extruder

New-style project of parallel three-axises driving makes the convey axis,convey chain,decelerate and the torque assignment get together,which keeo it compact,and the key bearings are imported.

The select material of drive components is dainty. Including super intension alloy cementiteing steel,cementiting and quenching ,gear grinding technics ,strengthening of tooth face.So they can ensure high torque,high precision and low noise.

Soakage and coerce lubrication integrate smoothly.When the hydraulic circuit is over pressed, it alarms

3.Mixing and Feeding system  for twin screw extruder

4.The Screw Barrel  for twin screw extruder

Euro-style rectangle barrel,reflux refrigeration is optimized and disposed,which makes temperature difference in C areas smaller

According to the material and special techinics demands,the material of cylinder can use high quality nitrided steel,corrosion proof or antifriction with corresponding process

The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament

5.Twin screw extruder display  for twin screw extruder

6.pelletizer  for twin screw extruder
