Double Stage Water Ring Hot Die Cutting PE Granulating Machine

Machine Details:

1. Main Extruder
A. Model 250 Hard-teeth Gearbox with oil pump
B. Screw Dia.:140MM
C. Barrel Outer Dia.:200MM
D. L/D Ration:1:22
E. Screw Length:3000MM
F. Screw Barrel Material:38CrmoAlA
G. The barrel should be designed in two halves.
H.Material Hopper: designed with compulsory feeder to push the crushed scraps into screw barrel faster. Feeder motor: 1.5KW-6P with inverter control

2. Sub Extruder
A. Model 180 Hard-teeth Gearbox with oil pump
B. Screw Dia.:120MM
C. Barrel Outer Dia.:180MM
D. L/D:1:10
E. Screw Length:1200MM
F. Screw Barrel Material: 38CrmoAlA

3. Cutting Method: Water-ring three knives hot cutting
4. Output: 150—230KGH
5. Main Screen Exchanger and Sub Screen Exchanger: Hydraulic controlled screen changer; the entry of screen should have a conical degree to avoid the sieve dropping down.
6. Main Motor Power:55KW, 4P
7. Sub Motor Power:15KW, 4P
8. Main Extruder, sub extruder and cutter are controlled by Shanghai Pioneer inverter
9. Heating Method : Ceramic heating ring for main extruder, stainless heating ring for sub extruder
10. PID Temperature Controller: 11 zones
11. Hi-Speed Centrifuge Dryer ,Motor Power:5.5KW
12. Cyclone device with storage hopper: Fan Motor Power: 1.5KW
13. Machine Weight:5000KG
14. Machine Dimension:18M*2M*2.4M

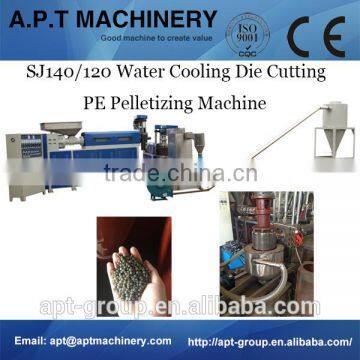

Machine Photos:
