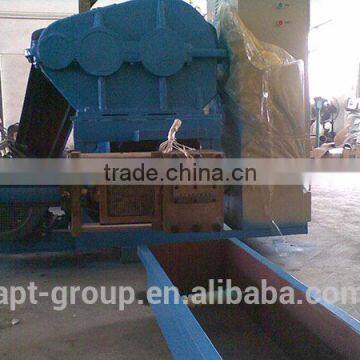

YJSJ-90 PSP Granulator/EPS Foam Recycling Machine/PS Foam Granulation Machine

Usage:

This YJSJ-90 PSP Granulator is used for pelletizing eps foam waste food containers,boxes, plates etc. During production of EPS foam disposable items, such as eps foam lunch boxes, food containers, plates, dishes, trays, bowls etc, there will be waste scrap or deffective formed products. Then we could use our YJSJ-90 PSP Granulator to recycle these waste into granules, and use it to make new EPS foam sheet rolls.

Main Technical Parameter:

Max.Output: 90~130 kg/hr

Main Motor Power: 18.5KW,

Heating power: 30 KW

Machine Configuration:

1.     EPS Foam Sheet Crusher  1Set

a. The rotation speed: 20r/min

b. Motor Power: 11 KW (6P)

c. Feature: Noiseless during feeding, with force feeding device for EPS foam waste scrap, no need crusher, it is especially suitable for irregular EPS waste scrap.

d. Hopper Mouth Size(for feeding): 719 mm(L)*450 mm(W).

h.Output is depended by the speed of feeding material.

2.     SJ-90 EPS Foam Pelletizing Machine       1 Set

a. Material: high quality 38CrMoALA nitrogen treatment.

Effective L/D ratio of screw 25:1

b. Motor: 7.5KW (6P)   1 Set

c. Gearbox:  SJLA-400 high quality gearbox for EPS

d.Automatic hydralic screen changer(180mm*180mm)

3.     Electrical Control Cabinet   1 set

a.Temperature Controller adopts double display intelligent temperature controller

b.AC contactor adopts famous Chinese brand DELIXI

c.The thermorelay protects motor when “urgent stop” swith is turn on.                       d. Water Cooling Tank: 1 Set

f. High Speed Cutting Machine: 1Set

Manufacturing Workshop:

VIDEO LINK

/watch?v=YC_eSQNzB_E
