Home > Products > New Products > 5.8G Wireless A/V Sender

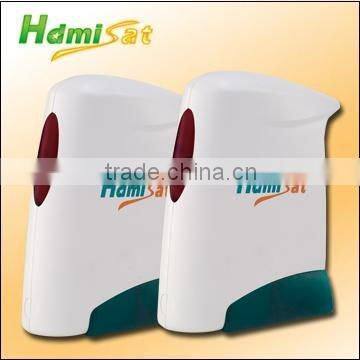

5.8G Wireless A/V Sender
- Shenzhen Port
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HDMISAT | |
| Model Number | HAV-5801 |
Product Description
Specifications
A/V Sender:1.5.8GHz wireless transmitter
2. 433.92MHz infrared control
3.NTSC/PAL video format available
4.CMOS
5.8G Wireless A/V Sender
Product Picture:
Detailed Info:
Features:
1. 5.8GHz wireless transmitter and receiver with 8selectable channels (Dip Switch)
2. 433.92MHz infrared control radio return feature
3. Antenna (5.8GHz) are embedded into housing inside
4. Compatible with Camcorder or CMOS camera application
5. Low power consumption
6. NTSC/PAL video format available
7. The equipment realizes that several televisions share one set-top box or DVD
8. Range up to 100m (L.O.S.)
9. Ideal for microwave anti-jamming capability
Specifications:
Input signal | RECEIVER | ||
Item | Specification | Item | Specification |
Frequency | 5725MHz~5865MHz | Frequency | 5725MHz~5865MHz |
| Sender Power | 17dBm(Typical) | Receiver Sensitivity | -85dBm(Minimum) |
| Channel Number | 8 | Channel Number | 8 |
| Frequency Stability | ±100 KHz(Typical) | L.O. Stability | ±100 KHz(Typical) |
| Video Input Level | 1 Vp-p(Typical) | Video Output Level | 1 Vp-p(Typical) |
| Audio Input Level | 1 Vp-p(Typical) | Audio Output Level | 1 Vp-p(Typical) |
| Supply Voltage | 9V | Supply Voltage | 9V |
| Current Consumption | 500 mA(Typical) | Current Consumption | 500 mA(Typical) |
| Dimension | 148Dx126Wx41(Unit is mm) | Dimension | 148Dx126Wx41H(Unit is mm) |
| Operating Temperature | -10°C~ +60°C | Operating Temperature | -10°C~ +60°C |
| INFRARED REMOTE CONTROL RADIO RETURN | |||
Frequency | 433.92MHz | Sender Power | -100dBm |
Modulation/Demodulation | ASK | Receiver Sensitivity | 10dBm(Typical) |
You May Also Like:
| Packaging Details: | 100pcs/CTN Giftbox / Neutral box or as per request |
|---|
For Quolity Garantee:We provide 1% spare for after sales.
