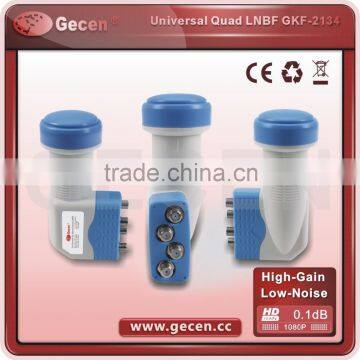

2016 4K digital type Universal Ku-band Quad LNBF/ low noise/high gain/ factory price
USD $3.7 - $3.9
/ Piece
1000 Pieces(Min. Order)
- shenzhen
- Credit Card
You May Like
-
2016 4K digital type universla Ku Band Single Universal LNB for Europe market/ high gain/ low noise/cheap price/good quality
-
2016 4k digital type universal Ku-Band Universal Single LNBF/ku/c band single lnb with factory price
-
2016 4k (Hot Model) Ku Band LNB, Multi grade LNB , Universal dual LNB
-
2016 4K Digital ready Ku-Band Universal Twin LNBF
-
2016 best quality and factory price digital universal ku-band single lnb in china factory
-
HD digital Twin universal ku band LNB GKF-2192
Product Details
| Place of Origin | Guangdong, China | Brand Name | GECEN/OEM, HdmiSat or OEM | |
| Model Number | GKF-2134 |
Product Description
Product Description
Features:
- Full coverage of Ku-Band for Analog and Digital reception
- Low noise figure
- Easy installation
- Low power consumption
- High quality weather protection
Specifications
Item
| Specification | Item | Specification |
Input Frequency Range | Low Band:10.70~11.70GHz | L.O. Phase Noise | -50dBc/Hz@1KHz |
Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
| Noise Figure | Low Band:0.6dB(Typ.) High Band:0.6dB(Typ.) | Output VSWR | 2.0:1(Max.) |
| Conversion Gain | 60dB(Typ.) | Output Power | 0dBm (Min.)(at 1dB gain compression) |
| Gain Flatness | ±0.5dB/26MHz | Connector Type | 75Ω Female Connector |
| Cross POL. Isolation | 25dB(Typ.) | DC Current Consumption | 160mA (Typ.) |
| L.O. Frequency | Low Band:9.75GHz High Band:10.60GHz | Low/High Band Switching | Low Band: 0 Hz High Band:22KHz±4KHz |
| L.O. Frequency Stability | ±1.0MHz(Max.)@+25°C ±2.0MHz(Max.)@-30°C~+70°C | POL. Switching Voltage | 10.5~14.0 V @VP 16.0~20.0 V @HP |
| Operating Temperature | -30°C~+70°C |
