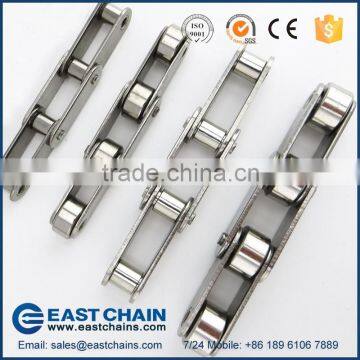

A Series Double Pitch 38.1mm 304 Stainless Steel Conveyor Chain C212A With Small Roller
US$ 5.2 - 5.5
/ Meter
100 Meters(Min. Order)
- Shanghai Seaport
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
A Series Double Pitch 50.8mm 304 Stainless Steel Conveyor Chain C216A With Small Roller
-
A Series Double Pitch 63.5mm 304 Stainless Steel Conveyor Chain C220A With Small Roller
-
Factoty Manufacture Conveyor Stainless Chain
-
A Series Double Pitch 101.6mm 304 Stainless Steel Conveyor Chain C232A With Small Roller
-
A Series Double Pitch 25.4mm 304 Stainless Steel Conveyor Chain C2042 With Big Roller
-
A Series Double Pitch 31.75mm 304 Stainless Steel Conveyor Chain C2052 With Big Roller
Product Details
| Standard or Nonstandard | Standard | Type | Roller Chain | |
| Material | Stainless Steel | Tensile Strength | High Tensile Strength | |
| Place of Origin | Jiangsu, China | Brand Name | EAST | |
| Model Number | C212A, ANSI Standard |
Product Description
State Of The Art Production
We are better in every detail
Specification
Double Pitch Stainless Steel Conveyor Chain
| East chain NO. | Pitch | Roller diameter | Inner width | Plate thickness | Plate depth | Pin diameter | Pin length | Breaking load | Weight per meter | ||
| P | d1 | b1 | T | h2 | d2 | L | LC | Q | q | ||
| ANSI | ISO | mm | mm | mm | mm | mm | mm | mm | mm | daN | kg/m |
| 208A | 2040 | 25.4 | 7.92 | 7.85 | 1.5 | 11 | 3.94 | 0 | 0 | 960 | 0.42 |
| 208AL | 2042 | 25.4 | 15.88 | 7.85 | 1.5 | 11 | 3.94 | 0 | 0 | 960 | 0.76 |
| 208B | 25.4 | 8.51 | 7.75 | 1.5 | 11 | 4.45 | 0 | 0 | 1240 | 0.45 | |
| 208BL | 25.4 | 15.88 | 7.75 | 1.5 | 11 | 4.45 | 0 | 0 | 1240 | 0.8 | |
| 210A | 2050 | 31.75 | 10.16 | 9.4 | 2 | 15 | 5.08 | 0 | 0 | 1520 | 0.8 |
| 210AL | 2052 | 31.75 | 19.05 | 9.4 | 2 | 15 | 5.08 | 0 | 0 | 1520 | 1.25 |
| 212A | 2060 | 38.1 | 11.9 | 12.57 | 2.5 | 18 | 5.94 | 0 | 0 | 2170 | 1.2 |
| 212AL | 2062 | 38.1 | 22.2 | 12.57 | 2.5 | 18 | 5.94 | 0 | 0 | 2170 | 1.9 |
| 216A | 2080 | 50.8 | 15.88 | 15.75 | 3 | 23 | 7.94 | 0 | 0 | 3890 | 1.9 |
| 216AL | 2082 | 50.8 | 28.58 | 15.75 | 3 | 23 | 7.94 | 0 | 0 | 3890 | 2.9 |
| 220A | 2100 | 63.5 | 19.05 | 18.9 | 4 | 30 | 9.5 | 0 | 0 | 5500 | 3.1 |
| 220AL | 2102 | 63.5 | 39.66 | 18.9 | 4 | 30 | 9.5 | 0 | 0 | 5500 | 5.3 |
| 224A | 2120 | 76.2 | 22.2 | 25.22 | 5 | 36 | 11.1 | 0 | 0 | 8100 | 4.7 |
| 224AL | 2122 | 76.2 | 44.45 | 25.22 | 5 | 36 | 11.1 | 0 | 0 | 8100 | 7.5 |
| 232A | 2160 | 101.6 | 28.58 | 31.55 | 6 | 48 | 14.27 | 0 | 0 | 12500 | 8.2 |
| 232AL | 2162 | 101.6 | 57.15 | 31.55 | 6 | 48 | 14.27 | 0 | 0 | 12500 | 12 |
Equipments
20 Years Roller Chain Manufacturing and Exporting Experience
Applied In More Than 30 Countries
15 working days delivery time
OEM / ODM available
EAST CHAIN provide the world with only the best quality chain.
Material Test Report and Breaking Load Test Report are available for every order.
Perfect Packing and Fast Delivery for every order.
