Home > Products > Nonwoven filter media > air conditioning filter media

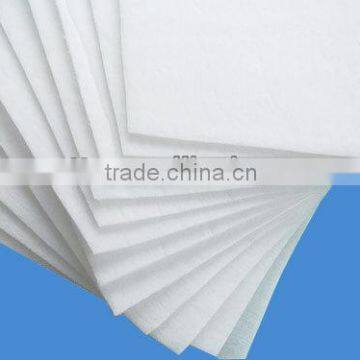

air conditioning filter media

FOB Price

US$ 1 - 3 / Roll

1 Roll(Min. Order)

Port ZHUHAI
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SKTfilter
Model Number	SKT-150G	Type	Non-woven Filter
Usage	Air Filter	Material	Polyester

Product Description

Specifications

synthetic filter media/air conditioning filter media
1.150g/m2,
2. washable 2-3 times,it's strong and not easy to split.

synthetic filter media/ air conditioning filter media
1.150g/m2,
2. washable 2-3 times,it's strong and not easy to split.

Product Description

This series mainly absorbs the larger particles to prevent the early ceiling filter block, it is made from hardened fiber and is covered with glue for hardening and stabilizing the fiber, the hardness and density are better than the same kinds of products, the primary filtration efficiency and the air flow rate have been increased.

Hardened primary filter(blue & white)

This series is made of prolonged and hardened fiber, it is sprayed with special blue glue. The blue glue is able to show the use life directly, when the blue part being covered with dust totally, the filter must be replaced.

Model	AF-200G	AF-150G
Weight:	200gr/sqm	150gr/sqm
Thickness:	15mm	13mm
Air Flow Rate:	1980m3/h	2160m3/h
Initial Resistance:	15pa	15pa
Final Resistance:	200pa	200pa
Medium Arrestance:	77.40%	68.30%
Air Velocity:	0.55m/s	0.60m/s
Dust Holding:	285gr/sqm	254gr/sqm
Max Temperature:	1100C	1100C
Filtration Class:	G3(DIN 24185)	G2(DIN 24185)
Flame Resistance:	F-1(DIN 53438)	F-1(DIN 53438)

Primary filter(white)

AZ series mainly absorbs the larger particles to prevent the early ceiling filter block, it is made from hardened fiber and is covered with glue for hardening and stabilizing the fiber, the hardness and density are better than the same kinds of products, the primary filtration efficiency and the air flow rate have been increased.

Model	AZ-300G	AZ-200G	AZ-150G
Weight:	300gr/sqm	200gr/sqm	150gr/sqm
Thickness:	18mm	15mm	12mm
Air Flow Rate:	1620m3/h	2050m3/h	2160m3/h
Initial Resistance:	16pa	15pa	15pa
Final Resistance:	200pa	200pa	200pa
Medium Arrestance:	82.50%	75.40%	66.40%
Air Velocity:	0.45m/s	0.50m/s	0.60m/s
Dust Holding:	325gr/sqm	269gr/sqm	246gr/sqm
Max Temperature:	1100C	1100C	1100C
Filtration Class:	G4(DIN 24185)	G3(DIN 24185)	G2(DIN 24185)
Flame Resistance:	F-1(DIN 53438)	F-1(DIN 53438)	F-1(DIN 53438)
