Box- Drawing Face Tissue Machine

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Product Type	Facial Tissue
Processing Type	Paper Folding Machine	Place of Origin	Fujian, China
Brand Name	HUAXUN	Model Number	HX-200/2-5
Voltage	380V,50HZ,3 Phase	Power(W)	7.7 KW
Dimension(LWH)	472015002200 mm	Weight	1.7 tons
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

1.Function and Character:

1.This machine adopts vacuum absorption technique and mechanical hand assistant folding principle, which can automatically fold and count tissues.

2.The products finished by it are convenient for packaging.

3.Machine will automatically stop when paper breaks so that to avoid waste products producing.

4.The machine adopts inching drawing jumbo rolls principle which makes operation simple and safe.

5. It is designed according to CE standard and equipped with emergency safety device.

2.Main technical parameter

Model	HX-200/2lines (3 lines output, 4 lines output, 5 lines output and 6 lines output can be optional)
Unfolded size of products	Length 200 × Width 200mm (width from 134 to 200 can be adjustable) ±2mm
Folded size of products	Length 100 × Width 200mm (width from 134 to 200 can be adjustable) ±2mm
Width of jumbo rolls	00mm (12-18 g/m2 ×2 plies) ;22-40g/m²×1(ply), paper should absorb water, oil etc.
Diameter of jumbo rolls	≤1200mm (Other size can be specified)
Paper core inner diameter of jumbo rolls	76.2 mm (Other size can be specified)
Machine speed	about 1200 pieces/minutes
Machine power	7.7KW 380v, 50 Hz;3 phase
Overall size of machine	4720×1500×2200 mm
Weight of machine	1.8T (2 lines)

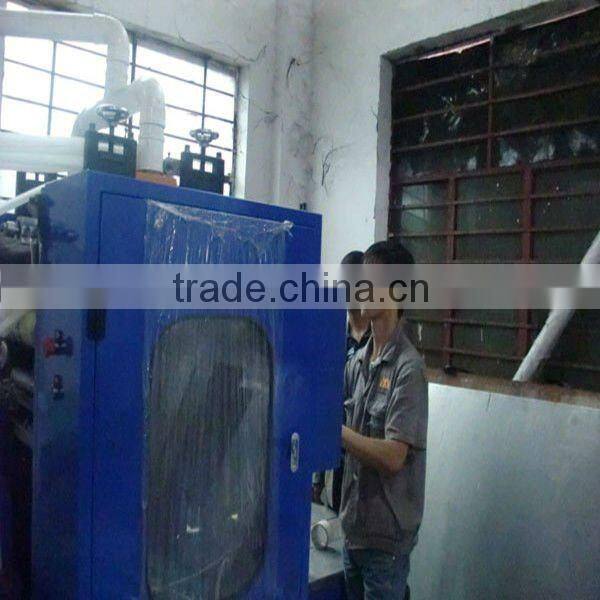

3.Picture
