2016 Salable Product 9060 Laser Engraving&cutting Machine
- Qingdao
- D/P D/A Credit Card PayPal
You May Like
-
2016 Salable Product Fabric Automatic Feeding Laser Cutter
-
2016 Salable Product 1625 Fast Auto Feed Fabric Laser Cutting Machine
-
2016 Hot Sale 1325 Co2 Laser Cutting Machine for Non-metal
-
2016 Hot Sale Cheap Wood /paper Laser Metal Cutting Machine
-
2016 Hot Sale Fabric Co2 80w Laser Cutting Machine for Non-metal
-
China Hot Sale and Low Price 150W Co2 Laser Cutting Machine of 1300*2500 for Seat Cover
Product Details
| Condition | New | Laser Type | CO2 | |
| Engraving Area | 900*600mm | Engraving Speed | 900mm/s, 1000mm/s | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported | AI, BMP, DST, DWG, DXF, PLT | |
| Place of Origin | Shandong, China | Brand Name | Dowell | |
| Model Number | DW-9060 | Dimension(L*W*H) | 1550*810*1070mm | |
| Certification | CCC, CE, GS, ISO, SGS, UL | After-sales Service Provided | Engineers available to service machinery overseas |
wooden box
Product Description
2016 salable product 9060 laser engraving&cutting machine

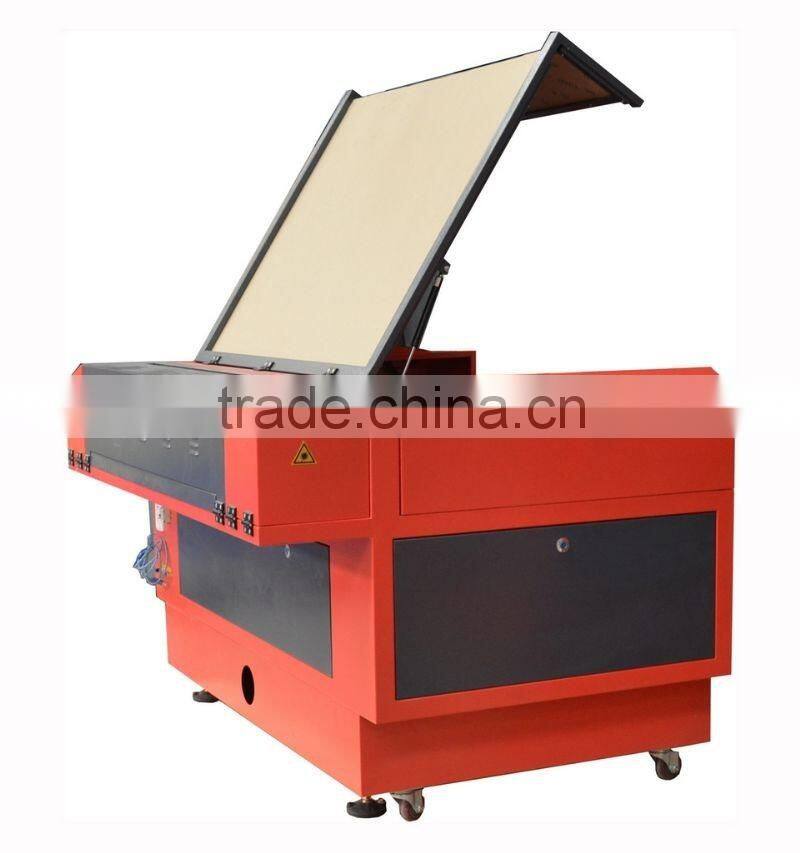

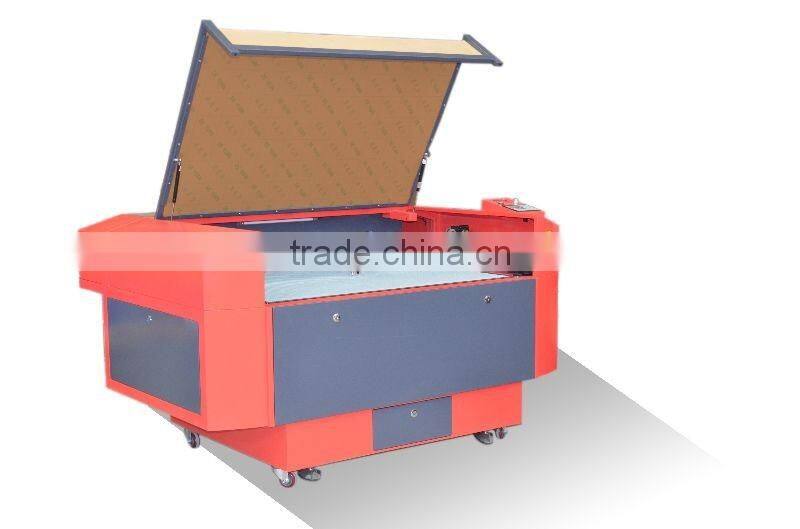

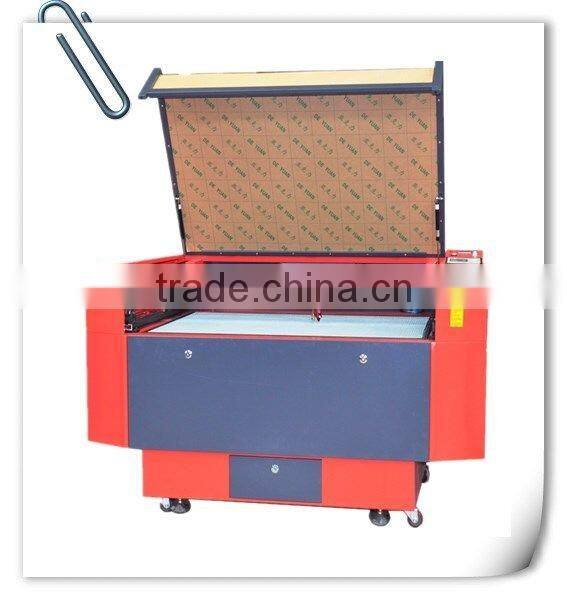

1.The machine appearance of 9060 laser engraving&cutting machine
2.Product Feature of 9060 laser engraving&cutting machine
1)Steady configuration,humanized design,can ensure convenient operation and maintenance
2)High quality water cooler,ensure the output laser power to be consistent,and prolong the using life of laser tube

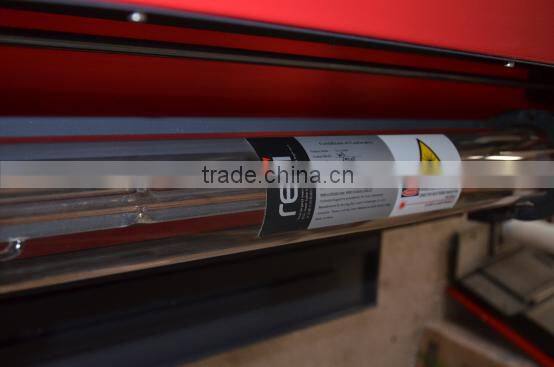

3)High-efficiency and long life laser tube,warranty is 9 months
4)Automatic up&down worktable,the maximum up and down distance could reach 350mm
5)High precision 3-phase stepper motor,DSP control system.ensure high speed,stable performance and auto-jamming
3.technical Parameter of 9060 laser engraving&cutting machine
| Model | DW-9060 |
| Working Area | 900*600mm |
| Table Area | 950*650mm |
Range of up-down working table | 0-350mm |
| Laser Generator | 10.6um sealed co2 laser tube |
| Power | 60w/80w/100w/150w |
| Power Adjustment | 0-100% controlling,no segment and controlling by software |
| Consuming Power | ≤2500w |
| Max Engraving Speed | 1000mm/s |
| Max Cutting Speed | 500mm/s |
| Positioning Precision | ≤±0.01mm |
Adjusted up-down distance of laser head | 0-30mm |
| Control System | Speedy DSP(Leetrol,Ruida or Leixin) |
| Control Software Language | English,simplified Chinese,traditional Chinese,procuring of multi-language |
| Supporting Software | AutoCAD ,CoreDraw |
| Mini Character Size | Chinese:1.5*1.5mm English:1.0*1.0mm |
| Machine Drive | Stepper or Servo |
| Machine Motor | Stepper or Servo |
| Interface | LCD Screen,USB interface |
| Working Voltage | AC220V±10% 50HZ |
| Running Environment | Tempreture:0-45°C Humidity:5%-95% |
| Optianal Equipment | Red light locatpr,rotary attachment,up and down bed,industrial chiller |
| Warranty | one year,except the consumable goods |
| Technical Support | by calling,email or training |

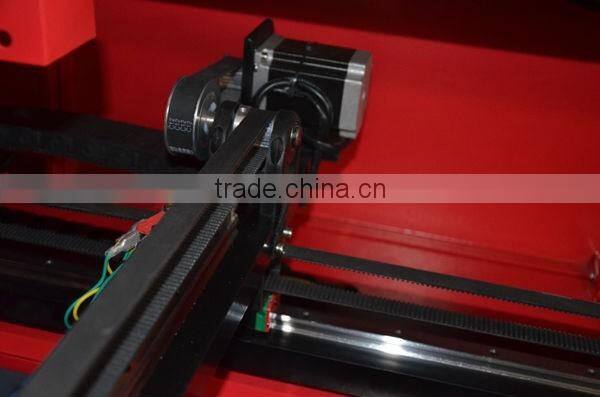

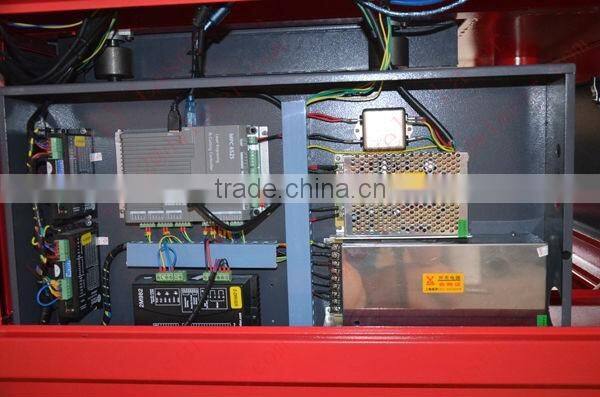

4.Details of 9060 laser engraving&cutting machine
5.Applicable materials for reference:
material | engraving | cutting | material | engraving | cutting |
Natural wood | √ | √ | Stone | √ | × |
Acrylic | √ | √ | Mylar | √ | √ |
Glass | √ | × | Pressboard | √ | √ |
Double color plate | √ | √ | Rubber | √ | √ |
Bamboo | √ | × | Plywood | √ | √ |
MDF | √ | √ | Fiberglass | √ | √ |
Cloth | √ | √ | Painted metals | √ | √ |
Leather | √ | √ | Plastic | √ | √ |
Marble | √ | × | Ceramic | √ | × |
Matte boards | √ | √ | Coated metals | √ | × |
Paper | √ | √ | Other materials | √ | √ |
6.samples of 9060 laser engraving&cutting machine
Jinan Dowell Laser Equipment Co.,ltd. (the former Wuhan Dowell Laser), with 12 years production experience, specialized in laser cutting, marking equipment production, developing and sales, and procide customers with comprehensive solutions, compare to same industry, we hold less autonomy R& D companies. Company's full range of products have passed CE, FDA and others international certification.
Our factory
Our exhibition
Our certifications
packing
shipping
Q1.How to get the most suitable machine and best price
Please tell us:
*the material you wanna handle
*the MAX size of these materials(length,width and thickness)
*the work you wanna handle with this machine (Engraving ? Cutting? or others?)
Q2.Do you have the manual of machine?
Yes ,we can provide manual ,CD software and installing video to help you operate the machine expertly.
Q3.If we don’t know how to use the machine ,can you teach us?
Yes,of course. We can offer you free training and engineers available to service machinery training overseas
if you would like to offer them business expenditure.
Q4.How about your after sales service?We offer professional and timely after sale 24 hours online service via phone ,Skype or TeamViewer.
We our technician will contact you once you got the machine and we could provide secure teaching as a professional factory.
Q5.How about your guarantee period?We offer 12 months for whole machine and 3 months for consumables including laser tube ,lens and mirror(This period is what consumables factory guarantee us).
