Flexo Ink Printing Machine for Corrugated Cardboard Making

Multi-colors printing from 1 to 4 colors

Slotting and die cutting unit can be added

Between the gears ,non-key connection

slotting unit also with creasing and corner-cutting

high quality steel , famous brand electric elements

1.Whole machine electric parts was choice the domestic famous brand, good quality and steady.

2.Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digit controlled grinder.

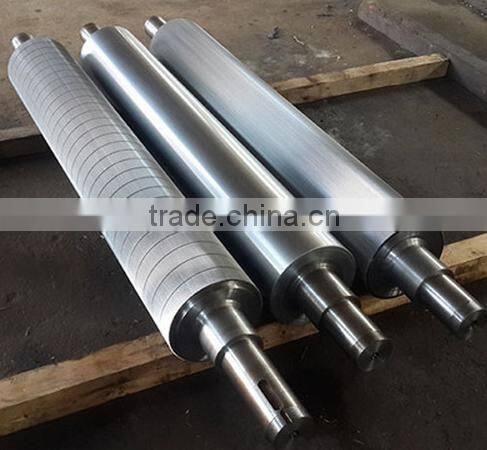

3.All the transmission axles and rollers are made by high-quality steel, and processed through temper and dynamic balance ; plated with rigid chrome and grinded surface.

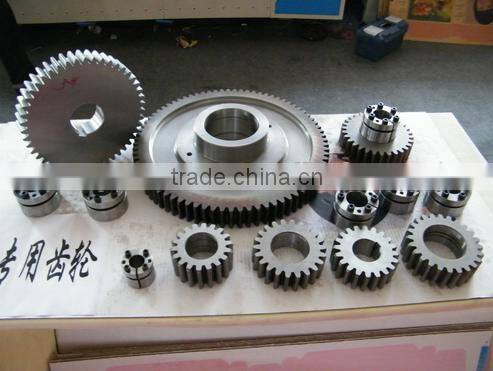

4.All the transmission gears was used the 45# alloy steel, which is grinded after heat-treatment, and it was made by rubbing, it still maintains the high topping precision.

5.The whole machine undergoes the spray lubrication, intuitionist show setting, setting the double oil pipe balance system.

6.Option: Presetting adjustment function, feeding, printing, slotting, zero setting, memory reposition automatic.

7.Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.

8.Option the vacuum adsorption, chain feeding or lead edge feeding to the customer request.

Option: Anilox roller, And stacker Machine.

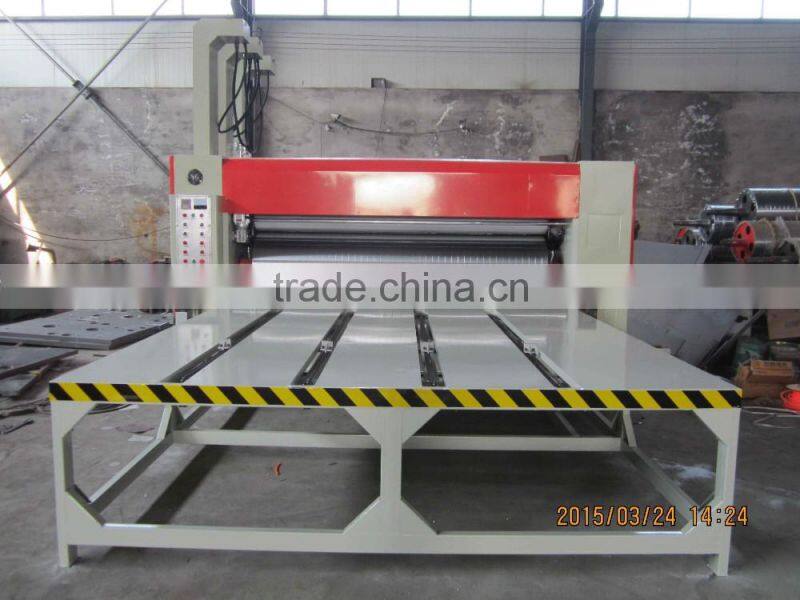

Function of Feeding Department:

1.Control faceplate function button putting concentrate and simple, operated convenient.

2.Electrically controlled the connecting and separated for the every unit with alarm to ensure the operator’s safety during its proceeding.

3.The light alloy aluminum back-kick feeding vacuum adsorption paper feed mechanism with several group of rolling bearing to ensure more steady machinery operation.

4.The left and right baffle, kick feeding, back baffle was adopted electric and computer numerical control adjustment.

5.Brush and the top suction device at the inlet which can clear away the impurity from the paper face to improve the printing quality.

Fuction of Printing Part:

1. All the axle and roller was used the high grade steal , computer dynamic balance; eliminate the centrifugal effect, plated with rigid chrome and grinded surface.

2.Printing phases was adopted the planetary gear structure, the electric digit 360 adjustment , show the digit(stop, running can adjustment).

3.Printing roller landscape orientation was adopted the touch screen control, and electric digit adjustment, the adjustment scope is 20mm.

4.Pneumatic septum pump supply the ink, the ink cup show the quantity.

5.Hanging plate device , total hanging and half hanging slotting notch, foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate.

6.Fixing the oil interval , printing pressure roller, lead roller interval were used the self-lock worm wheel and worm device adjustment and fix

Function of Die Cutting Department:

1.Slotting phases was adopted the planetary gear structure, the electric digit 360° adjustment, show the digit (stop, running can adjustment).

2.Slotting tool rest, pressure wheel , horizontal move by manual mechanic joint adjustment.

3.The height of box size was adjustment by synchronous.

4.Pressure interval was used the self- lock worm wheel and worm device adjustment and fix.

5.The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.

6.Slotting knife was choice with the high quality alloy steel , which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used,

7.It could be equipped with portable punching die holder.

8.Option: automatic single slotting adjustment function, (And slotter knife move electric).

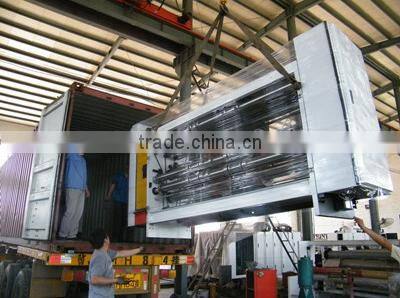

1. Our technician need to test the machine working condition before delivery to customer country.

2. If needed, we also can send our engineers to your country to teach you how to intall and operate the machine.

3. Our machine has one year guarantee period, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.

4.If any questions,welcome to send me email by 24 hours, we will try our best to help you solve these problems.
