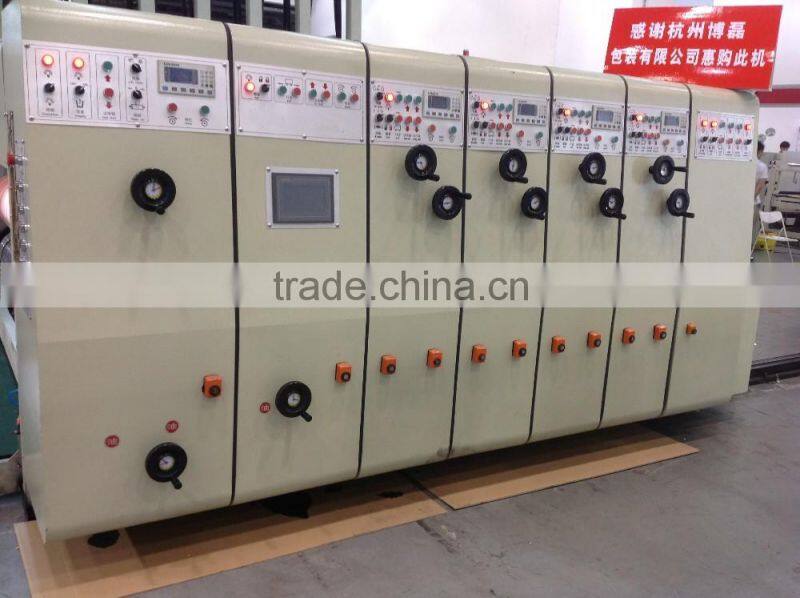

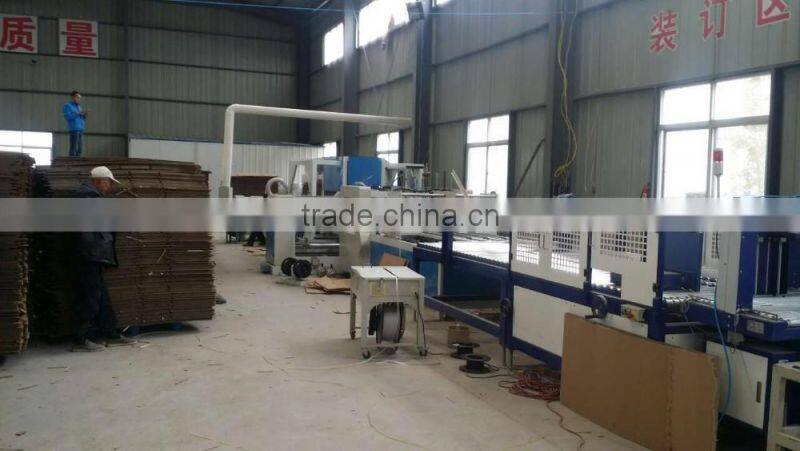

Fully Automatic Flexo Ink Carton Box Printing&Gluing&Bunding Linkage Line

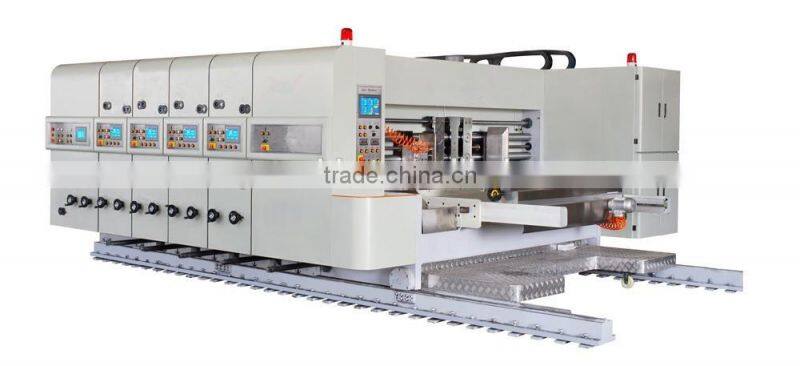

  GYKM Full automatic high speed flexo printer with slotter /die cutter main technical parameter(according 4 color)

1.this machine is composed of feeding unit, printing unit, die cutting &slotting unit, folding and gluing unit, correcting &counting output.

2.the machine adopts high quality steel welding carefully processed assembled.

3.the machine is in usage of docking with the die cutting &slotting unit, couplet of communication with electrical control system of printing department. When the printing unit starts to run, the gluing unit will start along itself.

4.automatically providing the glue, glue loop, then never break the glue off, no artificially adding glue, save time and effort.

5.stainless steel coated wheel, corrosion resistance, wear resistance, uniform glue, glue saving and glue quality is about one third of amount of artificial glue.

6.folding department is equipped with adjustable pressing line wheel, making cartons be folded more smoothly, glue more beautiful and exact.

7.cartons are pilled up and correction in counting unit, stable security output, accurate without error, digital control, simple operation, input without stopping.

Feeding Unit

1,Machine clutch

(1),Electric control of the machine clutch attached withwarning bell, warning bell ring continuously during running, so ensure workers safety.

(2),Transmission shaft attached with friction clutch ,so that to avoid wrong operation and damage the machine.

(3),Pneumatic interlocking device.

(4),The main motor adopts frequency conversion motor,frequency converting control, energy saving,start smoothly, attached with the motor start protection device.

2,Servo lead edge wheel feed system

(1),The suction paper,draught fan 11KW,according to different board bending conditions,air volume adjustment,ensure that feeding smoothly.

.(2),Slot department equipped with chain control switch, control scraming

in the paper feeding.

(3),Paper up and down adopt with double servo motor drive,Quick, energy saving

(4),Adopt lead edge wheel feed system.

(5),Side boards, after the block box adopt electric adjustment ,front boards gap adopts manual adjustment.

(6),Skip feeding device(Can choose continuous or skip feeding according to need )

(7),Feeding counter,can set and display production quantity.

3,Dust-extraction device

(1)In feeding unit equipped with brush dust~extraction device,can removal impurities on the surface of the cardboard printing a lot, improve the quality of printing.

4,Feeding roller

(1),Upper roller diameter isφ135.13mm.

(2),Solid steel ,wrapped with wear-resisting rubber,and has balance correction

 (3),Lower roller diameter isφ154.43mm,Embossing hard chrome plated,and has balance correction.

(4),Manually adjust the feed roller gap dial,adjustment range 0~12mm.

5,Automatic zero device

(1),Paper feeding department, printing department, slot department electric automatic back to zero.

(2),Regular carton using automatic back to zero device, testing~run two pieces can be adjusted to the correct position, reducing waste of cardboard.

Printing Unit(1~5colors optional)

1,The printing roller(plate roller)

(1),Outer diameter isφ290.6mm(including plate the diameter isφ305mm).

(2),Steel tube surface grinding,hard chromium plated.

(3),Balance correction, smooth operation.

(4),Ratchet fixed type edition axis.

(5),Hang all plate of slot, suitable for 10mm×3mm plating strip.

(6),Loading and unloading of the printing plate,Foot switch electric control positive and negative going motion.

2,Printing press roller

(1),Outer diameter isφ173.73mm.

(2),Steel tube surface grinding,hard chromium plated.

(3),Balance correction, smooth operation.

(4),Manually adjust the feed roller gap dial,adjustment range 0~12mm.

3,Feeding upper and lower roller

(1),Upper roll:Outer diameter isφ86mm thick wall steel tube ,with the four paper ring

(2),Lower roller:Outer diameter isφ154.43mmthick wall steel tube ,surface grinding,hard chromium plated.

(3),Manually adjust the feed roller gap dial,adjustment range 0~12mm.

(4),Increasing prepressing function.

4,Steel anilox roller

(1),Outer diameter isφ173.73mm.

(2),Steel tube surface grinding,suppressing anilox,hard chromium plated.

(3),Balance correction, smooth operation.

(4),Mesh Count is 180,200,220,250,280 optional.

(5),Matched with a feeding system, air pressure type automatic lifting device.(when feeding anilox roll lower down and contact with the plate, Stop feeding anilox roll rise up from plate)

(6),Anilox roll attached with wedge type overrunning clutch,  convenientand fast for ink distributionand wash ink.

5,Ceramicsanilox roller(optional)

(1),Outer diameter isφ173.73mm.

(2),Steel tube surface coating ceramic grinding, laser engraving anilox.

(3),Mesh Count is250,280,300 optional.

(4),BetterThan steel anilox roll in abrasion resistance, long service life.

6,Rubber Roller

(1),Outer diameter isφ160mm.

(2),Steel tube surface parcel wear~resisting rubber, and balance correction.

(3),Rubber high special grinding, ink transfer effect is good.

7,Phase adjusting mechanism

(1),Planetary gear structure.

(2),Printing phase electric digital 360 °adjustment(Motion and stop all can adjusted)

(3),Electric adjustment lateral position, adjust distance total20mm.

8,Ink circulation

(1),Pneumatic diaphragm pump, ink supply stability, simple operation and maintenance.

(2),Ink filter, filtering impurities.

(3),Plastic ink tank

9,Printing phase fixing device

(1),Electromagnetic brake mechanism.

(2),When the machine is used to separate or adjust the phase,the brake institutions limit the machine rotation,Keep the original gear fixed point position.

Die cutting Unit

1, Knife mold roller(lower roll)

(1),Outer diameter is 260mm(exclude knife mold)

(2),Cast iron material surface grinding,hard chromium plated.

(3),Balance correction, increase the running stability.

(4),Apply for knife mold height 25.4mm.

(5),Wood pattern board thickness:16~18mm(three layer board),13~15mm(five layer board)

2,Rubber mat roller(upper roll)

(1),Outer diameter isφ287mm

(2),Cast iron material surface grinding,hard chromium plated.

(3),Balance correction, increase the running stability.

(4),Manual adjustmentthe gap between knife mold roller.

(5),Rubber mat thickness is10mm(Outer diameter is307mm).

(6),Mechanical horizontal 30mm moving device.

3,Phase adjusting mechanism

(1),Planetary gear structure.

(2),Die cutting phase electric digital 360 °adjustment(Motion and stop all can adjusted)

(3),Remark::Die cutting department can choose frequency automatic compensation device(optional)
