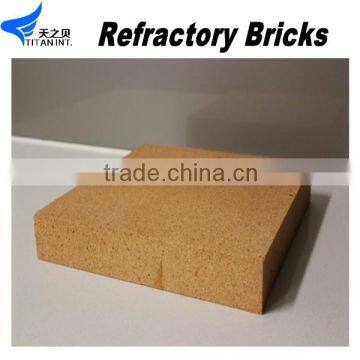

Refractory Magnesia Refractory Bricks
US$ 150 - 550
/ Ton
10 Tons(Min. Order)
- Tianjin Port
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Shape | Brick | |
| Material | Alumina Block | SiO2 Content (%) | 50% | |
| Al2O3 Content (%) | 40%-85% | MgO Content (%) | 1% | |
| CaO Content (%) | 0.2% | |||
| CrO Content (%) | 0.1% | SiC Content (%) | 0.1% | |
| Model Number | TII-B010 | Brand Name | Titan/OEM |
Product Description
Refractory High Alumina Brick and Mortar
Features:
1) A variety of specifications available.
2) Satisfy various technical request.
3) Lower medium spoilage.
4) Good insulation performance and high temperature resistance.
5) Stiffness texture.
6) Used in all electric products and electric heating products.
7) OEM, ODM and OBM are welcomed.
customer's drawings, samples and performance requirement are highly appreciated.
Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics.
Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products.
We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc
| Performance | |||||
| Item | Unit | 95 Al2O3 | 96 Al2O3 | 99 Al2O3 | |
| Physical Characteristics | Bulk density | g/cm3 | 3.6 | 3.6 | 3.9 |
| Water absorption | % | 0 | 0 | 0 | |
| Mechanical Characteristics | Flexural strength | Mpa | 320 | 340 | 360 |
| Hardness Vickers | Gpa | 12.2 | 13.5 | 15.6 | |
| Elastic modulus | Gpa | 280 | 320 | 370 | |
| Poisson’s ratio | - | 0.22 | 0.23 | 0.23 | |
| Thermal Characteristics | Linear expansion coefficient | (200C-5000C) 10-6/0C | 7.1 | 7.2 | 8 |
| Thermal conductivity | w/(m.k) | 16 | 24 | 32 | |
| Specific Heat | *10-3J/(kg*K) | 0.78 | 0.78 | 0.9 | |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 9 | 9.4 | 9.9 |
| Dielectric loss angle | *10-4 | 15 | 5 | 1 | |
| Dielectric strength | *106V/m | 12 | 15 | 15 | |
| Processing technology | |||||
| Process range (mm) | |||||
| Outside Diameter | 1---300 | ||||
| Inside Diameter | 0.5---300 | ||||
| Length | 0.5---1200 | ||||
| Accuracy of working (mm) | |||||
| Perpendicularity | 0.01 | ||||
| Concentricity | 0.01 | ||||
| Roundness | 0.005 | ||||
| Straightness | 0.005 | ||||
| Parallelism | 0.01 | ||||
| Planeness | 0.005 | ||||
| Roughness | 0.05 | ||||
| Fit clearance | 0.005 | ||||
Details As Pictures:
Your Contact will be highly appreciated.
