Home > Products > Electric pallet truck > 1.5ton Electric Pallet Stacker/ Walkie/rider Stacker/ Battery Truck/

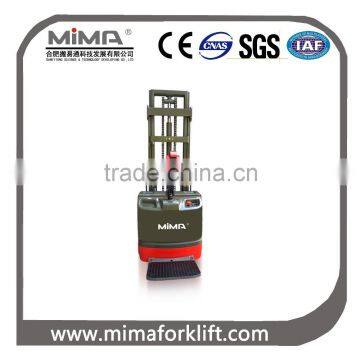

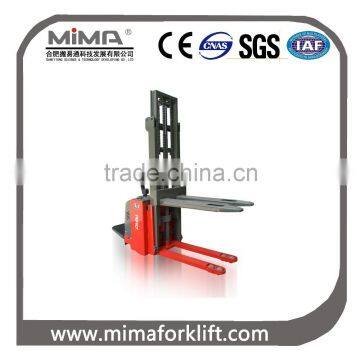

1.5ton Electric Pallet Stacker/ Walkie/rider Stacker/ Battery Truck/
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | China | |
| Brand Name | MIMA | Model Number | TB | |
| Certification | CE |
Product Description
Specifications
capapcity 1.0t to 2.0t, lift height 1.6m to 4.5m, duplex mast or triplex mast, DC/AC optional, CURTIS controller1 | Description | Electric pallet stacker |
2 | Model | TB15-45(triplex mast) |
3 | Load capacityKg | 1500 |
4 | Load center mm | 500 |
5 | Max. lifting height mm | 4500 |
6 | Wheel type | Polyurethane solid tire |
7 | Pedal length mm | 500 |
8 | Fork size mm | 1150*190*75 |
9 | Width of forks mm | 680 |
10 | Min. ground clearance mm | 90 |
11 | Overall length mm | 2110 |
12 | Overall width mm | 1270 |
13 | Overall height with mast closed mm | 2110(triplex mast) |
14 | Overall height with fork raised mm | 5086 |
15 | Turning radius mm | 1725 |
16 | Front wheel to fork tip mm | 340 |
17 | Min. intersecting aisle mm (1000*1200 pallet) | 2615(without pedal) 3010(with pedal) |
18 | Max. walking speeds Km/h load/unload | 4.0/5.8 |
19 | Grade abitity % load/unload | 8/10 |
20 | Total weight( with battery) Kg | 1150 |
21 | Driving wheel mm | Φ215*75 |
22 | Front wheel mm | Φ80*70 |
23 | Balance wheel mm | Φ150*50 |
24 | Battery V/Ah | 24/210 |
25 | Driving motor Kw AC | 1.5 |
26 | Lifting motor Kw | 2.0 |
