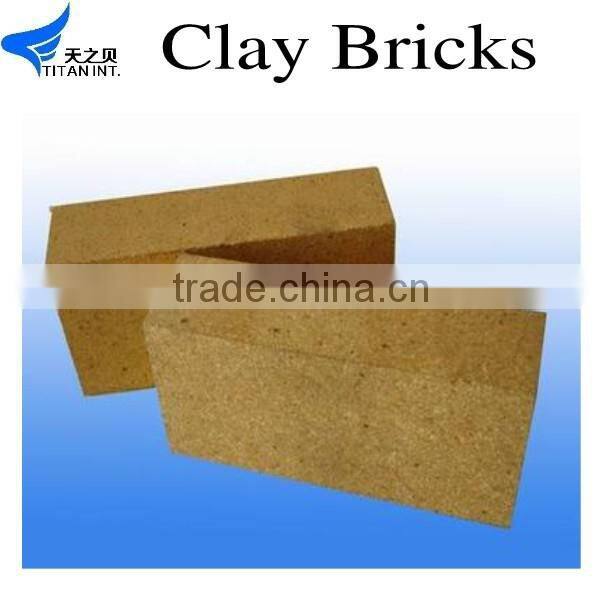

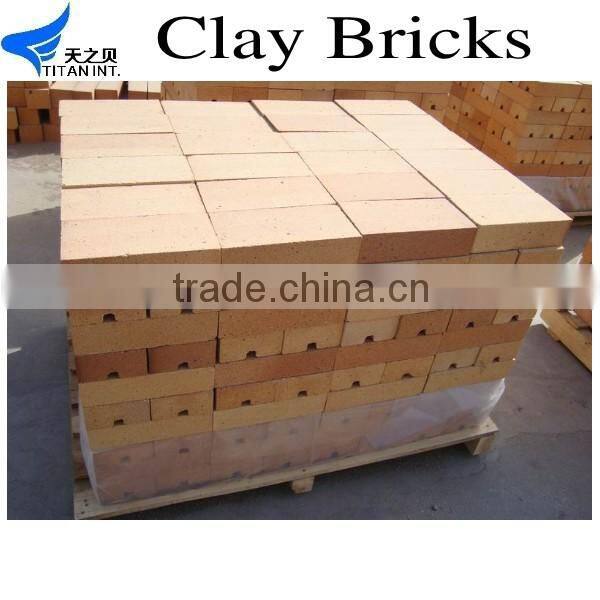

Furnace Bottom Fire Clay Block Refractory Bricks
- Tianjin/Qingdao
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | China | Brand Name | TITAN/OEM, Titan/OEM | |
| Type | Other, Clay Bricks, Refractory Bricks | Porosity | Hollow | |
| Size | 230 x 114 x 65 mm, as you required. | Color | Other, White, Yellow,grey,white | |
| Function | Firebricks | Feature | Thin Bricks | |
| Technique | Sintered |
Product Description
Specifications
Refractory Brick1.clay brick
2.alumina brick.
3.Material:Clay
4.Certification:ISO9001
Furnace Bottom Fire Clay Block Refractory Bricks
Castable Refractory Recommendation for Cement Kiln 2000T/D~3000T/D
Application Parts | Recommended products | Application Parts | Recommended products |
Rotary kiln front end | LH-85A | Hot end of grate cooler |
|
Rotary kiln back end | LH-16K | Other parts of grate cooler | LH-75 |
Coal burner tube | LH-80P | Rising gas duct | LH-50C |
Calciner | LH-75 | Kiln hood | LH-75F |
Preheater | LH-14N | Tertiary air duct, parapet | LH-80G |
3000T/D~5000T/D
Application Parts | Recommended products | Application Parts | Recommended products |
Rotary kiln front end | LH-85A | Hot end of grate cooler | LH-80G |
Rotary kiln back end | LH-85G | Other parts of grate cooler | LH-16K |
Coal burner tube | LH-85P | Rising gas duct | LH-50C |
Calciner | LH-75F | Kiln hood | LH-75F |
Preheater | LH-13NL LH-14N | Tertiary air duct, parapet | LH-80G |
Kiln end, grate cooler | LH-80G |
|
|
5000T/D~10000T/D
Application Parts | Recommended products | Application Parts | Recommended products |
Rotary kiln front end | LH-85A | Hot end of grate cooler | LH-85 |
Rotary kiln back end | LH-85 | Other parts of grate cooler | LH-16K |
Coal burner tube | LH-85P | Rising gas duct | LH-55C |
Calciner | LH-80 | Kiln hood | LH-80 |
Preheater | LH-14N | Tertiary air duct, parapet | LH-80G |
Fire clay brick Standard sizing: 230 x 114 x 65 mm others up to the client
Fire clay brick SK-32 | |
Item | Standard |
AI2O3(%) | 30 |
Fe2O3 (%) | 3 |
Refractoriness (SK) | 32 |
Refractoriness under load, 0.2MPa, Ta, ((°C) | 1300 |
Porosity (%) | 22-26 |
Bulk density (g/cm³) | 2.05 |
Cold crushing strength (MPa) | 25 |
Thermal expansion at 1000°C (%) | 0.6 |
Fire clay brick SK-34 | |
Item | Standard |
AI2O3(%) | 38 |
Fe2O3 (%) | 2.5 |
Refractoriness (SK) | 34 |
Refractoriness under load, 0.2MPa, Ta, ((°C) | 1350 |
Porosity (% | 19-23 |
Bulk density (g/cm³) | 2.10-2.15 |
Cold crushing strength (MPa) | 25 |
Thermal expansion at 1000°C (%) | 0.6 |
Fire clay brick SK-36 | |
Item | Standard |
AI2O3(%) | 50 |
Fe2O3 (%) | 2 |
Refractoriness (SK) | 36 |
Refractoriness under load, 0.2MPa, Ta, ((°C) | 1450 |
Porosity (% | 20-24 |
Bulk density (g/cm³) | 2.30-2.40 |
Cold crushing strength (MPa) | 45 |
Thermal expansion at 1000°C (%) | 0.3 |
sk32 sk34 sk36 sk38 refractory fire clay brick for oven tunnel kiln firing kilns
