Aluminum Profile High Precison Two Head Cutting Saw Machine for Sale
- Qingdao Seaport China for Aluminum profile high precison two head cutting saw machine for sale
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China Manufacturer Aluminum Window Frame Corner Cutting Machine
-
Aluminum / PVC Window and Door Double Head Cut Machine
-
China Aluminum Profile CNC Precise Double Head Cutting Machines for Sale
-
Aluminium Window Frame Making Machine Aluminum Profile Cutting Machine
-
Aluminum Window and Door Making End Milling Machine / China Milling Machine
-
Hot Selling Aluminum Windows Doors End Milling Machine Price
Product Details
| Brand Name | inwin | Model Number | CLJZ2S-500x4200 |
Product Description

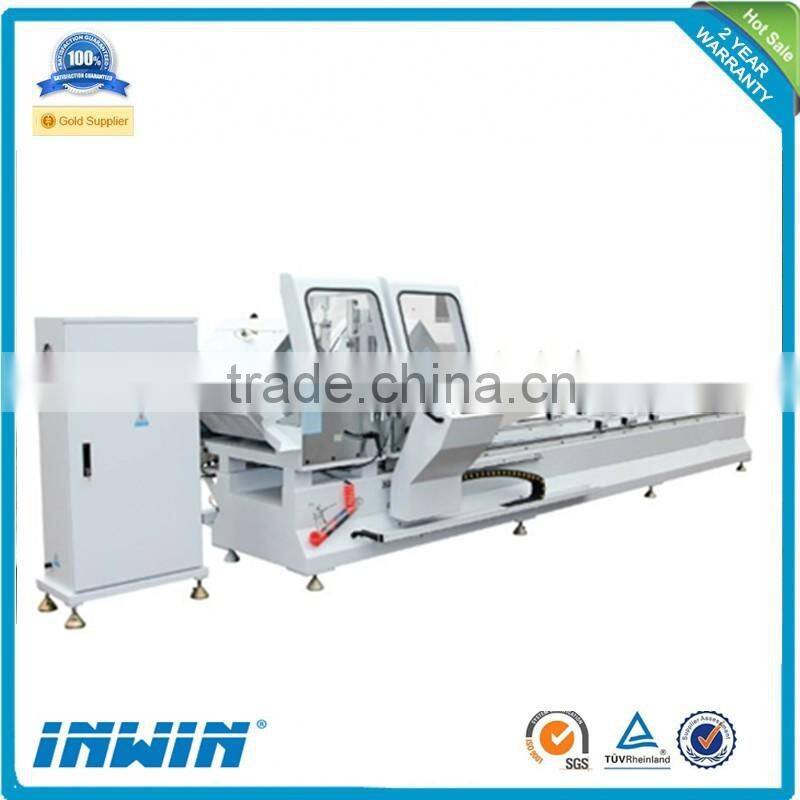

Aluminum profile high precison two head cutting saw machine for sale
Performance & Feature >>> |
-Imported digital system and digital length cutting in accurate size.
-Imported ball screw control head’s motion and repeated position high precisely.
-Support series of data setup in one time and realize continuously cutting.
-Special imported carbide saw blade and imported straight feeding guide rail pair.
-Hydraulic damping cylinder drive the saw blade feed.
-Large range of cutting.maximum length up to 4200mm.three cutting angle 90/45/22.5auto change by button.
Technical Parameter>>> |
-Power supply:(three-phase four-wire) 380v 50Hz
-Input power:6Kw
-Air pressure:0.5-0.8Mpa
-Blade rotational speed:3200r/min
-Saw blade specification:D=500mm,d=30mm
-Cutting length:320-4200mm
-Cutting angles:90°.45°.22.5°
-Outside dimension:5500*1750*1900mm
-weight:1900Kg
Machine Accessories >>> |

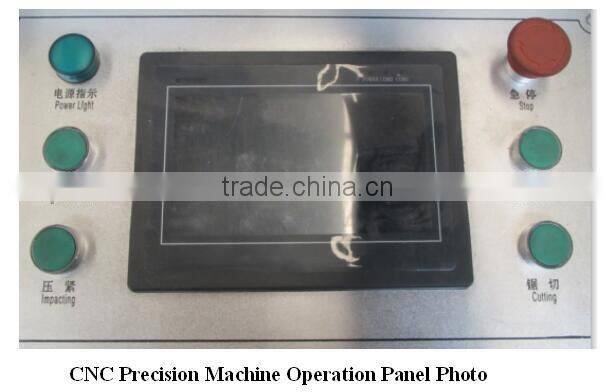

CNC Panel

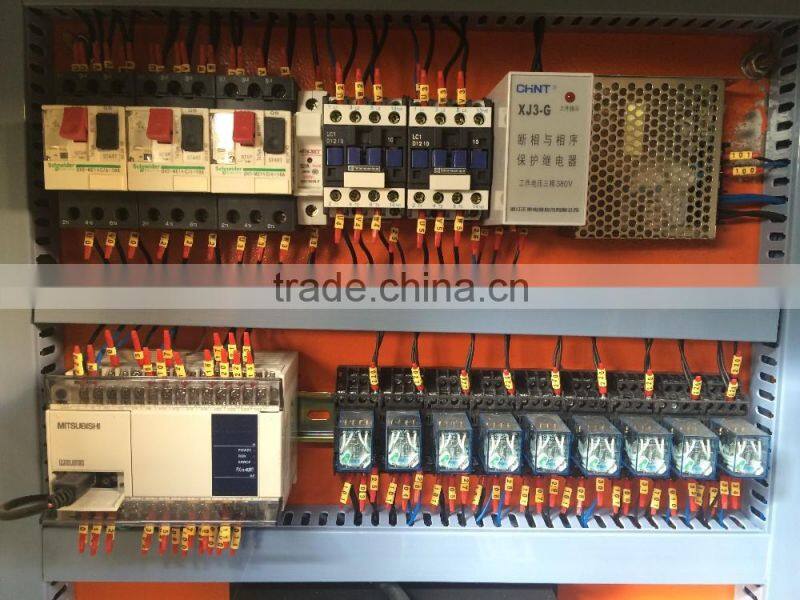

Controlled Cabinnet>>> |
Saw Blades>>> |

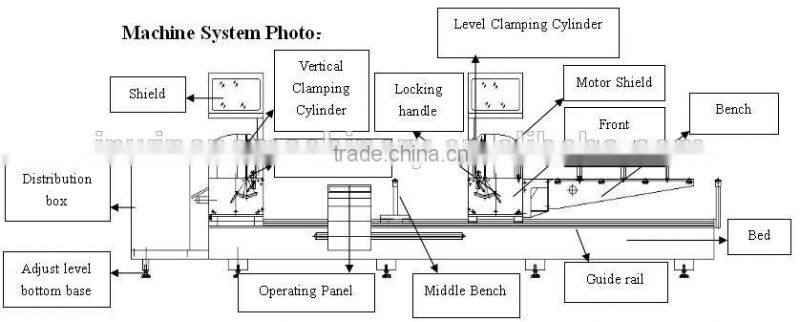

Machine Photos>>> |
