Hot Sale two axis in Recycling Washing Line Chipper Shredder Machine Old Tire

FOB Price

US$ 10,000 - 100,000 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Dura Shred	Model Number	TSD2471(182)
Certification	CE,ISO,SGS, CE&ISO	Warranty	1 year, Life-Long

Product Description

Hot Sale two axis in Recycling Washing Line Chipper Shredder Machine Old Tire

Equipment Specifications-Shredder

TSD1340

TSD1332

TSD832

Motor Specifications

Electric

Number of Motors

55KWX2

45KWX2

37KWX2

22KWX2

15KWX2

7.5KWX2

Voltage

as per customer request

Cutting Chamber

Split Chamber

intact Chamber

Large Blade Thickness

75mm

40mm

Small Blade Thickness

40mm

Blade Diameter

754mm

542mm

450mm

284mm

Cutting Chamber L*W

1804X1410

1604X858

1304X858

1204X686

1004x686

804x686

804x460

Equipment Dimensions

5876x2310x3493

5464x2624x3040

4280x2206x2492

4092x1416x2163

3892x1416x2163

3327x1030x2075

2796x1256x2311

Equipment Weight

22400kg

13700kg

12500kg

6300kg

5800kg

4700kg

2000kg

Hopper Opening

3711x2438x1046

2835x1628x770

2335x1628x770

1521x1416x695

1321x1416x695

1120x1257x800

1120x1256x800

Capacity

15-20t/h

10-15t/h

5-10t/h

3-5t/h

2-3t/h

1-2t/h

800-1000kg/h

Product Size Range

40mm-75mm

40mm chips

High Quality Durable paper shredder machines Line

Rubber shredding machine

Advantages of the System

Exclusive Control System - Controls and operates the entire plant from its centrally located position and provides instant visibility to what each machine is doing in real time.

Unique Stop/Auto Reversal Feature – Protects against overfeeding and damage by non-processable items.

Premier Full Turn Key Systems – Plant is manufactured, shipped, installed and ready to start recycling.

Warranty – one of the best warrantees in the industry.

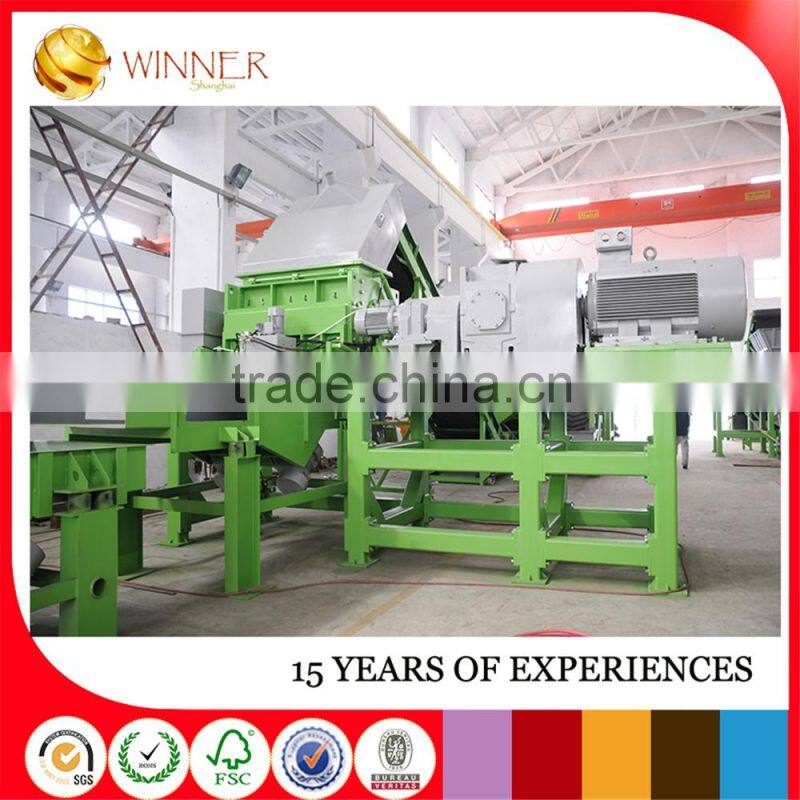

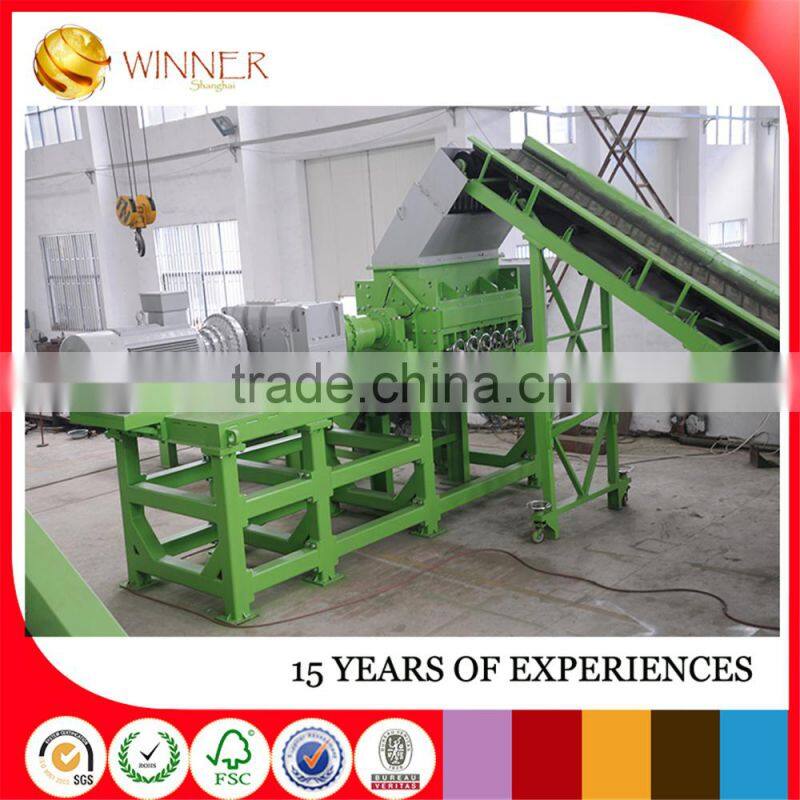

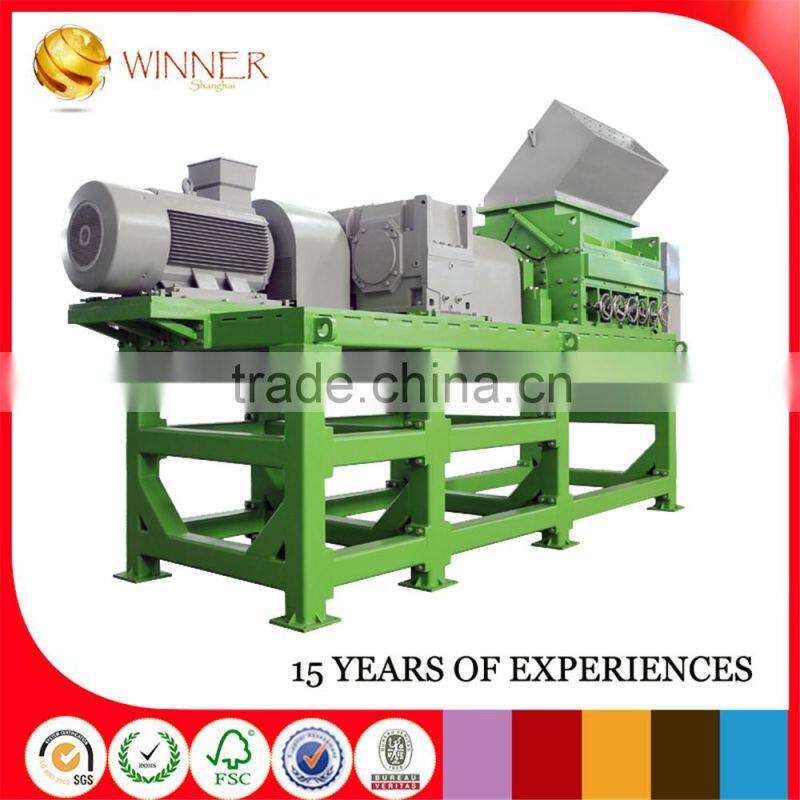

Double Shaft Shredder
Dura-Shred’s two shaft shredders are designed with an aggressive low RPM, high torque shredding technology.

The shredder blade thickness ranges from 25 mm to 152 mm (1”-6”) depending on the type of tires, throughput, and desired end product.

The biggest shredder can process OTR tires, large truck tires, and car tires at a rate of up to 20 tons per hour.

Grater

The Grater is the ultimate machine for mid-stream grinding and steel separation.

1) It is specifically designed to take pre-shredded tires chips and produce between 10-30mm wire free rubber chip.

2) The Grater and can process up to 6 tons of input per hour.

3) The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.

4) Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.

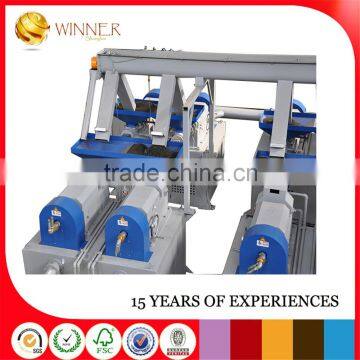

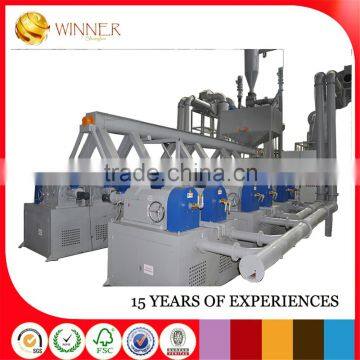

Granulator
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 10 mesh.

The granules are screened and re-circulated until the desired size is reached.

Due to the design of the our granulator and precise alignment of the blades, this Granulator produces a very uniform cut, high quality granule.

During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.

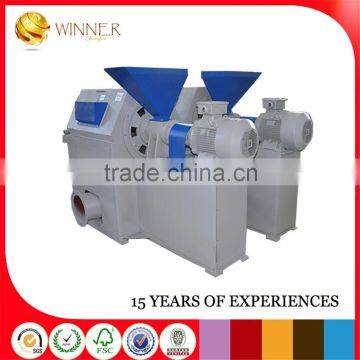

Miller
Dura-shred's miller is designed for rubber material where a powdered products is required.

Granules of size 1-8mm is fed via feeder to the rotating high speed serrated disk to produce a powder product in the required 30-120mesh range and where the final size is determined by adjustable centrifugal screen.

Company Information

About Dura Shred

Since 2001

Designing and manufacturing equipment for the recycling industry

a variety of applications such as TDF (Tire Derived Fuel), rubber mulch, and crumb rubber.

manufactured and installed recycling systems in countries all over the world, including the US, Canada, Mexico, Poland,South America, South Africa, Iraq, and Kazakhstan etc.

Our production plant is located in Wuxi, China with headquarters in Shanghai, China.

Dura-Shred’s mission is to provide our customers with cost effective turnkey recycling equipment.

We can provide customized shredding system for our global clients.
Comprehensive service: System Design, Manufacturing, Import/Export, and Logistic service.
Dura-shred is committed to provide our customers with proven western designed equipment with first class technical support and service.

Crushing Material

Packaging & Shipping

Packaging Details: as per customer request or our netrual package - a layer of plastic wraps

to protect machine from dust,moisture and corrosion. Wooden case as the outside package.

Delivery Detail: 30 days after deposit.

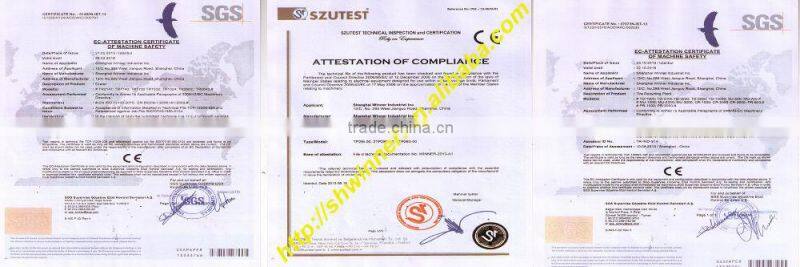

Certifications

Our Services

A. 1 year warranty

B. We will send 2 or 3 engineers to help install the machines.

C. OEM & ODM are available

D. Turn-Key service

E. Rubber samples could be supplied for free

F. Regular return visit

FAQ

1. How to choose the suitable machine?

Please answer first:

a: What material do you want to shred?

b: What is the usage of the crushing material?

c: How many tons per hour do you demand?

After that, the suitable machine could been introduced to you.

2. What about the shipping and package?
We arrange shipment according to your requirements. It is included in our TURNKEY service.

3. Can I visit your company or factory?

Ofcourse you can.

Our headquarter is in Shanghai city

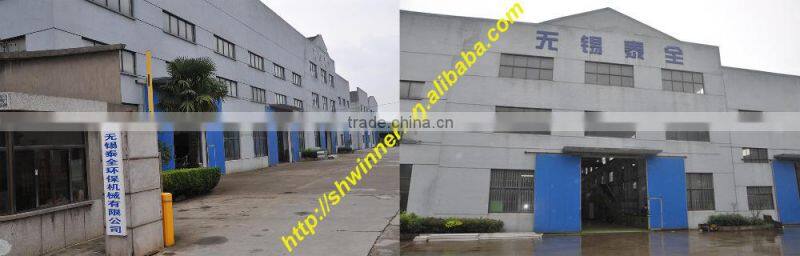

Our production plant is in Wuxi city, Jiangsu province.

And when you fly to China, we could pick you up and afford your local transportation charges.

4. What's the relationships between tqwinner and dura-shred?

They are 2 brands belonging to the same group. Dura-Shred is registered in Wuxi; Qqwinner in Shanghai. Our headoffice and marketing team are located in Shanghai.

Factory Information

Factory Size(ters): Above 100,000 square meters

Factory Location:

No.24,Cangsifang,Dengxiang Village, Qianzhou Town,Huishan District,Wuxi City,Jiangsu Provice,China

Number of R&D Staff: 5 - 10 People

Number of QC Staff: 5 - 10 People

Contract Manufacturing: OEM Service Offered Design Service Offered

Please feel free to contact Sunny by MB: 0086 18602128819
