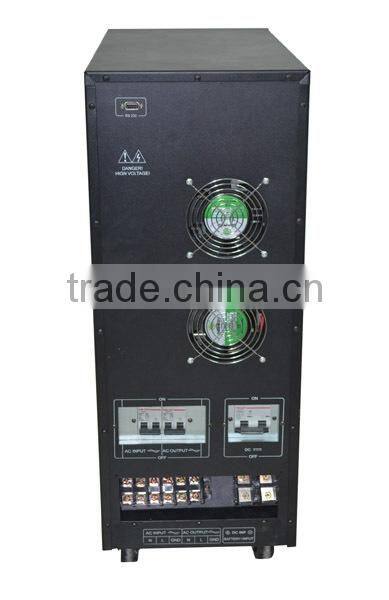

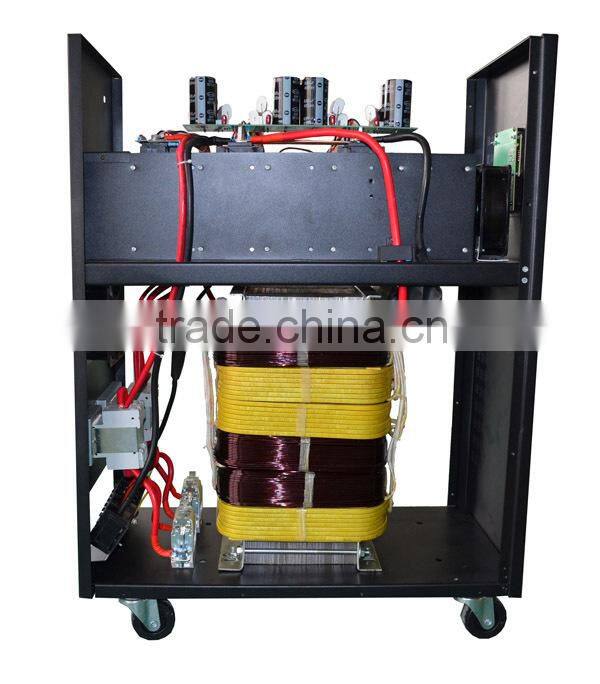

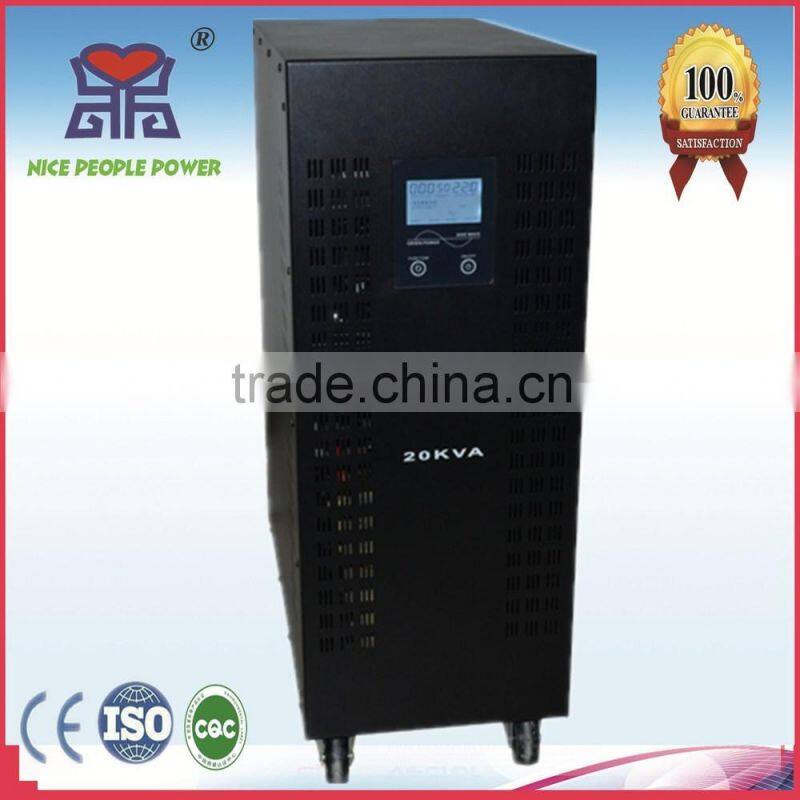

15kw,20kw DC to AC Power inverter with Charger Low Frequency Pure Sine Wave Inverter for grid solar system
- 20 Piece / Pieces per Month
- huangpu
- T/T Credit Card PayPal
You May Like
-
4000W-6000W dc to ac solar grid tie inverter with charger frequency inverter
-
4kW-6kW dc to ac solar grid tie inverter with charger frequency inverter
-
4000W-6000W solar Power Inverter for home
-
700-1200W Power inverter Low Frequency Pure Sine Wave Inverter for grid solar system
-
1500W-3500W DC to AC Power inverter with Charger Low Frequency Pure Sine Wave Inverter for grid solar system
-
High quality and Good feedback solar Inverter
Product Details
Place of Origin | Guangdong, China | Brand Name | nice people power | |
Model Number | D-NB | Specification | Normal | |
Application | Home | Output Voltage (V) | 220V±2% | |
Load Power (W) | 15kw-20kw | Solar Power (W) | 15kw-20kw | |
Work Time (h) | 2-30hours( more) |
one inverter one carton;
Product Description
Specifications
Low Frequency Pure Sine Wave Inverter solar inverter1.Intelligent charging
2.Automatic timing shutdown
3.Using easy and safe
15kw-20kw DC to AC Power inverter with Charger Low Frequency Pure Sine Wave Inverter for grid solar system
1. Advanced performance by CPU control
2. Auto voltage regulation(AVR),wide input voltage 145V~275V,accurate output,AVR function,adapt all kinds lf bad electric environments
3. Intelligent battery charging, the charging current can be adjusted according to the equipped battery, it is fast and reliable and can increase the service life of the battery
4. Intelligence display of output voltage,frequency,battery capacity,fault,over load,load
5. User can use the program of RS232 or USB communication′s software to setting timing auto shut down
6. Generator compatibly and external battery connection achievable
7. Adapt all kinds lf bad electric environments
8. It can be automatically started up with mains supply, and has a wider range of applications
9. Advanced automatic constant charging circuit,prolongs battery life
10. It has perfect battery under-voltage, overload, over-discharge, short-circuit protections.
Technical parameters :
Model D-NB | 153192 | 203384 | |
Rated power | 15KW | 20KW | |
Battery Voltage(v) | 192/384 | ||
Size(W×D×H)mm | 600*300*730 | ||
Shipping size(W×D×H)mm | 670×380×930 | ||
Net weight(kg) | 105 | 125 | |
Gross weight (kg) | 115 | 135 | |
Universal parameter | |||
Input | Voltage | 165V~275V | |
Frequency | 45Hz~65Hz | ||
Output | Voltage | 220V±2%(Battery mode) | |
Frequency | 50Hz±0.5Hz | ||
Output wave from | Sine wave | ||
Output wavefrom distortion | ≤3% | ||
Charging | 3A-5A(Adjustable) | ||
Display | LED,LCD(Optional) | ||
Transfer time | <4ms | ||
Surrounding | Noise | ≤50dB | |
Temperature | 0℃~40℃ | ||
Humidity | 10%~90%(no condensate) | ||
Efficiency | ≥80% | ||
Protection | Overload | Overload exceeds 110%,automatic shutdown in 30 secs;Overload exceeds 120%,automatic shutdown in 2 secs;Under mains supply mode, it will not shutdown if overload, just keeping sound. | |
Short-circuit | Output short-circuit,automatic shutdown after keeping sound 20 secs | ||
Battery | high or low voltage protection | ||
Reverse polarity | reverse polqrity protection(optional) | ||
Alarm sound | A | Without alarm sound if work normally under mains supply mode,when mains supply cut off, turn into battery mode,keeping sound 4 times every 30 seconds. | |
B | Keeping sound every seconds for second time alarm of Battery low voltage; send out sharp sound under machine fault. | ||
C | Keeping sound every seconds under Overload | ||
Remark | All specifications are subject to change without prior notice |
After sale service & promise:
1,supply oem&odm order,independent Q.C department ,3 times of quality checking,
2.100% percent of pass before shipping
3.one year of warranty
4.IS09001 ,CE,FCC,RoHs certification
More detail : Free&Easy ,your best choice .
Our advantage:
1.we can do the designs according to the customers'requirement
2.we can open customers'own mould as per their reuirement
3.we can offer you the high quality & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design team
6.we have our own designer, so welcome OEM&ODM order
7. promptly delivery. small order is welcome.

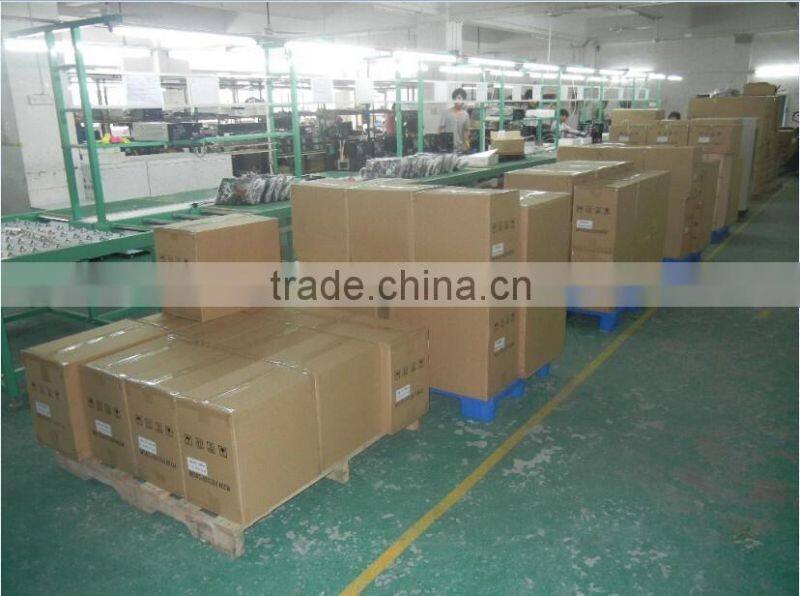

Company Profile

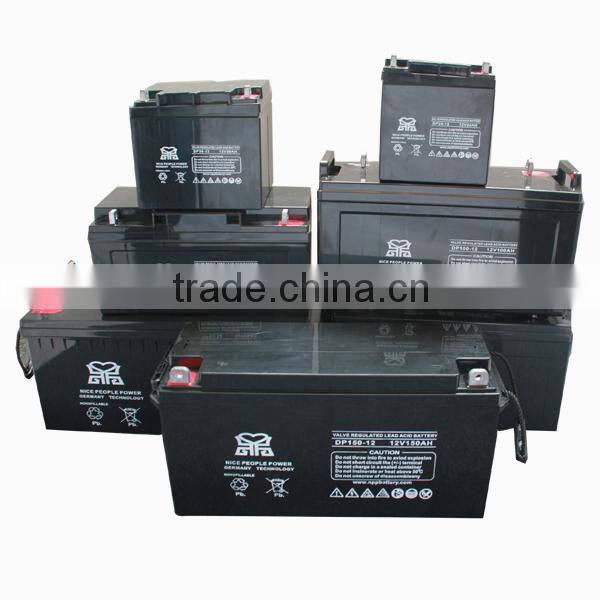

Nice People Power Corportation Limited is aprofessional manufacturer of all kills of batteries with well-equipped testing equipment and strong technical fore. Since 1997, we have been devoted to research and development manufacturer and market to lead the users to have quality batteries for their power system with world's most advanced production equipment and testing measures. We have in-house grid casting line which can initially control and manager the product quality. We offer AGM. stationary gel. deep cycle. 2V storage and front terminal batteries , which can be widely used in UPS system, solar and wind power generation system. communication system . golf cars and motor wheelchairs. We set up export office specialized in handling all export bussiness and and the export office is located at Nice people power strive for imporving social responsibility , NIce people power regards enviromental protection energy conservation and emission reducting and preventing pollution as one of long term developing serategy when the company came into existence. Nice people power looks customer's satisfaction as its mission , which impels themselves to push technical innovation , strictly control quality and satisfy diversified demand from all over the world.
Contact Us
- Guangzhou Nice People Power Co., Ltd.
- Contact nameCoco Gao Chat Now
- Phone86-020-31127625
- AddressRM 406, BOLI HOTEL BUIDING, NO.22, LIJUN ROAD, SHATOU BLOCK, PANYU DIST, GUANGZHOU, CHINA, Guangzhou, Guangdong
