Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Fire Tube | |
| Pressure | Low Pressure | Style | Horizontal | |
| Fuel | Other, oil or gas fired | Place of Origin | Henan, China | |
| Brand Name | Henan Yuanda | Model Number | gas boiler manufacturers | |
| Output | Steam | Dimension(L*W*H) | 5488*2000*2832MM | |
| Weight | Customziation | Certification | ISO9001-2000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Natrual gas fired steam boiler/gas boiler manufacturers
Technical data of Natrual gas fired steam boiler/gas boiler manufacturers
Boiler model | Rated thermal power | Rating pressure | Feed water temperature | Return water temperature | Fuel consumption | Thermal efficiency | Weight | Dimension | ||||
Light oil | Heavy oil | natural gas | liquid gas | City gas | ||||||||
t/h | MPa | ℃ | ℃ | Kg/h | Kg/h | m3 /h | m3 /h | m3 /h | % | t | mm | |
WNS1-1.0-Y(Q) | 1 | 1.0 | 20 | 184 | 65.5 | 67.3 | 84.2 | 29 | 176 | 89 | 4.3 | 3561×1690×1910 |
WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 57.3 | 346 | 89.2 | 7.2 | 4111×1950×2199 |
WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 109 | 682 | 89.2 | 9.6 | 4732×2150×2448 |
WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 164 | 1020 | 89.7 | 16.5 | 5500×2600×2990 |
WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 209 | 1321 | 89.7 | 24.8 | 6450×2800×3200 |
WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 264 | 1654 | 90.3 | 26.8 | 6800×2900×3394 |
Designed with horizontal, three passes, all-wet back structure, efficient up to 93%.
Main features of Natrual gas fired steam boiler/gas boiler manufacturers
1. Adopting the latest technology, it is designed with a combustion chamber with large volume. It is equipped with a world-known burner, making the combustion more sufficient and ensuring higher efficiency and lower failure rate.
2. It adopts advanced corrugated furnace pipe structure, increasing the heat surface area, and satisfying free expansion of the furnace pipe after heating.
3. It uses a spirally corrugated tube, strengthening heat transfer and eliminating welding stress.
4. It adopts wet back structure with high reliability and low maintenance cost.
5. It has protective functions of overtemperature, overpressure, water shortage, leakage detection and flameout, ensuring safe and reliable operation.
Suppy scope list for your reference

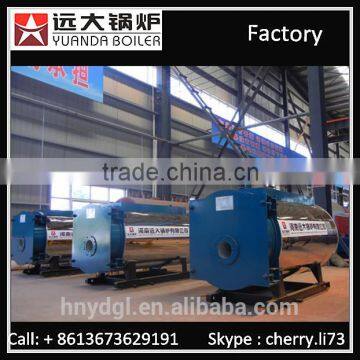

Our factory:
Some of our customers:
3 ways you can contact with us quickly :( To get our completed boiler offer with detailed price list and technical specification )
Online trademanager services: Click Chat Now at the right side of the product picture, contact Cherry now.
Email inquiry services: Click Contact Supplier at the right side of the products picture or go to the bottom of the page to send us Inquiries via email
Other chat tool services: You can also have other chat tools you prefered like Mobile, Telephone, Skype, Whatsapp, viber, or other chat tools because you don't have the upside ways to contact us:
