Home > Products > Pellet Boiler > SZL Double drum 1.4-14MW wood pellet boiler hot water
SZL Double drum 1.4-14MW wood pellet boiler hot water
- Qingdao shanghai. tianjin
- T/T
You May Like
-
Palm husk pellet boiler for palm oil plant
-
SZL Double Drum Coal Fired Hot Water/Steam Boiler
-
6000kg/H Gas Steam Boiler (WNS6-1.25-Q)
-
0.5 ton 1 ton 2 ton 3 ton 4 ton Natural Gas fired steam boiler
-
China supplier 130 bhp 2 ton lpg steam boiler
-
Advanced Techniques DZL Industrial Wood Fired Boiler Boiler 2 ton Per hour
Product Details
Condition | New | Type | Natural Circulation | |
Usage | Industrial | Structure | Water Tube | |
Pressure | Other, 0.7Mpa, 1.0Mpa | Style | Horizontal | |
Fuel | Other, Wood or coal | Place of Origin | Henan, China | |
Brand Name | Yuanda | Model Number | SZL | |
Output | Hot Water | Certification | ISO9001 | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
wood pellet boiler hot water1.SZL Double drum wood pellet boiler hot water
2.wood pellt as fuel, full use of energy
Wood pellet boiler hot water
SZL Double drum 1.4-14MW wood pellet boiler hot water .
- Cap: 0.7-14MW
- Fuel: wood pellet, rice husk etc. and coal
- Pressure: 1.0Mpa, 1.25Mpa, 1.6Mpa, 2.5Mpa
- Type: Horizontal
- Contact: Susan Zhu
SZL double drum wood pellet boiler hot water Features:
1. Double drum horizontal structure, just require minimum space for simple installation
2. Larger hearth, lower coal requirements, strengthen heating efficiency
3. Higher dust filtering efficiency
4. Applied high pressure air compartment

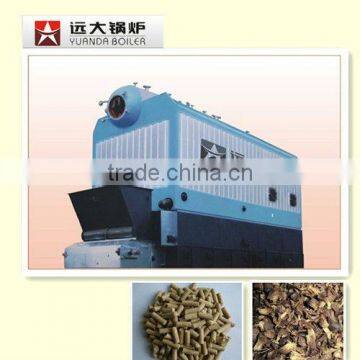

From this pic, we can see it is a typical water tube boiler, two drum and water tube placed in D-shape, so the combustion space is very large, and it also have a independent cyclone reburning room, this can make the feul burning sufficiently
Our Advantage:
Fast package, that is to say the main frame and grate is combined toghther when it leave our factory, easy delivery and installation, this is our main advantage, especially for the 5.6MW hot water double drum boiler, only we can do this
Dual purpose, can use coal or boimass as fuel. energy saving and environmental
Double drum, bias hearth, make a large combustion space.
Typical water tube, thermal efficiency
Quality assurance:
Can also send technician to help installation and operation.
ISO 9001 certification
AAA company
Warranty
One-year warranty and full-life services with many considerate policies
Spare Services:
A full range of original equipment spares is immediately available for all Yuanda boilers
The cyclone reburning room
SZL series hot water boiler technology parameter table
Boiler model | Rated thermal power | Water pressure rated | Rated outlet temperature | Rated the return water temperature | Grate effective area | Design efficiency | Coal consumption | Transportation weight of maximum package | Transportation dimensions of maximum package | Delivery mode |
MW | MPa | °C | °C |
| % | Kg/h | t | mm | ||
SZL1.4-0.7/95/70-AII | 1.4 | 0.7 | 95 | 70 | 3.1 | 81.6 | 210 | 20 | 5960×2960×3462 | Fast |
SZL2.8-0.7/95/70-AII | 2.8 | 0.7 | 95 | 70 | 4.6 | 81.6 | 420 | 28 | 6510×3130×3462 | Fast |
SZL4.2-1.0/115/70-AII | 4.2 | 1.0 | 115 | 70 | 7.3 | 81.6 | 630 | 38 | 7830×3346×3462 | Fast |
SZL5.6-1.0/115/70-AII | 5.6 | 1.0 | 115 | 70 | 10.4 | 81.8 | 838 | 52 | 8200×3346×3462 | Fast |
SZL7-1.0/115/70-AII | 7.0 | 1.0 | 115 | 70 | 11.8 | 82 | 1045 | 68 |
More information, donot hesitate to contact susan: TEL: 8613523455815 Skype: susan868286
