Bearing of Bridge for Sale

Specifications

Accord with JT/T663-2006.

bearing of  bridge:

 Bearing of bridge is made of multilayer natural rubber and sheet steel after inlay, conglutinate, vulcanization. Plate Type
Rubber Bridge Bearing has enough vertical stiffness to support vertical load, and it could deliver the pressure of
superstructure to abutment.

Features of bearing of bridge:

1. Our Plate Type Rubber Bridge Bearing has good elasticity to adapt to turning of beam end.

2. Our Plate Type Rubber Bridge Bearing has bigger shearing deformation to content horizontal displacement of superstructure. 3. Our Plate Type Rubber Bridge Bearing has simple structure, easy installation, saving steels, low price, easy and convenient conservation and change and so on.

bearing of bridge Divided into the following according to bearing structural type:

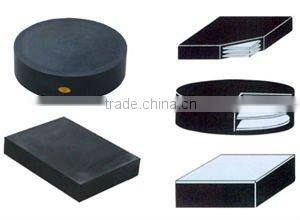

(a) Common Plate Type Rubber Bridge Bearing is divided into rectangular Plate Type Rubber Bridge Bearing (code name GJZ) and circular Plate Type Rubber Bridge Bearing (code name GYZ);

(b)PTFE Plate Type Rubber Bridge Bearing is divided into rectangular PTFE Plate Type Rubber Bridge Bearing (code name GJZF4) and circular PTFE Plate Type Rubber Bridge Bearing (code name GYZF4).

bearing of bridge Divided into the following according to bearing material and applicable temperature:

(a) Normal temperature Plate Type Rubber Bridge Bearing: It should be made of chloroprene rubber (CR), applicable temperature -25ºC~60ºC. Natural rubber cannot replace chloroprene rubber, and natural rubber cannot be mixed in
chloroprene rubber.

(b) Cold-resistant Plate Type Rubber Bridge Bearing: It should be made of natural rubber (NR), applicable temperature -40ºC~60ºC.

Structure of bearing of bridge:

 Plate Type Rubber Bridge Bearing is made of multiple layers of rubber sandwiched with and bound to thin steel sheets, and then through vulcanization. The vertical rigidity of the Plate Type Rubber Bridge Bearing is sufficient to bear the perpendicular load and to shift the pressure reliably from the superstructure to the piers. The elasticity of the Plate Type Rubber Bridge Bearing is high enough to suit the rotation of the beam end. The shear deformation of the Plate Type Rubber Bridge Bearing is sufficient to cope with the horizontal displacement of the superstructure.
