Permanent Load-bearing Biaxial Geogrid
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Baoli or OEM | |
| Model Number | BL-040 | Material | Other, Plastic, Plastic |
Product Description
Specifications
To reinforce permanent bearable base of roads and railways, embankment, slopes, tunnel, airways, parks, docks and ground...Specifications
Permanent Load-bearing Biaxial Geogrid
made by polypropylene as the raw material
through special extruded & biaxial.
offer OEM service
Specification & index:
Specification |
| TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 |
Index | unit | MD CD | MD CD | MD CD | MD CD |
true initial modulus in use | KN/m | 15 15 | 20 20 | 30 30 | 40 40 |
true tensile strength @2% strain | KN/m | 5 5 | 7 7 | 11 11 | 16 16 |
true tensile strength @5% strain | KN/m | 7 7 | 14 14 | 21 21 | 32 32 |
junction efficiency | % | 100 | 100 | 100 | 100 |
flexural stiffness | mg-cm | 280,000 | 780,000 | 900,000 | 1,200,000 |
aperture stability | kg-cm/deg | 3.1 | 4.8 | 4.3 | 3.4 |
resistance to installation damage | %SC/%SW/%GP | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 |
resistance to long term degradation | % | 100 | 100 | 100 | 100 |
unit weight | g/m2 | 250-310 | 270-330 | 340-420 | 430-530 |
rolls dimensions (length, width) | m | 50*3.9 | 50*3.9(5) | 50*3.9 | 50*3.9 |
loading capacity | rolls/40HC | 205 | 180 | 120 | 88 |

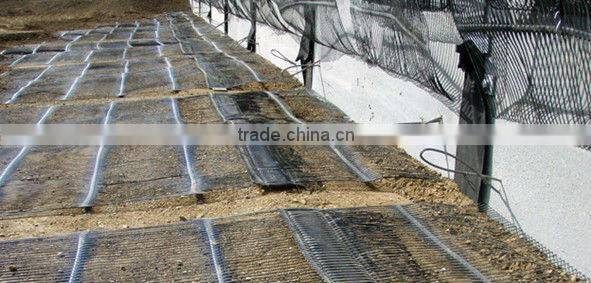

Application:
Permanent Load-bearing Biaxial Geogrid can be used to enhancement of permanent bearable soft including highway and railways embankment, slopes, tunnel, airport, parking lots, loaded pier and ground and their main usage are as follows:
1. enhance the bearing capacity fo road foundation and extend the duration of highway.
2. prevent highway surface from collapse, crack and being dirty.
3. be convenient for construction timesaving and cut down the cost of maintenance.
4. prevent tunel from crack occuring
5. further solidity slopes to proof water and soil from losses
6. reduce the surface thickness of the ground.
7. consolidate the net for growing grass on the slopes
so as to stabilization surrounding virescence.
8. be used for artificial top net of mines instead of metal ones.
It is of flame retardant and antistatics.
