1.Introduction of Hot Water Output and District heating, industrial applications Usage Boiler

It is a kind of one-drum, vertical, three pass, water-fire tube boiler. This series adopt lots of new technology, such as use  convex tube plate, wing-shape flue, spirally corrugated tube and so on. The water tubes in the two sides of the furnace is radiation heating surface, and the wing-shape flue and spirally corrugated tube are convection heating surface.

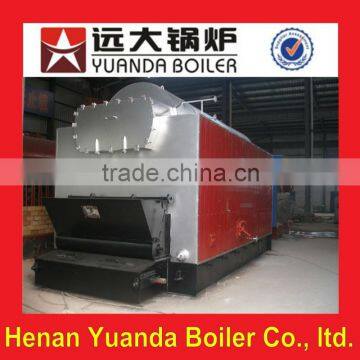

2. Product show of Hot Water Output and District heating, industrial applications Usage Boiler

3. Technical datasheet of  Hot Water Output and District heating, industrial applications Usage Boiler

4. Advantages of  Hot Water Output and District heating, industrial applications Usage Boiler

1)Spirally corrugated tube

Purpose:save steel and avoid fouling; increase flexibility and prevent cracking of tube plate.

2)Wing-shape flue

Purpose:reduce heat load of boiler bottom to prevent cracking and bulge of tube plate

3)Convex tube plate

Purpose:prevent cracking of tube plate;cancel tension brace piece;simplify the structure.

4) Backwater lead to high temperature tube plate

Purpose:prevent cracking of tube plate

 5) Simple circulation loop, big size down pipe and bottom container.

Purpose:prevent the explosion of pipe and increase the reliability of water circulation.

6) Injection tube

Purpose:prevent the explosion of pipe and increase the reliability of water circulation.

7). Smoke separation room

Purpose:reduce original concentration of smoke emission

8).Self support

Purpose: save steel

9).new type arch

Purpose: Improve burning efficiency

10).Optimally designed CAD

Purpose:improve the economy.
