YH Factory Sale Highway Noise Barrier,sound Barrier Wall and so on .
- Tianjin Port
- T/T L/C D/P D/A
You May Like
-
Factory Sale Highway Noise Barrier,sound Barrier Wall,acoustic Barrier YH
-
Noise Barriers/sound Barrier Wall Factory Noise Barriers
-
Anping YUHAI Highway Noise Birriers
-
Factory Sale Highway Noise Barrier,sound Barrier Wall,acoustic Barrier
-
Good Quality Galvanized Steel Highway Noise Barrier/sound Barrier for Wholesale (China Manufacturer)
-
China Hottest Sale High Quality Welded Galvanized Wire Mesh Security Fence With More Than 18 Years Experience Factory
Product Details
| Place of Origin | Hebei, China | Material | Galvanized Steel Wire | |
| Type | Other, noise barriers | Application | Other, noise barriers | |
| Weave Style | Other | Wire Diameter | as your requirement | |
| Technique | Perforated | Model Number | various | |
| Brand Name | YH |
Product Description

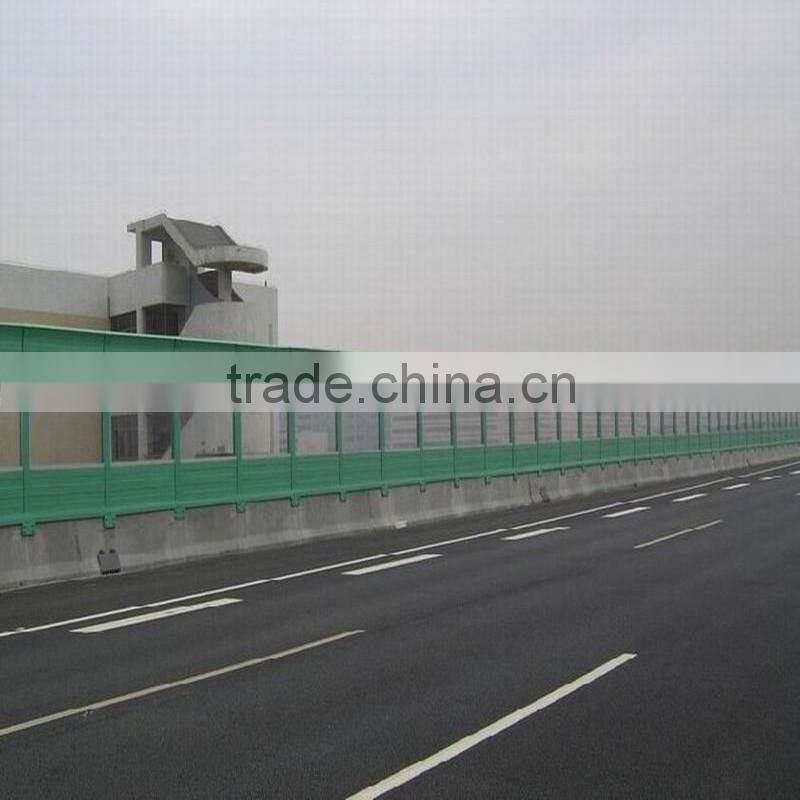

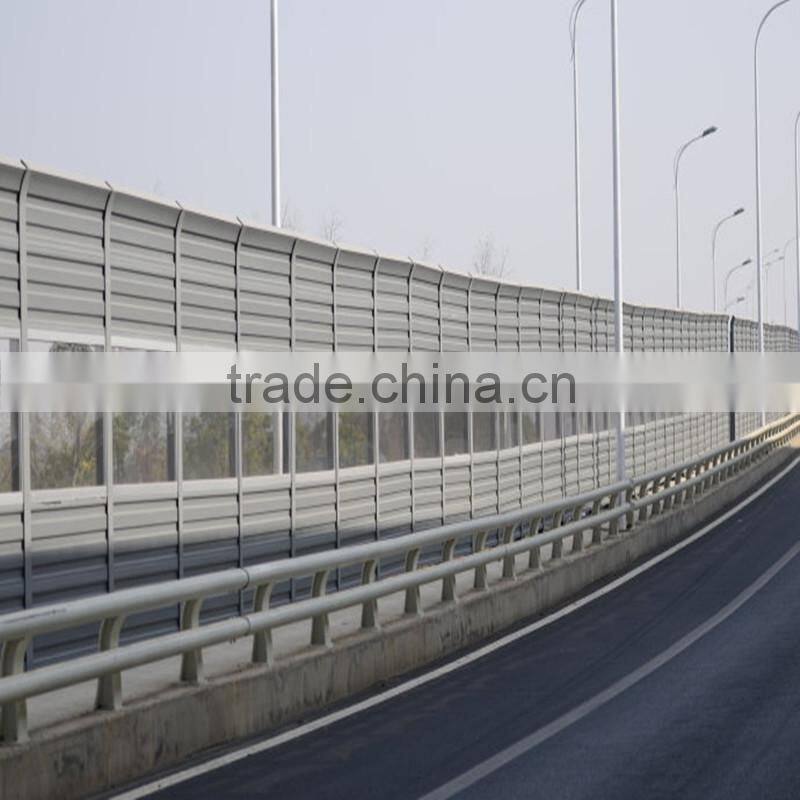

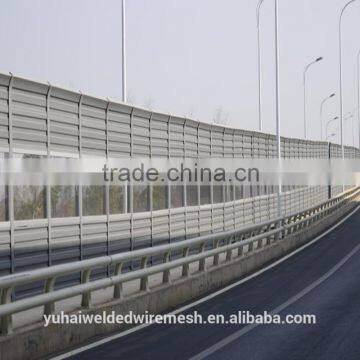

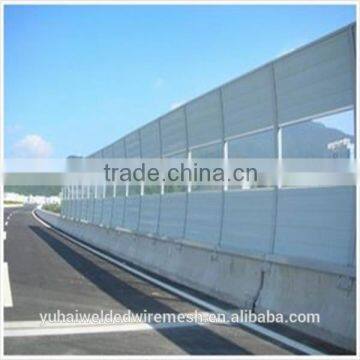

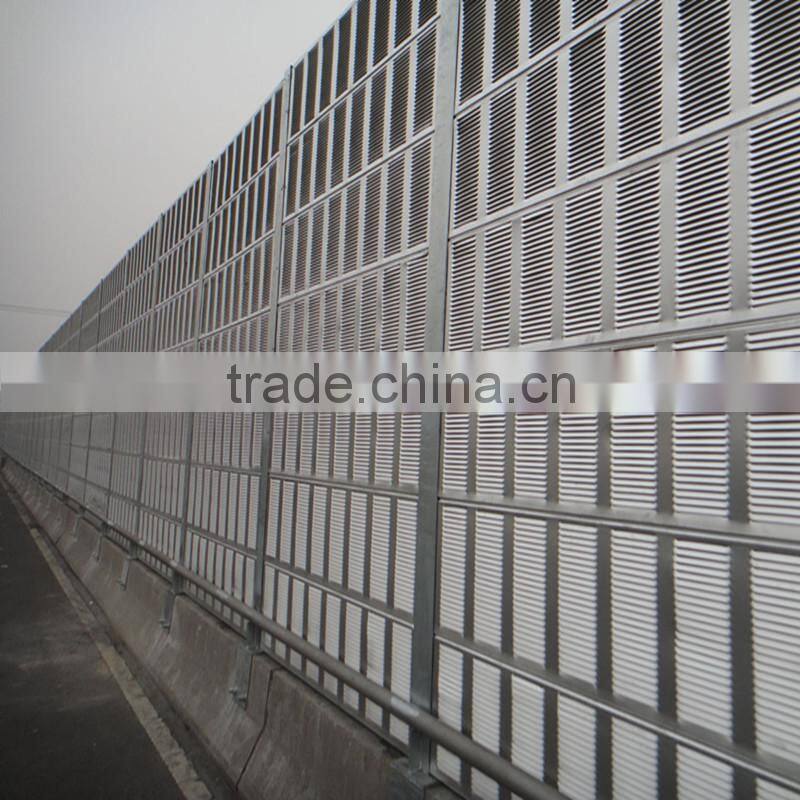

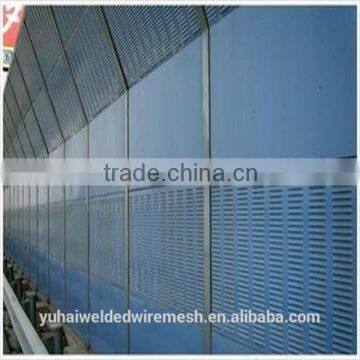

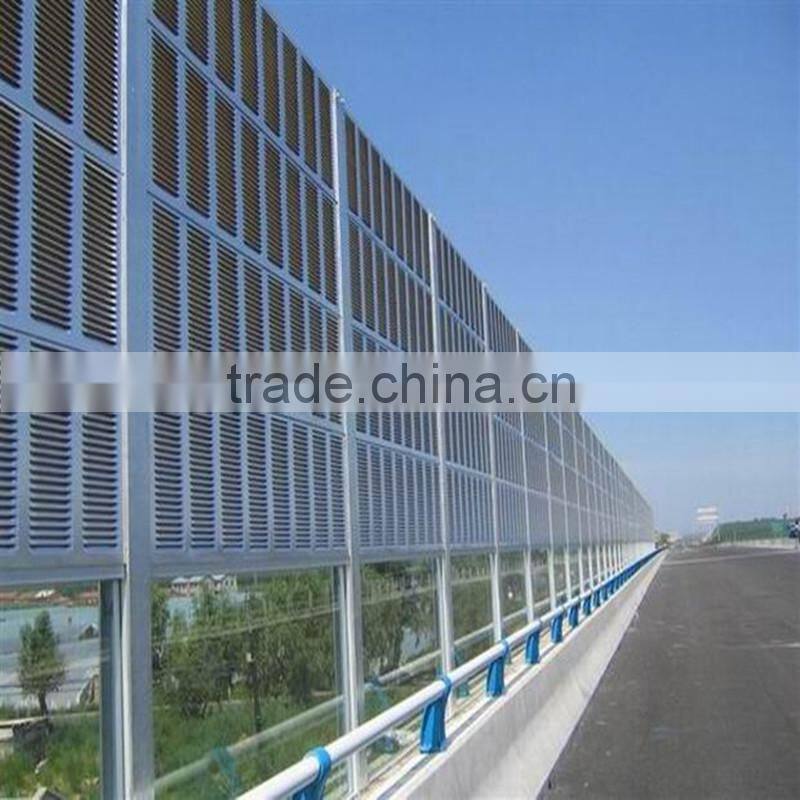

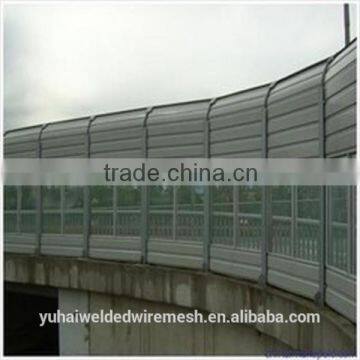

Sound barrier also named sound barrier wall or noise barrier wall,is widly used in Highways,High speed railways,Subways' exit,Work places,bridges, Cooling tower sound barrier etc.
Our factory has 7 years experience in manufacturing noise barriers,We can do as our clients requiremets.
1.Specification of sound barrier plastic panel
1.Material: PC Acrylic board,Plastic panle, steel sheet or aluminium sheet
2.Inner material:Glass wool
3.Sheets thickness:0.8-1mm,but we can also design as our clients request.
4.Panel size:Width-500mm,Length2000mm is standard size ,the panel can be longer ,but no more than 4meters.
Specification sheet of Sound barrier
| Material | Width | Length | Thickness |
Acrylic board :PE PMMA resin Frame material : Aluminum Alloy | 100mm-1500mm | 2000-2500mm | 8mm-10mm Frame: 70mm-100mm |
Metal sheet :aluminiun steet or galvanized steel sheet
Inner Material:Glass wool
| 500mm-1000mm
| 2000mm-4000mm | 70mm-100mm |
Sound barrier post bottom load design value:
Wind pressure vaiue(kN/m2) | Height | Vertical force N (kN) | Horizontal force Sva (kN) | Mbending moment M (kN*m) |
w.≤0.45 | 2.0 | 1.70 | 9.1 | 9.4 |
2.5 | 2.64 | 11.4 | 14.7 | |
3.0 | 3.30 | 13.7 | 21.1 | |
3.5 | 4.28 | 16.0 | 28.6 | |
4.0 | 4.92 | 18.3 | 37.3 | |
0.45<w.≤0.75 | 2.0 | 1.85 | 15.2 | 15.8 |
2.5 | 2.90 | 19.0 | 24.5 | |
3.0 | 3.62 | 22.8 | 35.1 | |
3.5 | 4.32 | 26.7 | 47.7 | |
4.0 | 5.40 | 3.0.5 | 62.1 |
