din 73379 1/8''-1'' truck parts braided fuel hose with double walled
- ningbo/shanghai for braided fuel hose
- T/T D/P D/A Credit Card
You May Like
-
iso/ts 16949 1/8 inch manufacturer high pressure power steering hose
-
yute brand id 1 inch diesel fuel hose for fuel systems
-
yute brand black 10mm smooth oil hose with sae j30 r9
-
RED 300 psi 3/8 inch used for compresion air system epdm rubber hose
-
car wash tools wp 300 psi 6mm 1/4 inch fiber reinforced epdm hose
-
high pressure 5/16" x 100' flexible gas hose for cylinder filling machine
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YUTE | |
| Model Number | DIN |
Product Description

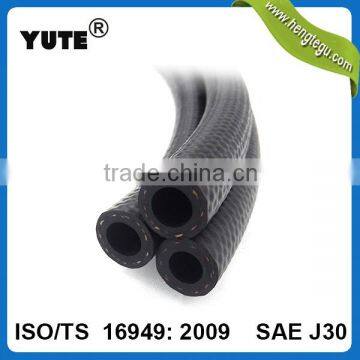

din 73379 1/8''-1'' truck parts braided fuel hose with double walled
Specifications( braided fuel hose ) | |
Tube: Fuel and oil resistant smooth bore
Reinforcement: High tensile braided textiles
Cover: Resistant to chemical attack or swelling by gasoline,oxidized gasoline,E85 gasoline anddiesel fuel | Standard: SAE J 30R6/R7/R9/R10 DIN 73379 Type 2A |
Marking: Manufacture’s identification/Fuel hose/Size/Standard/W.P and B.P | |
Working Temperature: -40℃~ +120℃ (-40 F ~ +248F) | |
Packaging: 20 meters/roll or according to customer’s requirements | |
Applications: Designed for conveying gasoline E-85 gasoline,diesel and bio-diesel fuel in Automobile industry | |
Sizes and performance parameters :
NO | I.D | Refer to O.D | Working pressure | Burst pressure | approximate Weight | |||||
(inch) | (mm) | (inch) | (mm) | MPa | Psi | MPa | Psi | kg/m | lbs/ft | |
1 | 1/8 | 3.2±0.2 | 0.35 | 9±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.078 | 0.12 |
2 | 5/32 | 4±0.2 | 0.4 | 10±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.092 | 0.14 |
3 | 3/16 | 4.8±0.2 | 0.43 | 11±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.108 | 0.16 |
4 | 1/4 | 6.3±0.3 | 0.5 | 12.7±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.134 | 0.2 |
5 | 5/16 | 8.0±0.3 | 0.56 | 14±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.147 | 0.22 |
6 | 3/8 | 9.5±0.3 | 0.63 | 16±0.4 | 2.06 | 300 | 8.27 | 1200 | 0.182 | 0.27 |
7 | 15/32 | 12±0.3 | 0.75 | 19±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.238 | 0.35 |
8 | 1/2 | 12.7±0.4 | 0.78 | 20±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.262 | 0.39 |
9 | 5/8 | 16±0.4 | 0.94 | 24±0.5 | 1.03 | 150 | 4.12 | 600 | 0.351 | 0.52 |
10 | 3/4 | 19±0.4 | 1.13 | 28.8±0.5 | 1.03 | 150 | 4.12 | 600 | 0.515 | 0.77 |
11 | 1 | 25.4±0.5 | 1.38 | 35±0.6 | 1.03 | 150 | 4.12 | 600 | 0.637 | 0.95 |
braided fuel hose
Yuyao City Hengtegu Auto Parts Factory is located in Linshan Town, Yuyao City, Zhejiang Province, from hangzhou international airport 40 kilometers, traffic is very convenient.Integrates development –manufacturer - sales of professional designer &manufacturer of rubber hose , now has more than 60 employees, including technical personnel more than 30% of the total number of employees, annual output of ten million meters of all kinds of rubber hoses.
At present, the products are widely application in Automobile manufacturers - Auto aftermarket - Engineering machinery - Refrigeration - Welding industry, the main products are: fuel hose,brake hose, EPDM air hose, fuel hose,diesel hose, refrigerant charging hose, air conditioning hose and oxygen/ acetylene hose etc.Products are exported to Europe,American and Southeast Asia market, quality and service well received by customers, in 2013 passed the ISO/TS16949:2009 quality management system certification
Q1:Where is the main market in your products? |
A: Europe,South America, North America,Southeast Asia |
Q2:Do you have passed any certificate? |
A: ISO/TS 16949:2009,3C,RoHS |
Q3:How long is the warranty of the braided fuel hose? |
A:The warranty is 5 years. |
1.Free samples can be sent for testing |
2.Accept OEM service and small trail order |
3.Your inquiry related to our products or prices will be replied in 8 hrs |
4. Well-trained and experienced staffs to answer all your inquires in fluent English |
5.Distributorship are offered for your unique design and some our current model and specification |
6.Protection of your sales area ideas of design and all your private information |
