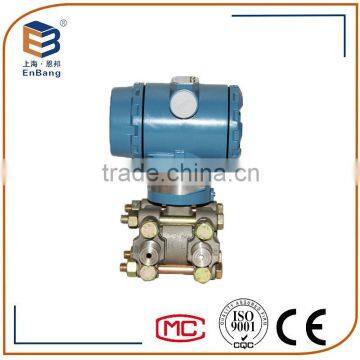

High quality 2-wire 4-20mA output pressure/differential pressure tranmmitter

Note:

EB3351 Series Pressure / Differential Pressure Transmitter has a variety of forms, draw lessons from foreign advanced technology development and manufacturing, with full isolation circuit design technology, can accurately gauge pressure, absolute pressure, differential pressure, flow, vacuum, liquid level and density. This product has been widely used in petroleum, chemical, metallurgy, electric power, textile, food, paper, medicine, machinery manufacturing, scientific experiment and aviation military and other industrial fields.

Characteristic:

High precision, range ratio is 50:1

The range from 160Pa to 40MPa, range, zero, external continuously adjustable.

The process of diaphragm is 316L stainless steel, Hastelloy, tantalum diaphragm, Monel and so on.

No mechanical moving parts, reliable work, strong earthquake resistance, simple maintenance.

A small, light and easy to installation

With the EEPROM, without loss of data when power off

Optional the intelligent and simulation, , can meet various application requirements.

Main Technical Specifications:

Measurement range: 160Pa ~ 40MPa

Output signal: 4 - 20mA; Intelligent 4 - 20mA HART protocol communication

Working voltage: DC 24V, 12 ~ 36VDC, 18.5 ~ 220VDC, AC 50HZ, 45V

Accuracy: 0.1%F.S; 0.2%F.S; 0.5%F.S

Thread interface: M20*1.5 (special specifications can be customized according to customer demand).

Temperature range: -20 ~ 70ºC

Explosion proof grade: ordinary type; flameproof intrinsically safe ExiaIICT6 ExdIIBT4;

Electrical connection: direct lead, explosion-proof connection, terminal (special specification according to customer demand for customized)

1. Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2. We could  send the goods , labeled your brand name, to your customer directly, and also can provide neutral product (without brand and our company information)

3. Through strict quality control system and strong production capacity to provide customers with quality products

4. Your inquiry and problems will be replied in 24 hours by well-trained and experienced staffs;
5. After-sale tracking service for all of our clients;

6. We offer 12 months warranty for all of our products from the shipping date.
7. OEM is available; small quantities, mixed bulk orders are also welcome;

8. We also provide paid repair services for out of the warranty period or other brand products.


Products can be used in lots of industries:
